HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) BRAKE Parts Diagram

Riding Mower, Made in Japan

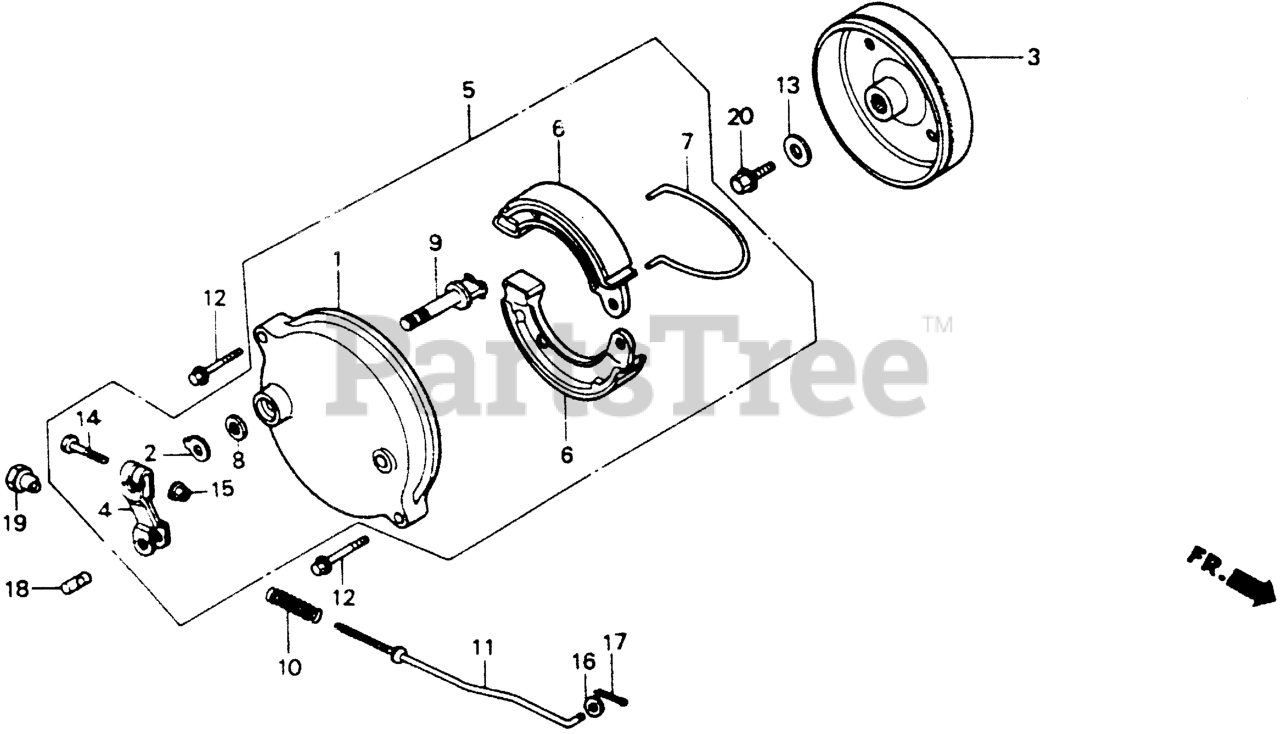

BRAKE Parts Diagram

  • Title

1

Honda 43100-751-000

PANEL, BRAKE

$97.99

$

Usually ships in 3-6 days

0

2

Honda 43145-751-000

INDICATOR, BRAKE

$5.49

$

Usually ships in 3-6 days

0

3

Honda 43210-751-700

DRUM, BRAKE

$67.99

$

Usually ships in 3-6 days

0

4

Honda 43410-751-000

ARM, RR. BRAKE

$22.99

$

Usually ships in 3-6 days

0

5

Honda 43100-763-A40

PANEL ASSY., BRAKE

$182.99

$

Usually ships in 3-6 days

0

6

Honda 45120-147-672

SHOE, FR. BRAKE (NIPPON) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 45133-044-000

SPRING, BRAKE SHOE

$3.49

$

In Stock, only 1 left!

0

8

Honda 45134-165-890

SEAL, BRAKE CAM

$2.49

$

In Stock, only 2 left!

0

9

Honda 45141-147-040

SEE PART DETAILS - PRI; CAM, FR. BRAKE

$17.99

$

Usually ships in 3-6 days

0

10

Honda 47262-750-000

SPRING A, BRAKE ROD

$3.49

$

Usually ships in 3-6 days

0

11

Honda 47275-751-000

ROD C, FOOT BRAKE

$

$

Currently unavailable

12

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$4.49

$

In Stock, Qty 20+

0

13

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0) (Honda Code 0347823).

$12.99

$

Usually ships in 3-6 days

0

14

Honda 92201-05025-0A

BOLT, HEX. (5X25) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

15

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

16

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 1 left!

0

17

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 95015-31001

JOINT A, BRAKE ARM

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95015-41000

NUT A, BRAKE ROD ADJUSTING

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90103-751-700

BOLT, FLANGE (8X20)

$

$

Not available
