HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CHANGE LEVER GUIDE Parts Diagram

Riding Mower, Made in Japan

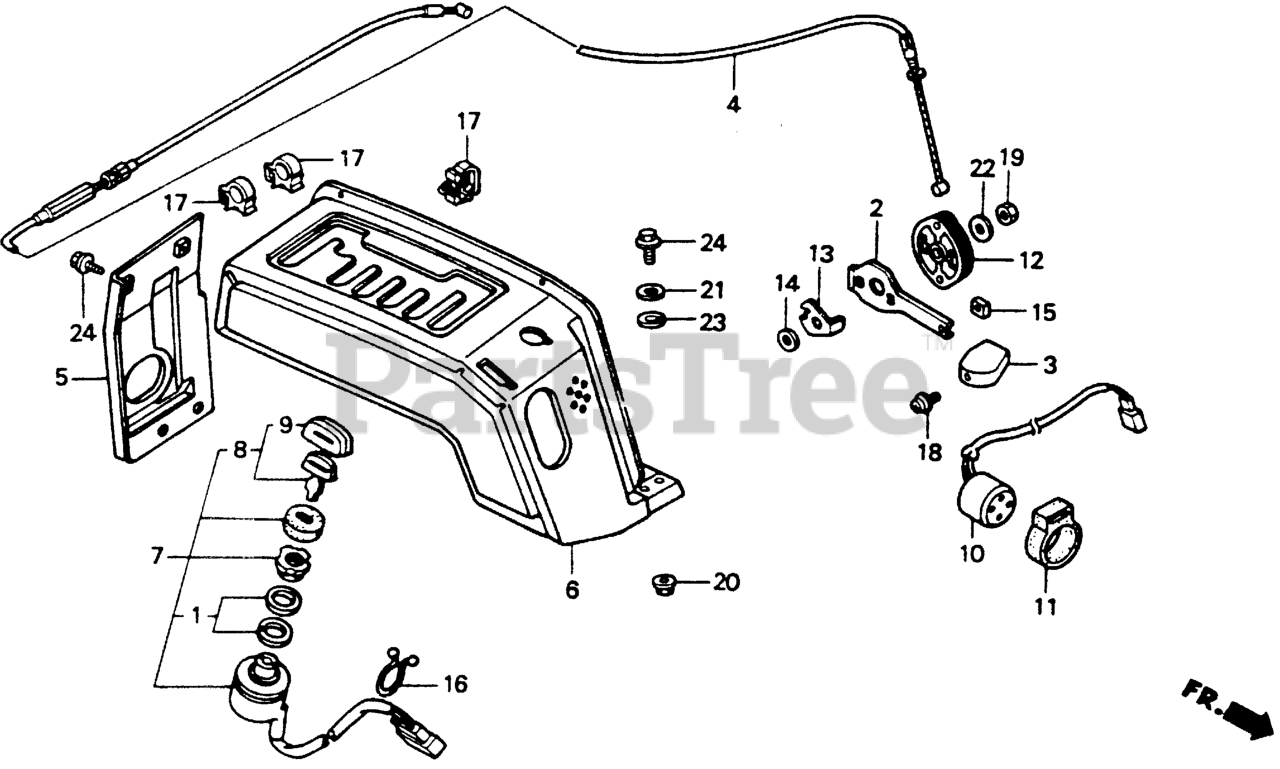

CHANGE LEVER GUIDE Parts Diagram

  • Title

2

Honda 17851-952-010

SEE PART DETAILS - SUP; LEVER, THROTTLE
(Superseded to 17851-750-000)

$

$

Not available

3

Honda 17856-750-000ZA

KNOB, THROTTLE LEVER *NH105* (MAT BLACK)

$

$

Currently unavailable

4

Honda 17910-751-000

CABLE, THROTTLE (NOT AVAILABLE)

$

$

Not available

5

Honda 24136-751-700

STAY, CHANGE GUIDE

$

$

Currently unavailable

6

Honda 24139-751-700

GUIDE, CHANGE LEVER

$

$

Currently unavailable

7

Honda 35100-751-033

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$

$

Not available

8

Honda 35110-VA3-903

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

Note: Use from Frame SN 5115035. Use up to Frame SN 5115034.

$12.99

$

Usually ships in 3-6 days

0

9

Honda 35113-459-730

CAP, KEY

Note: Use from Frame SN 5115035. Use up to Frame SN 5115034.

$8.99

$

Usually ships in 3-6 days

0

10

Honda 38400-751-000

BUZZER, WARNING

$

$

Currently unavailable

11

Honda 38402-GC1-000

SUSPENSION, AUDIBLE PILOT (Honda Code 1704642).

$9.99

$

Usually ships in 3-6 days

0

12

Honda 54226-952-000

REEL, CONTROL CABLE

$12.99

$

Usually ships in 3-6 days

0

13

Honda 54227-952-010

STOPPER, REEL

$8.99

$

Usually ships in 3-6 days

0

14

Honda 90408-KK0-000

WASHER (11MM)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90411-750-000

NUT, SQUARE (4MM)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90651-SB2-003

CLIP, WIRE HARNESS (13MM) (GRAY)

$9.49

$

Usually ships in 3-6 days

0

18

Honda 93892-04008-07

SCREW-WASHER (4X8)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94001-06080-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 0590455).

$1.99

$

In Stock, only 4 left!

0

20

Honda 90301-634-670

NUT, FLANGE (6MM)

$15.99

$

Usually ships in 3-6 days

0

21

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 7

0

22

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

23

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 96001-06016-07

BOLT, FLANGE (6X16)

$1.99

$

Usually ships in 3-6 days

0
