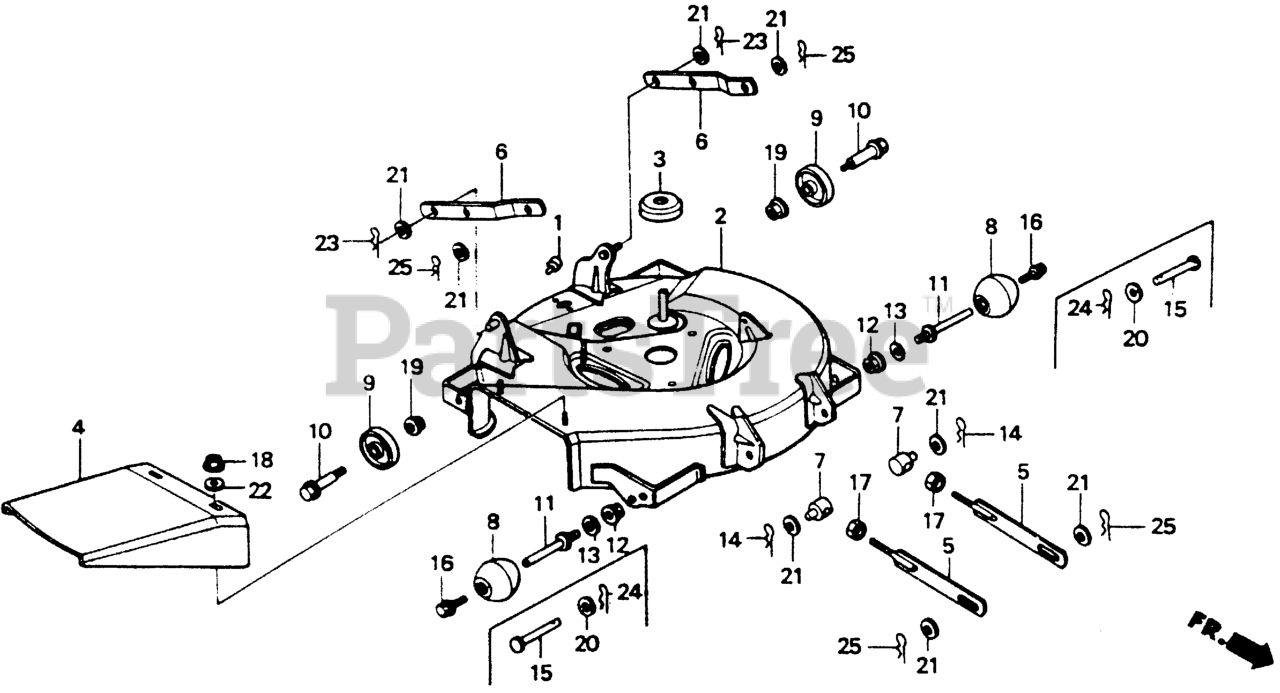

HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) CUTTER HOUSING Parts Diagram

Riding Mower, Made in Japan

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 72701-751-701

RUBBER, STOPPER

$8.99

$

Usually ships in 3-6 days

0

2

Honda 76110-751-A01

HOUSING, CUTTER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76127-751-000

CAP, TENSION ARM

$6.99

$

Usually ships in 3-6 days

0

4

Honda 76150-751-000ZA

ADAPTER, DISCHARGE *NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 76171-751-010

SEE PART DETAILS - PRI; LINK, FR. DECK

$82.99

$

Usually ships in 3-6 days

0

6

Honda 76172-751-000

LINK, RR. DECK

$

$

Currently unavailable

7

Honda 76185-751-700

PIN, FR. LINK ADJUSTING

$22.99

$

Usually ships in 3-6 days

0

8

Honda 76231-751-701

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$31.99

$

In Stock, only 2 left!

0

9

Honda 76241-751-700

SEE PART DETAILS - SUP; ROLLER, RR. ANTI-SCALP
(Superseded to 76241-751-701)

$36.99

$

In Stock, only 1 left!

0

9

Honda 76241-751-701

SEE PART DETAILS - PRI; ROLLER, RR. ANTI-SCALP

$36.99

$

In Stock, only 1 left!

0

10

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

$17.99

$

In Stock, only 2 left!

0

11

Honda 90108-751-701

SEE PART DETAILS - PRI; SHAFT, ANTI-SCALP ROLLER

$

$

Not available

12

Honda 90306-KF0-003

NUT, FLANGE (12MM)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 90403-751-701

WASHER, SPECIAL (12MM) (NOT AVAILABLE)

$

$

Not available

14

Honda 90702-750-000

PIN, LOCK (2.3MM)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 93406-08012-08

BOLT-WASHER (8X12)

Note: Use up to Frame SN 5110494.

$2.99

$

In Stock, only 2 left!

0

16

Honda 93406-08016-08

BOLT-WASHER (8X16)

Note: Use from Frame SN 5110495.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 94001-12000-0S

SEE PART DETAILS - PRI; NUT, HEX. (12MM)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

19

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$5.49

$

In Stock, Qty 20+

0

21

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.99

$

In Stock, only 2 left!

0

22

Honda 90401-952-770

WASHER, PLAIN (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 94201-40250

PIN, COTTER (4X25)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94252-14000

PIN, LOCK (14MM)

$2.99

$

In Stock, only 2 left!

0
