HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) FRAME Parts Diagram

Riding Mower, Made in Japan

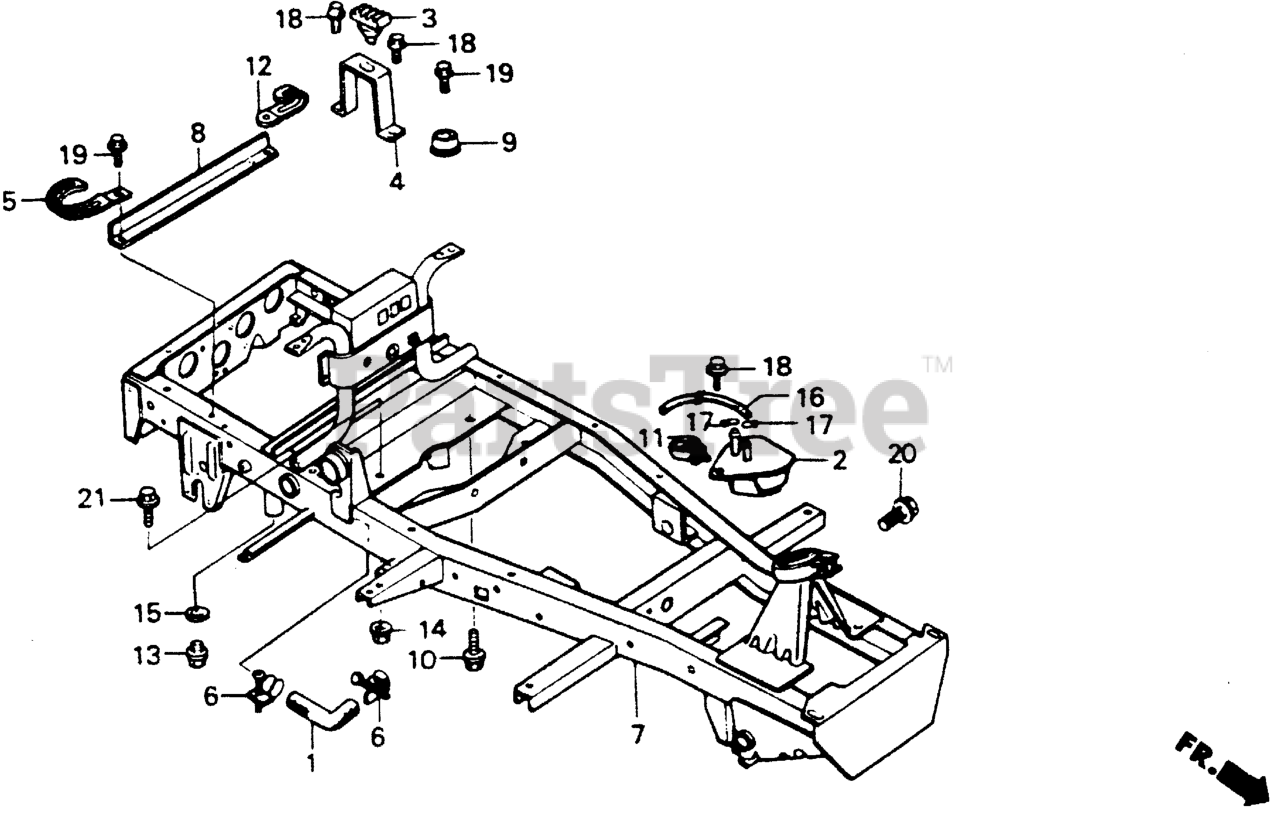

FRAME Parts Diagram

  • Title

1

Honda 15552-751-000

TUBE, OIL DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 17351-751-010

TANK, FUEL CATCH (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 17507-751-000

RUBBER, TANK CUSHION

$

$

Currently unavailable

4

Honda 17508-751-000

STAY, TANK RUBBER

$

$

Not available

5

Honda 32170-443-850

CLIP, WIRE HARNESS

$6.99

$

Usually ships in 3-6 days

0

6

Honda 43514-445-771

CLAMP, MASTER CYLINDER OIL HOSE

$15.99

$

Usually ships in 3-6 days

0

7

Honda 50100-751-700

FRAME

Note: Use up to Frame SN 5102517.

$

$

Not available

7

Honda 50100-751-702

FRAME

Note: Use from Frame SN 5102518.

$

$

Currently unavailable

7

Honda 50100-751-703

FRAME

Note: Use up to Frame SN 5115916.

$

$

Currently unavailable

7

Honda 50100-751-704

FRAME (NOT AVAILABLE)

Note: Use from Frame SN 5115917.

$

$

Currently unavailable

8

Honda 53211-751-700

HOLDER, BATTERY (B)

$

$

Not available

9

Honda 60407-ZA7-000

RUBBER (LOWER) Use from Frame SN 1008046.

$17.99

$

In Stock, only 3 left!

0

10

Honda 90115-751-000

BOLT, FLANGE (5/16"X22)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 91406-657-671

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

13

Honda 92800-12000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12MM) (Honda Code 0053975).

$5.49

$

In Stock, only 3 left!

0

14

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

15

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, Qty 7

0

17

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

19

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, only 2 left!

0

21

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2563260).

$1.99

$

Usually ships in 3-6 days

0
