HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) STARTER MOTOR Parts Diagram

Riding Mower, Made in Japan

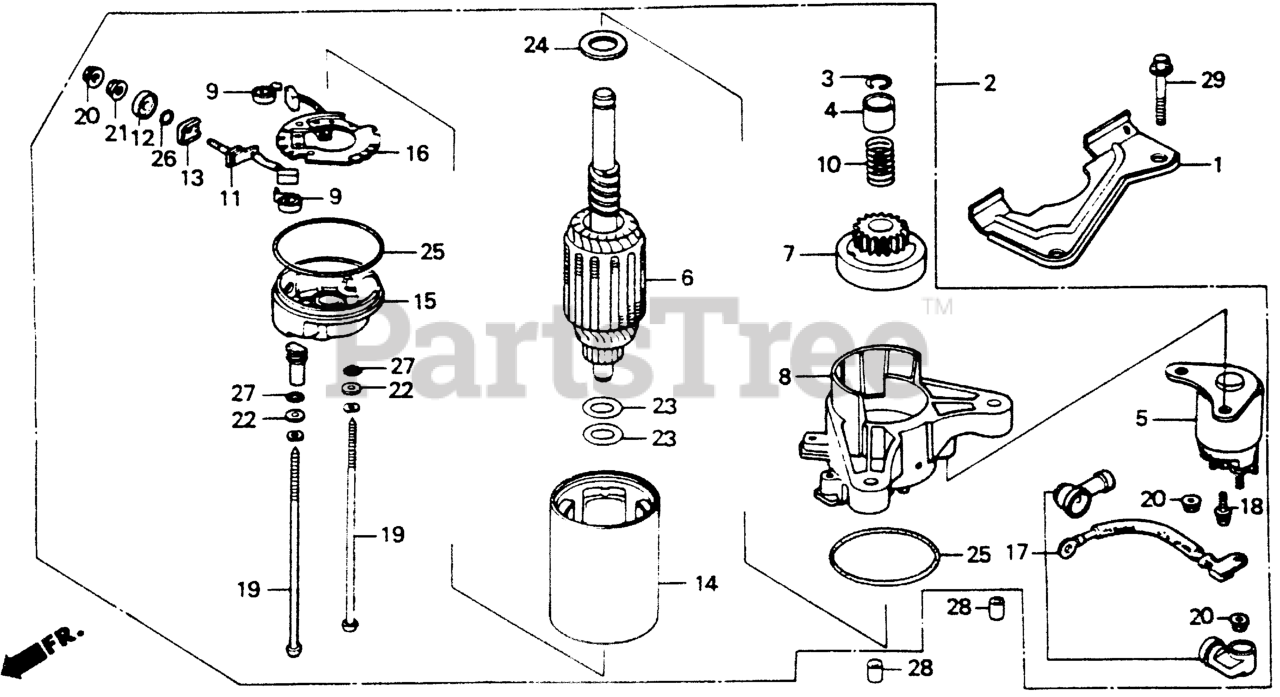

STARTER MOTOR Parts Diagram

  • Title

1

Honda 19611-ZE9-801

SEE PART DETAILS - PRI; PLATE, SIDE (Honda Code 2461747).

$

$

Not available

2

Honda 31200-ZE8-003

MOTOR ASSY., STARTER (Honda Code 2091239).

$614.99

$

Usually ships in 3-6 days

0

3

Honda 31201-ZA1-003

RING, SNAP (Honda Code 1238195).

$2.49

$

Usually ships in 3-6 days

0

4

Honda 31202-ZA1-003

COLLAR, CLUTCH (Honda Code 1238203).

$19.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

$143.99

$

In Stock, only 1 left!

0

6

Honda 31206-ZA1-003

ARMATURE (Honda Code 1238211).

$205.99

$

Usually ships in 3-6 days

0

7

Honda 31207-ZA1-003

CLUTCH, OVERRUNNING (Honda Code 1238229).

$177.99

$

Usually ships in 3-6 days

0

8

Honda 31208-ZE8-013

HOUSING, DRIVE SIDE (Honda Code 2171247).

$135.99

$

Usually ships in 3-6 days

0

9

Honda 31212-ZA0-700

SPRING, BRUSH (Honda Code 2110260).

$9.99

$

In Stock, only 1 left!

0

10

Honda 31212-ZE8-003

SPRING (Honda Code 2278984).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 31215-ZA1-013

BRUSH (Honda Code 2059608).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 31216-ZA1-013

BUSHING, INSULATION (Honda Code 2059616).

$7.99

$

Usually ships in 3-6 days

0

13

Honda 31217-ZA1-013

BUSHING, INSULATION (Honda Code 2059624).

$12.99

$

Usually ships in 3-6 days

0

14

Honda 31218-ZA1-013

YOKE (Honda Code 2059632).

$150.99

$

Usually ships in 3-6 days

0

15

Honda 31219-ZE8-003

FRAME, STARTER END (Honda Code 2091254).

$55.99

$

Usually ships in 3-6 days

0

16

Honda 31231-ZA1-003

SEE PART DETAILS - PRI; PLATE, BRUSH HOLDER

$31.99

$

Usually ships in 3-6 days

0

17

Honda 31232-ZE8-003

WIRE, WATER COVER (Honda Code 2278992).

$13.99

$

Usually ships in 3-6 days

0

18

Honda 93892-05014-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X14) (Honda Code 0660720).

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90102-ZA1-003

BOLT, THROUGH (Honda Code 1412428). (NOT AVAILABLE)

$

$

Not available

20

Honda 90201-ZA1-003

NUT (Honda Code 1412436).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90202-ZA1-003

NUT (Honda Code 1412444).

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90401-ZA1-003

WASHER, STEEL PLATE (Honda Code 1412451).

$

$

Currently unavailable

23

Honda 90402-ZA1-003

SEE PART DETAILS - SUP; WASHER

$

$

Currently unavailable

24

Honda 90403-ZA1-003

WASHER (Honda Code 1412477).

$3.49

$

Usually ships in 3-6 days

0

25

Honda 91301-ZA1-003

O-RING

$

$

Currently unavailable

26

Honda 91302-ZA1-013

O-RING (Honda Code 2060382).

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91303-ZA1-003

O-RING (Honda Code 1412501).

$3.49

$

Usually ships in 3-6 days

0

28

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

29

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0
