HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) TRANSMISSION CASE Parts Diagram

Riding Mower, Made in Japan

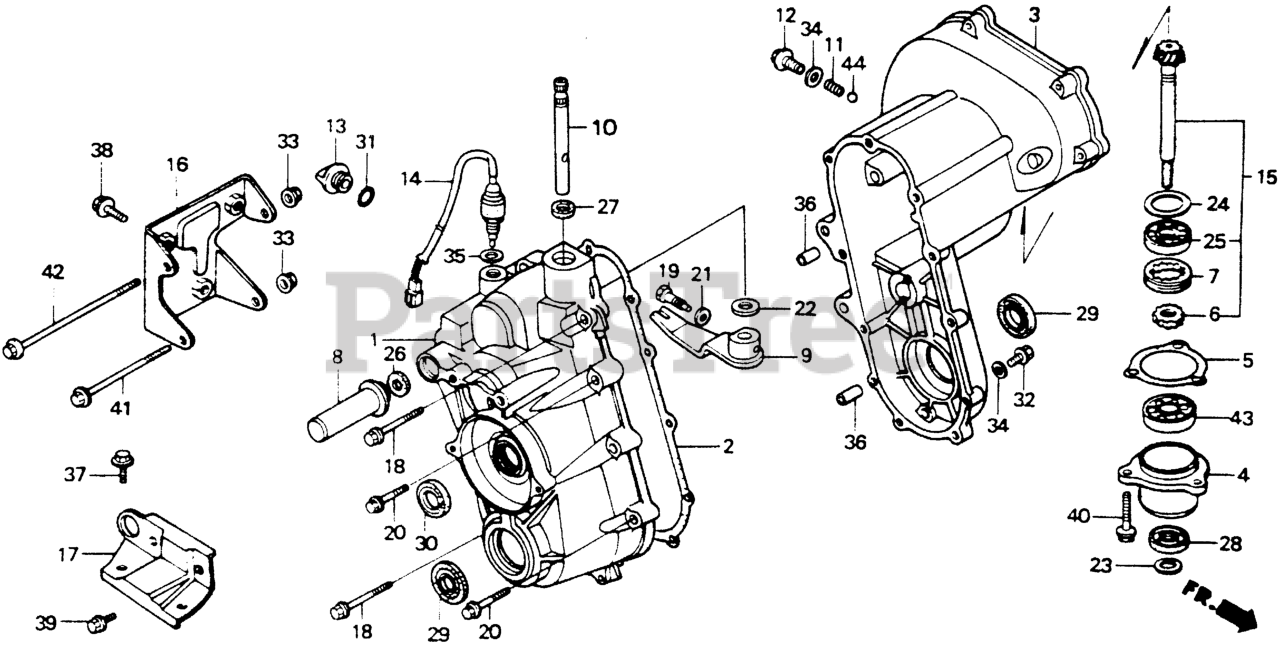

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21100-751-700

CASE, R. TRANSMISSION

$

$

Not available

2

Honda 21115-751-000

GASKET, TRANSMISSION CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 212A0-751-700

CASE, L. TRANSMISSION

$

$

Not available

4

Honda 21210-751-700

HOLDER, INPUT SHAFT

$

$

Not available

5

Honda 21211-751-000

GASKET, INPUT SHAFT HOLDER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 21212-750-000

NUT, LOCK (22MM)

$16.99

$

Usually ships in 3-6 days

0

7

Honda 21213-751-000

NUT, LOCK (48MM)

$27.99

$

Usually ships in 3-6 days

0

8

Honda 21511-751-000

COVER, FORK SHAFT

$

$

Not available

9

Honda 24121-751-000

ARM, CHANGE SHIFT

$

$

Not available

10

Honda 24131-751-000

SHAFT, SHIFT CHANGE

$

$

Not available

11

Honda 24452-PB6-020

SPRING A, BALL SETTING

$5.99

$

Usually ships in 3-6 days

0

12

Honda 24519-PB6-000

SCREW, BALL SPRING SETTING

$13.99

$

Usually ships in 3-6 days

0

13

Honda 25611-733-000

CAP, OIL

$8.49

$

Usually ships in 3-6 days

0

14

Honda 35600-751-003

SWITCH ASSY., NEUTRAL (NOT AVAILABLE)

$

$

Not available

15

Honda 41210-751-010

SHAFT, INPUT

$

$

Not available

16

Honda 50133-751-700

STAY A, TRANSMISSION

$

$

Not available

17

Honda 50134-751-000

STAY B, TRANSMISSION

$

$

Not available

18

Honda 90018-ZG0-000

BOLT, FLANGE (6X42)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90029-611-010

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24)

$12.99

$

Usually ships in 3-6 days

0

20

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

21

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 90451-035-900

WASHER, THRUST (14MM) (NA USE ALT:90451-PC9-000)

$

$

Currently unavailable

23

Honda 90456-155-000

WASHER (17MM)

$6.99

$

Usually ships in 3-6 days

0

24

Honda 90510-751-000

SHIM A, PINION GEAR (36X43.5X1.25)

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 90511-751-000

SHIM B, PINION GEAR (36X43.5X1.30)

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 90512-751-000

SHIM C, PINION GEAR (36X43.5X1.35)

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 90513-751-000

SHIM D, PINION GEAR (36X43.5X1.40)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 90514-751-000

SHIM E, PINION GEAR (36X43.5X1.45)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 90515-751-000

SHIM F, PINION GEAR (36X43.5X1.50)

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 90516-751-000

SHIM G, PINION GEAR (36X43.5X1.55)

Note: (Optional)

$

$

Not available

24

Honda 90517-751-000

SHIM H, PINION GEAR (36X43.5X1.60)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 90518-751-000

SHIM I, PINION GEAR (36X43.5X1.65)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 90519-751-000

SHIM J, PINION GEAR (36X43.5X1.70)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 90520-751-000

SHIM K, PINION GEAR (36X43.5X1.75)

Note: (Optional)

$

$

Not available

25

Honda 91003-751-701

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22) (TMB)

$

$

Not available

26

Honda 91201-965-000

SEE PART DETAILS - PRI; OIL SEAL (12X22X5)

$5.99

$

Usually ships in 3-6 days

0

27

Honda 91201-434-003

OIL SEAL (14X20X3.2)

$5.99

$

Usually ships in 3-6 days

0

28

Honda 91202-751-701

OIL SEAL (20X38X8)

$9.99

$

Usually ships in 3-6 days

0

29

Honda 91203-751-003

OIL SEAL (20X38X10)

$13.99

$

In Stock, only 1 left!

0

30

Honda 91204-751-003

OIL SEAL (20X31X7)

$10.99

$

Usually ships in 3-6 days

0

31

Honda 91303-800-000

O-RING (16MM) (Honda Code 0065094).

$2.99

$

Usually ships in 3-6 days

0

32

Honda 92800-12000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12MM) (Honda Code 0053975).

$5.49

$

In Stock, only 3 left!

0

33

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

34

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

35

Honda 94109-14000

WASHER, DRAIN PLUG (14MM) (Honda Code 0171876).

$0.99

$

In Stock, Qty 20+

0

36

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 14

0

37

Honda 95701-08014-07

BOLT, FLANGE (8X14)

$1.49

$

In Stock, Qty 8

0

38

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 4 left!

0

39

Honda 95701-08020-07

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

Usually ships in 3-6 days

0

41

Honda 95800-08080-00

BOLT, FLANGE (8X80)

$

$

Currently unavailable

42

Honda 95800-08125-00

BOLT, FLANGE (8X125)

$3.99

$

Usually ships in 3-6 days

0

43

Honda 91102-GE1-711

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204) (TOYO)

$24.99

$

Usually ships in 3-6 days

0

44

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
