HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) HT-R3009CUTTER HOUSING K-K1 Parts Diagram

Riding Mower, Made in Japan

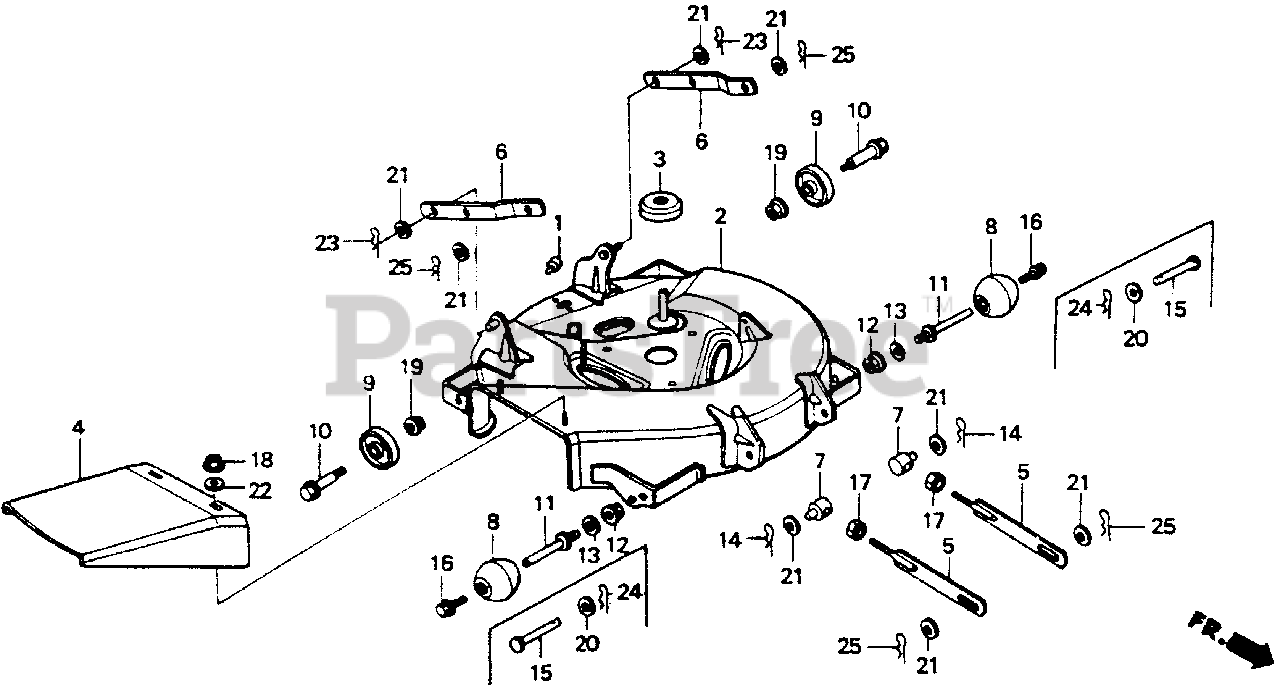

HT-R3009CUTTER HOUSING K-K1 Parts Diagram

  • Title

1

Honda 72701-751-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 76110-751-010

SEE PART DETAILS - PRI; HOUSING, CUTTER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76127-751-000

CAP, TENSION ARM

$6.99

$

Usually ships in 3-6 days

0

4

Honda 76150-751-000

ADAPTER, DISCHARGE

$

$

Currently unavailable

5

Honda 76171-751-000

SEE PART DETAILS - SUP; LINK, FR. DECK
(Superseded to 76171-751-010)

Note: Use up to Frame SN 5003343.

$82.99

$

Usually ships in 3-6 days

0

5

Honda 76171-751-010

SEE PART DETAILS - PRI; LINK, FR. DECK

$82.99

$

Usually ships in 3-6 days

0

6

Honda 76172-751-000

LINK, RR. DECK

$

$

Currently unavailable

7

Honda 76185-750-000

PIN, FR. LINK ADJUSTING

$

$

Not available

8

Honda 76231-751-013

SEE PART DETAILS - SUP; ROLLER, ANTI-SCALP
(Superseded to 76231-751-701)

$31.99

$

In Stock, only 2 left!

0

8

Honda 76231-751-701

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$31.99

$

In Stock, only 2 left!

0

9

Honda 76241-751-003

SEE PART DETAILS - SUP; ROLLER, RR. ANTI-SCALP
(Superseded to 76241-751-701)

$36.99

$

In Stock, only 1 left!

0

9

Honda 76241-751-700

SEE PART DETAILS - SUP; ROLLER, RR. ANTI-SCALP
(Superseded to 76241-751-701)

$36.99

$

In Stock, only 1 left!

0

9

Honda 76241-751-701

SEE PART DETAILS - PRI; ROLLER, RR. ANTI-SCALP

$36.99

$

In Stock, only 1 left!

0

10

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

$17.99

$

In Stock, only 2 left!

0

13

Honda 90403-751-701

WASHER, SPECIAL (12MM) (NOT AVAILABLE)

$

$

Not available

14

Honda 90702-750-000

PIN, LOCK (2.3MM)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90752-751-003

PIN, ANTI-SCALP ROLLER

$

$

Not available

17

Honda 94001-12000-0S

NUT, HEX. (12MM)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 94050-10080

NUT, FLANGE (10MM)

$5.49

$

In Stock, Qty 20+

0

20

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

21

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.99

$

In Stock, only 2 left!

0

22

Honda 90401-952-770

WASHER, PLAIN (8MM) (NOT AVAILABLE)

Note: Use from Frame SN 5003332.

$

$

Currently unavailable

22

Honda 94103-08000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 5003331.

$0.99

$

Usually ships in 3-6 days

0

23

Honda 94201-40250

PIN, COTTER (4X25)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94252-12100

PIN, LOCK (12MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94252-14000

PIN, LOCK (14MM)

$2.99

$

In Stock, only 2 left!

0
