HT02524GNAX - Honeywell 25kW Home Standby Generator (SN: 7317416 - 8388664) (2013) Connection Box Cl Cpl (0H7234) Parts Diagram

25kW Home Standby Generator

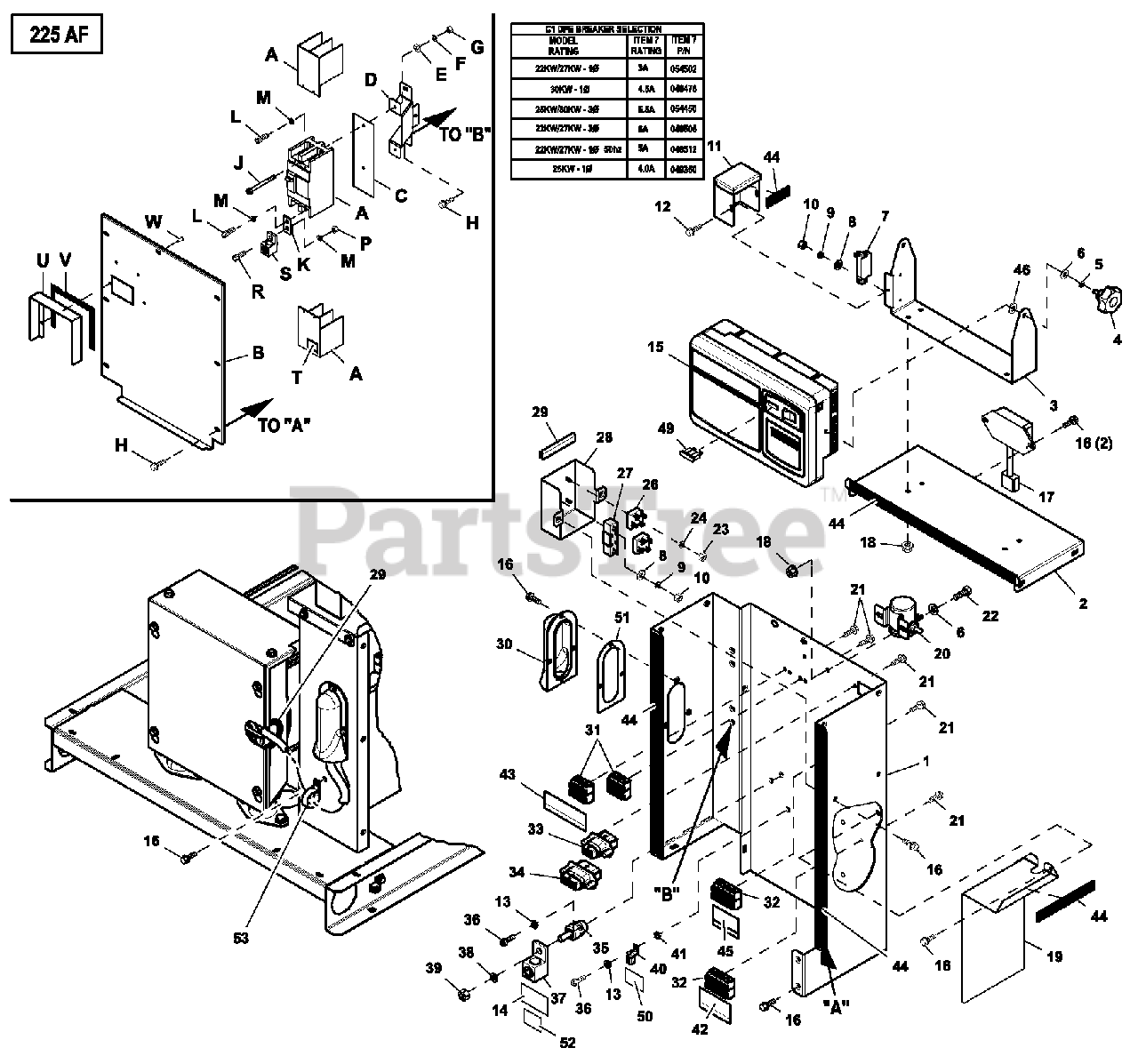

Connection Box Cl Cpl (0H7234) Parts Diagram

  • Title

1

Generac 0H6795

CONBOX BACK/SIDES C1 CPL

$104.99

$

Usually ships in 2-12 days

0

2

Generac 0H6796

CONBOXTOP C1 CPL

$26.99

$

Usually ships in 2-12 days

0

3

0H67330ST0R

BRACKET GIMBAL CONTROL PNL RAW

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

4

Generac 0H7115

KNOB M6-1.0 CONTROL PANEL

$8.49

$

Usually ships in 2-12 days

0

5

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

6

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

7

CIRCUIT BREAKER

Note: SEE "C1 DPE BREAKER SELECTI ON" TABLE.

$

$

Not available

8

Generac 052777

WASHER FLAT M3

$

$

Not available

9

Generac 043182

WASHER LOCK M3
(Superseded to G043182)

$0.99

$

Usually ships in 2-12 days

0

10

Generac 051714

NUT HEX M3-0.5 G8 CLEAR ZINC
(Superseded to G051714)

$0.99

$

In Stock, Qty 8

0

11

0H81040AS0R

COVER DPE BREAKER NEXUS

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

12

Generac 045764

SCREW HHTT M4-0.7 X 8 ZP
(Superseded to G045764)

$0.99

$

In Stock, only 2 left!

0

13

Generac 022264

WASHER LOCK#8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

14

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

15

ASSY CTRL PROGRAMMED

$

$

Not available

16

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

17

Generac 0A1354A

REGULATOR-DC ALT

Note: ITEMS USED ON 1.6L MODELS ONLY.

$115.99

$

Usually ships in 2-12 days

0

18

Generac 0D3700

NUT FLANGE M6-1.0 NYLOK

$7.49

$

Usually ships in 2-12 days

0

19

0H88380ST0R

SHIELD HIGH/LOW C1 RAW

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

20

Generac 056739

RELAY SOLENOID 12VDC PNL MNT
(Superseded to G056739)

$163.99

$

Usually ships in 2-12 days

0

21

Generac 0F5458

SCREW HHSP #10 X 3/8 HI-LOW

$0.99

$

Usually ships in 2-12 days

0

22

Generac 042568

SCREW HHC M6-1.0 X 20 C8.8

$

$

Not available

23

Generac 051716

NUT HEX M5-0.8 G8 CLEAR ZINC
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

24

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

26

Generac 0D7177V

DIODE BRIDGE 1P 35A 1000V

$21.99

$

Usually ships in 2-12 days

0

27

Generac 0F5752F

RES WW 15R 5% 25W QK CONN

$25.99

$

Usually ships in 2-12 days

0

28

Generac 0H6267

COVER VOLTAGE SHIELD

$50.99

$

Usually ships in 2-12 days

0

29

Generac 056326

TRIM VINYL BLACK 1/8GP (3"LG)

$

$

Not available

30

Generac 0G3524

COVER BELL HOUSING CONBOX

$7.99

$

Usually ships in 2-12 days

0

31

Generac 0D7393T

TERM BLOCK 3P UL 12-20AWG

Note: ITEMS INCLUDED WlTH HARNESS P/N 0H6692.

$6.99

$

Usually ships in 2-12 days

0

32

Generac 0D7393U

TERM BLOCK 4P UL 12-20AWG

Note: ITEMS INCLUDED WlTH HARNESS P/N 0H6692.

$14.99

$

Usually ships in 2-12 days

0

33

Generac 0F5376S0AR

MX150L SLRRMNT 22-18 8P W/O GA

Note: ITEMS INCLUDED WlTH HARNESS P/N 0H6692.

$21.99

$

Usually ships in 2-12 days

0

34

Generac 0F5396S0AR

MX150L SLRRMNT 22-18 12P W/OGA

Note: ITEMS INCLUDED WlTH HARNESS P/N 0H6692.

$23.99

$

Usually ships in 2-12 days

0

35

Generac 057073

JUNCTION BLOCK 3/8-16

$

$

Not available

36

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZP

$0.99

$

Usually ships in 2-12 days

0

37

Generac 057329

LUG SLDLSS 350-#6X13/32 AL/CU

$

$

Not available

38

Generac 022237

WASHER LOCK 3/8

$

$

Not available

39

Generac 022241

NUT HEX 3/8-16 STEEL

$

$

Not available

40

Generac 025433

LUG SLDLSS #6-14 X 13/64 CU

$

$

Not available

41

Generac 023762

WASHER LOCK EXT #10 STL

$

$

Not available

42

Generac 0H7292

DECAL CUSTOMER CONTROL CONNECT

$0.99

$

Usually ships in 2-12 days

0

43

Generac 0H7293

DECAL CONBOX TB1 CONNECTIONS

$1.49

$

Usually ships in 2-12 days

0

44

Generac 029289

TAPE ELEC 1/2 FOAM (62" LG)

$

$

Not available

45

Generac 0J0489

DECAL CUSTOMER POWER CONNECT

$1.99

$

Usually ships in 2-12 days

0

46

Generac 0A2115

WASHER NYLON .257

$0.99

$

Usually ships in 2-12 days

0

47

Generac 0F6146

HANG TAG 2 WIRE START (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

48

Generac 0H6692

HARN CONBOX NEXUS (NOT SHOWN)

$272.99

$

Usually ships in 2-12 days

0

49

Generac 0D7178T

FUSE ATO TYPE 7.5AMP (BROWN)

$2.49

$

In Stock, Qty 6

0

50

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

51

Generac 0J6701

GASKET WIRE ENTRY COVER

$

$

Currently unavailable

52

Generac 0H8006

DECAL CAUTION ELEC SHOCK SM

$2.49

$

Usually ships in 2-12 days

0

53

Generac 055934

HOSE CLAMP

$

$

Not available

UL CIRCUIT BREAKER (225AF)

$

$

Not available

A

Generac 0G5249

CB 150A 2 POLE 240V 225AF

$383.99

$

In Stock, only 1 left!

0

B

Generac 0H6846

COVER CB G 225AF C1 CONBOX

$141.99

$

Usually ships in 2-12 days

0

C

Generac 0F8432A

INSULATOR CB 2P 225AF

$14.99

$

Usually ships in 2-12 days

0

D

0G5734

SPRT CIRCUIT BREAKER G 225AF

$

$

Not available

E

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

F

Generac 022264

WASHER LOCK#8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

G

Generac 022471

NUT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 053640

SCREW RHM #8-3 2X3 -1 /4

$

$

Not available

K

Generac 0F8843

BUS BAR 200A LUG ADAPTOR

$29.99

$

Usually ships in 2-12 days

0

L

Generac 049897

SCREW SHC M8-1.25 X 20 G8

$

$

Not available

M

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

P

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

R

Generac 043107

SCREW HHC M8-1.25 X 25 C8.8

$

$

Not available

S

Generac 0F8451

LUG SLDLSS 300 MCM-6 AL/CU

$16.99

$

Usually ships in 2-12 days

0

T

Generac 0G3259

DECAL TERM I NAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

U

0J78230AS0R

SHIELD CB HANDLE CONBOX

$

$

Not available

V

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

W

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available
