HT02524GNAX - Honeywell 25kW Home Standby Generator (SN: 7317416 - 8388664) (2013) Engine Common Parts 2.4l G2 (0H7325) Parts Diagram

25kW Home Standby Generator

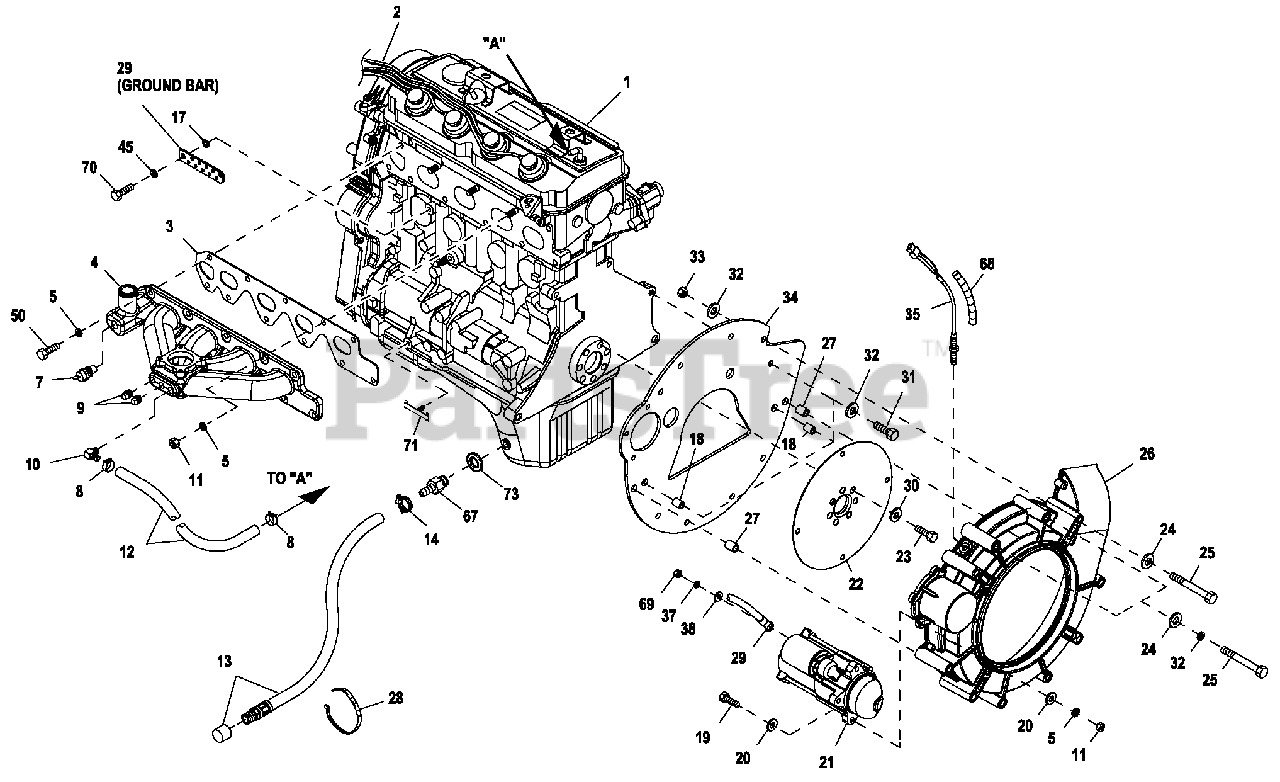

Engine Common Parts 2.4l G2 (0H7325) Parts Diagram

  • Title

1

Generac 0H1619

ENGINE 2.4L G2

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 0G8854

SPARK PLUG WIRE SET 2.4L G2 IG

$129.99

$

In Stock, only 1 left!

0

3

Generac 0G0950

GASKET INTAKE MANIFOLD G2

Note: SUPPLIED WITH E N GIN E

$63.99

$

Usually ships in 2-12 days

0

4

Generac 0G8488

MANIFOLD INTAKE (MA CHINED)

$305.99

$

Usually ships in 2-12 days

0

5

Generac 022129

WASHER LO CK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

7

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8 NPT

$93.99

$

Usually ships in 2-12 days

0

Generac 0E0502

TEMPERATURE SENDER, DELPHI

$53.99

$

Usually ships in 2-12 days

0

8

Generac 048031J

CLAMP HOSE BAND .63

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

9

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

10

Generac 049340

BARBED EL 90 1/4 NPT X 3/8

$

$

Not available

11

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

12

Generac 047290

HOSE 3/8 ID SINGLE BRAID (15" LG)
(Superseded to G047290)

$10.99

$

In Stock, only 1 left!

0

13

Generac 069860C

HOSE OIL DRAIN ASSY 21"

$55.99

$

Usually ships in 2-12 days

0

14

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 3 left!

0

17

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

18

Generac 0G8759A

BUSHING GUIDE 11.3MM LONG

$1.99

$

Usually ships in 2-12 days

0

19

Generac 039287

S CREW HHC M8-1.25 X 45 C8.8

$

$

Not available

20

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

21

Generac 0G7461

MOTOR STARTER

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

22

Generac 0G8364

PLATE FLEX 2.4L 10" ALT

$53.99

$

Usually ships in 2-12 days

0

23

Generac 0G0114

S CREW HHC M12-1.25 X 15 C10.9

Note: APPLY MEDIUM STRE N GTH BLUE LOCKI N G FLUID TO THE THREADS.

$6.49

$

Usually ships in 2-12 days

0

24

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

25

Generac 0G9255

S CREW HHC M10-1.25 X 100 PC8.8

$4.99

$

Usually ships in 2-12 days

0

26

Generac 0G8318A

HOUSING BLOWER MA CHINED 2.4L

$305.99

$

Usually ships in 2-12 days

0

27

Generac 0G8759

BUSHING GUIDE 19.3MM LONG

$2.49

$

Usually ships in 2-12 days

0

28

Generac 029333A

TIE WRAP U L 7.4"X .19" B LK

$0.99

$

Usually ships in 2-12 days

0

29

Generac 0H6689

HARN ENG G2.4L G2 NEXUS (NOT SHOWN)

$1260.99

$

Usually ships in 2-12 days

0

30

Generac 063076

WASHER FLAT .531 ID X 1.062 OD

$

$

Not available

31

Generac 052830

S CREW HHC M10-1.25 X 45 C 8.8

$

$

Not available

32

Generac 0D8427

WASHER LO CKM10 RIBBED ZINC

$0.99

$

Usually ships in 2-12 days

0

33

Generac 046525

NUT HEX M10-1.25 G8 YEL CHR

$

$

Not available

34

Generac 0G8365

ADAPTER ENGINE PLATE 2.4L G2

$336.99

$

Usually ships in 2-12 days

0

35

Generac 0D2244M

ASSY MAGPICKUP (3/8-24 MALE)

Note: APPLY MEDIUM STRE N GTH BLUE LOCKI N G FLUID TO THE THREADS.. FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

37

Generac 022097

WASHER LO CKM6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

38

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

45

Generac 046526

WASHER LO CKM10

$

$

Not available

50

Generac 0A8258

S CREW HHC M8-1.25 X 25 C10.9

$0.99

$

Usually ships in 2-12 days

0

67

Generac 0K3603

ADAPTER DRAIN OIL

$37.99

$

Usually ships in 2-12 days

0

68

Generac 077043H

CO N DUIT FLEX .25"ID (6"LG)

$1.99

$

Usually ships in 2-12 days

0

69

Generac 049813

N UT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

70

Generac 052213

SCREW HHC M10-1.25 X 20 C8.8

$

$

Not available

71

Generac 0F4001E

A N CHOR HAR N ESS

$1.49

$

Usually ships in 2-12 days

0

72

Generac 0F3217

SPACER DC ALTER NATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

73

Generac 057772

WASHER NYLO N .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0
