HT02524GNAX - Honeywell 25kW Home Standby Generator (SN: 7317416 - 8388664) (2013) Engine Common Parts 2.4l G2 (0H7325) Parts Diagram

25kW Home Standby Generator

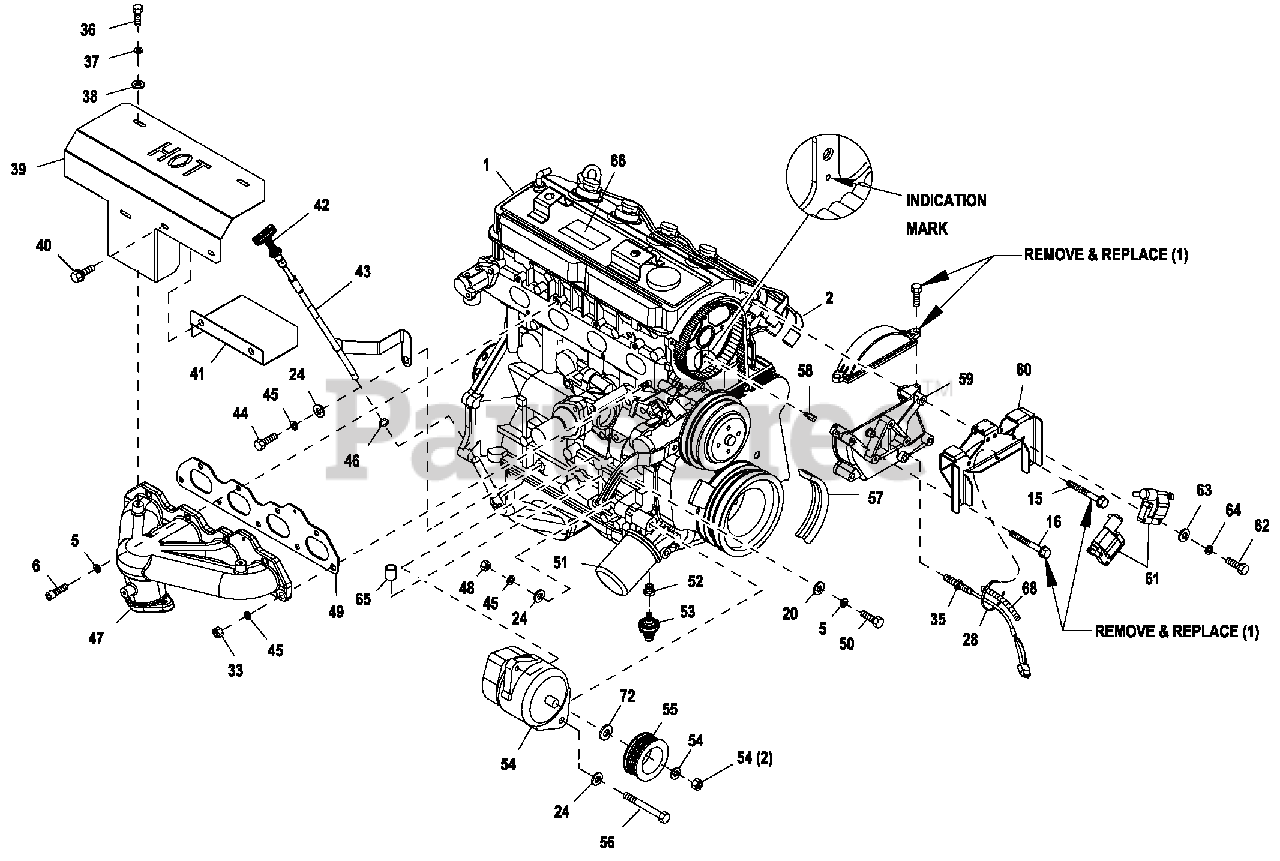

Engine Common Parts 2.4l G2 (0H7325) Parts Diagram

  • Title

1

Generac 0H1619

ENGINE 2.4L G2

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 0G8854

SPARK PLUG WIRE SET 2.4L G2 IG

$129.99

$

In Stock, only 1 left!

0

5

Generac 022129

WASHER LO CK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

6

Generac 058306

SCREW SHC M8-1.25 X 25 C12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

Generac 0E0502

TEMPERATURE SENDER, DELPHI

$53.99

$

Usually ships in 2-12 days

0

15

Generac 052203

SCREW HHC M8-1.25 X 70 C8.8

Note: SUPPLIED WITH ENGINE

$

$

Not available

16

Generac 052265

SCREW HHC M8-1.25 X 65 C8.8

Note: SUPPLIED WITH ENGINE

$

$

Not available

20

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

24

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

28

Generac 029333A

TIE WRAP U L 7.4"X .19" B LK

$0.99

$

Usually ships in 2-12 days

0

33

Generac 046525

NUT HEX M10-1.25 G8 YEL CHR

$

$

Not available

35

Generac 0D2244M

ASSY MAGPICKUP (3/8-24 MALE)

Note: APPLY MEDIUM STRE N GTH BLUE LOCKI N G FLUID TO THE THREADS.. FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

36

Generac 043116

S CREW HHC M6-1.0X1 2 G8.8
(Superseded to G043116)

$0.99

$

Usually ships in 2-12 days

0

37

Generac 022097

WASHER LO CKM6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

38

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

39

Generac 0G92210AS0R

SHIELD EXHAUST

$79.99

$

Usually ships in 2-12 days

0

40

Generac 0D6029

SCREW HHTT M6-1.0 X 16 ZY C

$18.99

$

Usually ships in 2-12 days

0

41

Generac 0G0792A

SHIELD HEAT SML

$11.99

$

Usually ships in 2-12 days

0

42

Generac 0H6859P

ASSEMBLY DIPSTICK G2.4L

$23.99

$

Usually ships in 2-12 days

0

43

Generac 0G8427A

ASSY DIPSTICK TUBE 2.4 G2

$19.99

$

Usually ships in 2-12 days

0

44

Generac 052213

S CREW HHC M10-1.25 X 20 C8.8

$

$

Not available

45

Generac 046526

WASHER LO CKM10

$

$

Not available

46

Generac 0G3823

O-RING SIZE 9.0MM X 2.0MM NITR

$0.99

$

Usually ships in 2-12 days

0

47

Generac 0G3910

EXHAUST MANIFOLD G2 (MACHINE)

$272.99

$

Usually ships in 2-12 days

0

48

Generac 045772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available

49

Generac 0G0951

GASKET EXHAUST MANIFOLD

Note: SUPPLIED WITH ENGINE

$35.99

$

Usually ships in 2-12 days

0

50

Generac 0A8258

S CREW HHC M8-1.25 X 25 C10.9

$0.99

$

Usually ships in 2-12 days

0

51

Generac 0A45310244

FILTER 1.5L/2.4L G2 OIL

Note: SUPPLIED WITH ENGINE

$50.99

$

Usually ships in 2-12 days

0

52

Generac 042574

ADAPTOR 1/8 NPTF TO 1/8 BSPT

$

$

Not available

53

Generac 0A8584

SWITCH OIL PRESSURE 10 PSI 2 POL

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

54

Generac 0E9868A

ALTERNATOR D C W/OUT PULLEY

$519.99

$

Usually ships in 2-12 days

0

55

Generac 0H8572

PULLEY D C ALTERNATOR

$20.99

$

Usually ships in 2-12 days

0

56

Generac 0E4507

S CREW HHC M10-1.5 X 120 C8.8

$4.99

$

Usually ships in 2-12 days

0

57

Generac 0D3488S

BELT SERPENTINE 37.0"

$28.99

$

Usually ships in 2-12 days

0

58

Generac 0G1472A

CAM SENSOR PIN ASSY

$27.99

$

Usually ships in 2-12 days

0

59

Generac 0G1477

C OVER CAM GEAR G2 REWORKED

$857.99

$

Usually ships in 2-12 days

0

60

Generac 0G8852

BRA CKET ASM-2.4L C OIL G2

$137.99

$

Usually ships in 2-12 days

0

61

Generac 0G8853

C OIL-2.4L G2 IGNITION

$183.99

$

Usually ships in 2-12 days

0

62

Generac 034413

S CREW HHM #10-32X1-1/4

$

$

Not available

63

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

64

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

65

Generac 0G9520

PLUG TAPER

Note: SUPPLIED WITH ENGINE

$11.99

$

Usually ships in 2-12 days

0

66

Generac 0G9378

DECAL SORE EPA CERTIFICATIO

$

$

Currently unavailable

67

Generac 0K3603

ADAPTER DRAIN OIL

$37.99

$

Usually ships in 2-12 days

0

68

Generac 077043H

CO N DUIT FLEX .25"ID (6"LG)

$1.99

$

Usually ships in 2-12 days

0

72

Generac 0F3217

SPACER DC ALTER NATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0
