HT03524GNAX - Honeywell 35kW Home Standby Generator (SN: 6798528 - 6798528) (2011) Fuel System 2.4l 36kw Turbo (0H7579) Parts Diagram

35kW Home Standby Generator

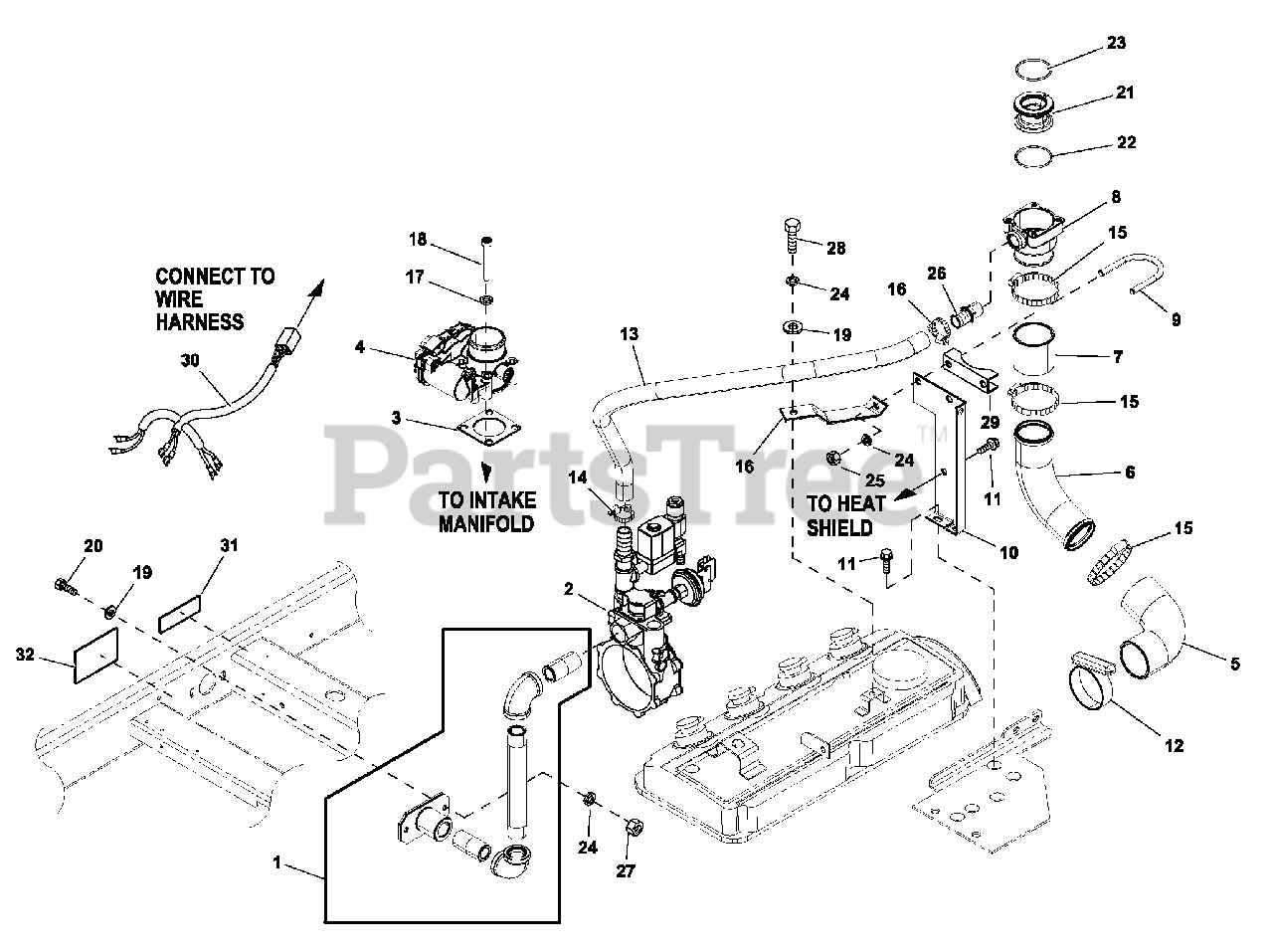

Fuel System 2.4l 36kw Turbo (0H7579) Parts Diagram

  • Title

1

Generac 0F8274

ASSY RGLTR INLET NPT FITTINGS

Note: ORDER 0F8274SRV

$

$

Not available

2

0F6390K

REGULATOR ASSY 2.4L 36KW

$

$

Not available

3

Generac 0E6586

GASKET, BOSCH 32 & 40

$2.49

$

Usually ships in 2-12 days

0

4

Generac 0E4394

ACTUATOR BOSC H 40, GOVERNOR

$701.99

$

In Stock, only 1 left!

0

5

Generac 063225

ELBOW RUBBER 90 2" ID

$

$

Not available

6

Generac 0H0749A

INTAKE TUBE 2.4L G2 36KW

$88.99

$

Usually ships in 2-12 days

0

7

Generac 040105

H OSE COOL 2IN ID 20R4 (3FT)

$

$

Not available

8

Generac 0G4573B

MIXER ACTUATOR

$42.99

$

Usually ships in 2-12 days

0

9

Generac 036434

BOLT U 5/16-18X2.09

$

$

Not available

10

Generac 0H07470ST03

BRACKET INTAKE MANIFOLD

$40.99

$

Usually ships in 2-12 days

0

11

Generac 090388

SCREW H H TTM6-1.0X12
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

12

Generac 0G1285C

CLAMP CNST TENSION 1.75-2.625

$9.99

$

Usually ships in 2-12 days

0

13

Generac 057147

H OSE 3/4 ID LPG & NG (35"LG)

$

$

Not available

14

Generac 057822

CLAMP H OSE #8 .53-1.00
(Superseded to G057822)

$3.99

$

Usually ships in 2-12 days

0

15

Generac 086133C

CLAMP H I TORQUE 1.75 - 2.625

Note: FOR D3.9L G2 REFER TO PIB09-11-Y39 FOR INFO BEFORE ORDERING.

$22.99

$

Usually ships in 2-12 days

0

16

Generac 0H09080ST03

BRACKET-INTAKE REINFORCEMENT

$44.99

$

Usually ships in 2-12 days

0

17

Generac 022097

WAS H ER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

18

Generac 046580

SCREWS H C M6-1.0X45

$

$

Not available

19

Generac 022145

WAS H ER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

20

Generac 039253

SCREW H H C M8-1.25 X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

21

Generac 0F7790C

VENTURI TH ROTTLE 24MM

$4.49

$

Usually ships in 2-12 days

0

22

Generac 0E7121

O-RING 47.625 ID X 2.38 WIDT H

$29.99

$

Usually ships in 2-12 days

0

23

Generac 0F2119

O-RING 45.63 ID X 2.62 WIDT H

$1.99

$

Usually ships in 2-12 days

0

24

Generac 022129

WAS H ER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

25

Generac 022259

NUT H EX 5/16-18 STEEL
(Superseded to G022259)

$1.49

$

Usually ships in 2-12 days

0

26

Generac 047527

BARBED STR 1/2NPTX3/4

$

$

Not available

27

Generac 045771

H EX NUT-METRIC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

28

Generac 042907

SCREW H H C M8-1.25 X 16 G8.8
(Superseded to G042907)

$2.49

$

In Stock, Qty 6

0

29

Generac 036449

SADDLE 2 INC H

$

$

Not available

30

0 H7436

HARN FUEL JUMPER SINGLE REG

$

$

Not available

31

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

32

Generac 050279

DECAL FUEL INLET

$

$

Not available

Generac 050280

DECAL FUEL INLET

$

$

Not available
