HT04542GNAX - Honeywell 45kW Home Standby Generator (SN: 6708400 - 6708400) (2011) Muffler Exhaust (0H0988) Parts Diagram

45kW Home Standby Generator

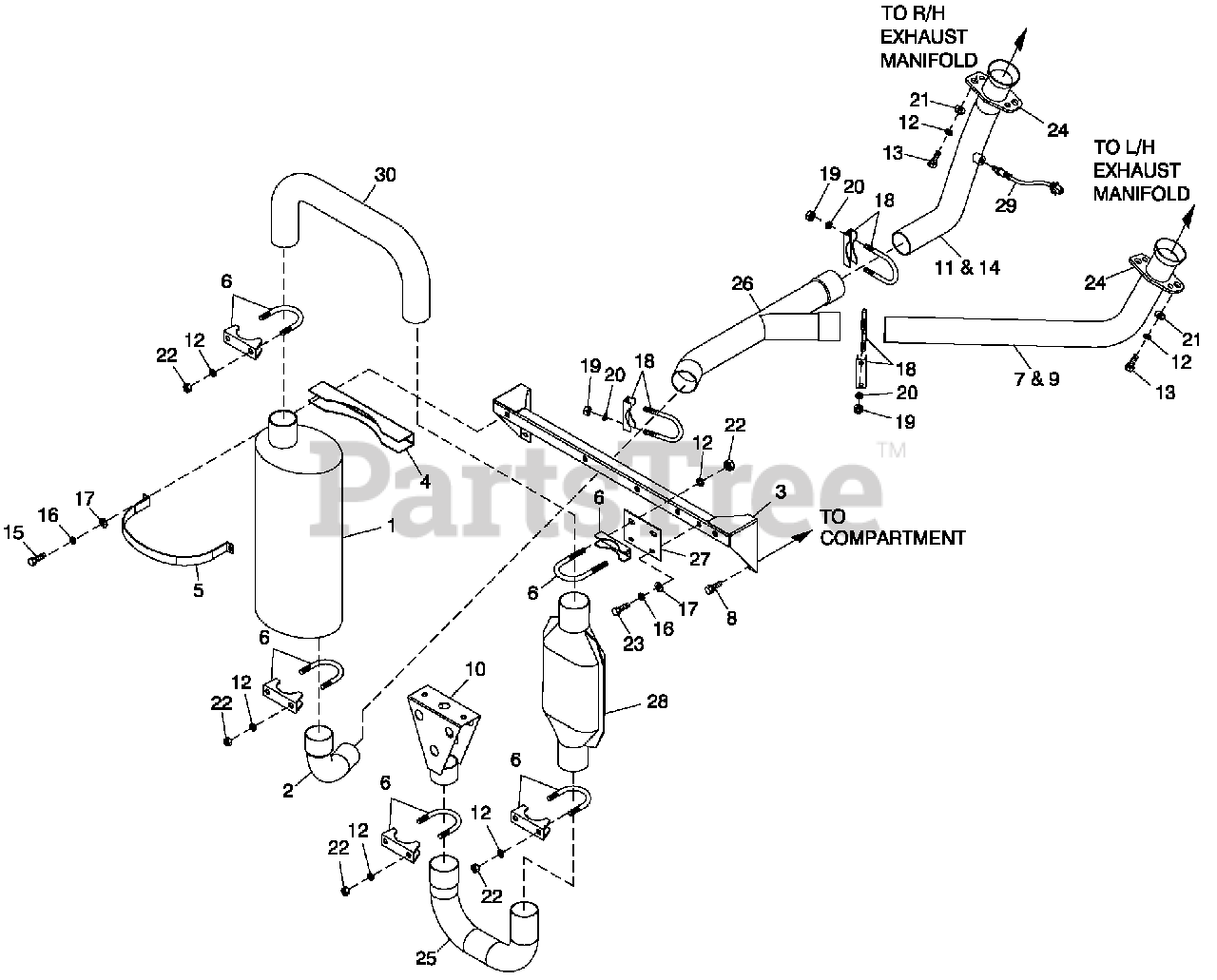

Muffler Exhaust (0H0988) Parts Diagram

  • Title

1

Generac 0F9794

MFLR 7"X9"X18-1/2"2-1/2"IN/OUT

Note: NO LONGER AVAILABLE. ORDER 0K7781

$

$

Not available

2

Generac 0G0113

EXHAUST ELBOW 2"ID X 2-1/2"OD

$453.99

$

Usually ships in 2-12 days

0

3

Generac 0G1007

BRAC KET MUFFLER

$355.99

$

Usually ships in 2-12 days

0

4

Generac 0F2830

MUFFLER BRACKET STIFFENER

$51.99

$

Usually ships in 2-12 days

0

5

Generac 0F2962

MUFFLER STRAP

$76.99

$

Usually ships in 2-12 days

0

6

Generac 080762

BOLT U 3/8-16X2.62

$

$

Not available

7

Generac 0G5821

PIPE EXHAUST LEFT 2"OD G3 4.2L

$156.99

$

Usually ships in 2-12 days

0

8

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.99

$

Usually ships in 2-12 days

0

9

Generac 0F3794B

EXHAUST BLAN KET 700MM LONG (NOT SHOWN)

$197.99

$

Usually ships in 2-12 days

0

10

Generac 0G0007

DIFFUSER EXHAUST WELDMENT

$116.99

$

Usually ships in 2-12 days

0

11

0G5822A

PIPE EXHAUST RIGHT G3 4.2 EMSN

$

$

Not available

12

Generac 085917

WASHER LOCK 3/8 SS

$

$

Not available

13

Generac 0G6401

SCREW HHC M10-1.5 X 45 SS FTH

$9.99

$

Usually ships in 2-12 days

0

14

Generac 0E0170B

EXHAUST BLAN KET 850MM (NOT SHOWN)

$203.99

$

In Stock, only 1 left!

0

15

Generac 049721

SCREW HHC M6-1.0 X 35 G8.8 BLK
(Superseded to G049721)

$11.99

$

In Stock, Qty 5

0

16

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

17

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

18

Generac 036797

BOLT U 5/16-18X2.25

$

$

Not available

19

Generac 022259

NUT HEX 5/16-18 STEEL
(Superseded to G022259)

$1.99

$

In Stock, only 1 left!

0

20

Generac 070006

WASHER LOCK M8 SS
(Superseded to G070006)

$1.99

$

Usually ships in 2-12 days

0

21

Generac 088775

WASHER FLAT 3/8 SS

$

$

Not available

22

Generac 022241

NUT HEX 3/8-16 STEEL

$

$

Not available

23

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

Usually ships in 2-12 days

0

24

Generac 0E8816

EXHAUST FLANGE 2" PIPE

$45.99

$

In Stock, only 1 left!

0

25

Generac 0F2808B

PIPE, EXHAUST MUFFLER OUT

$180.99

$

Usually ships in 2-12 days

0

26

Generac 0G5819

Y-PIPE EXHAUST 2"OD 4.2L G3

$1740.99

$

Usually ships in 2-12 days

0

27

0G2453

PLATE, CATALYST MOUNTING

$

$

Not available

28

Generac 0G8026

CATALYST AF-RATIO

$2819.99

$

Usually ships in 2-12 days

0

29

Generac 0F9071

SENSOR OXYGEN

$804.99

$

Usually ships in 2-12 days

0

30

0F2809A

PIPE, EXHAUST CROSSOVER EMSSM

$

$

Not available
