HT04554KNAX - Honeywell 45kW Home Standby Generator (SN: 8438432 - 8438432) (2013) Ev Engcomprt 5.4l Cpl R/h (0J5602A) Parts Diagram

45kW Home Standby Generator

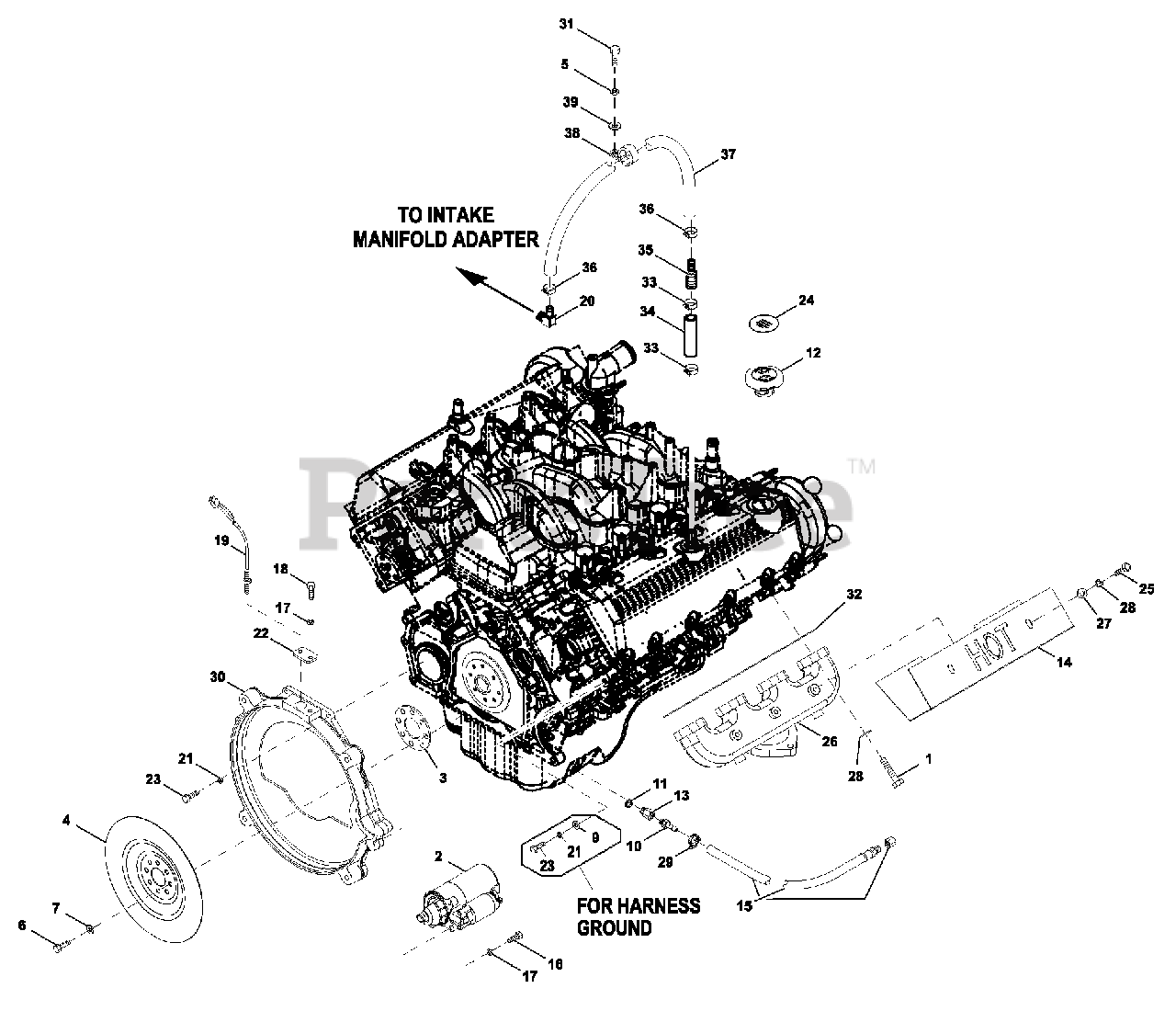

Ev Engcomprt 5.4l Cpl R/h (0J5602A) Parts Diagram

  • Title

1

Generac 0D9913

SCREW SHC M8-1.25 X 35 SS

$10.99

$

Usually ships in 2-12 days

0

2

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

3

Generac 0F3514

SPACER FLEXPLATE 5.4L/6.8L (1800 RPM ONLY)

$4.99

$

Usually ships in 2-12 days

0

4

Generac 0F9965C

FLEX PLATE 2 POLE 5.4L/6.8L (1800 RPM UNITS ONLY)

$61.99

$

Usually ships in 2-12 days

0

5

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

6

Generac 0D5417

SCREW HHC M10-1.0X 25 G10.9

$4.49

$

Usually ships in 2-12 days

0

7

Generac 0A5768

WASHER FLAT M10 HEAVY DUTY

$1.49

$

Usually ships in 2-12 days

0

8

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK (NOT SHOWN)

Note: I/N 8 USED FOR HOLDING SENSOR TO l/N 5.

$0.99

$

Usually ships in 2-12 days

0

9

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$1.49

$

Usually ships in 2-12 days

0

10

Generac 055596

BARBED STR 3/8 NPTX 3/8

$

$

Not available

11

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

12

Generac 0F7316C150

CAP, OIL FILLER

Note: PART OF ENGINE MAKE P/N 0J6390A.

$150.99

$

Usually ships in 2-12 days

0

13

Generac 057765

ADAPTER M14-1.50X3/8NPTA

$

$

Not available

14

Generac 0F3534

HEAT SHLD EXHAUST MANIFOLD

$117.99

$

Usually ships in 2-12 days

0

15

Generac 069860B

HOSE OIL DRAIN ASSY 16"

Note: NO LONGER AVAILABLE.

$

$

Not available

16

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

17

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

18

Generac 039253

SCREW HHC M8-1.25X20 G8.8
(Superseded to G039253)

$3.49

$

In Stock, only 1 left!

0

19

Generac 0D2244M

ASSY MAGPICKUP (3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$261.99

$

Usually ships in 2-12 days

0

20

Generac 049340

BARBED EL 90 1/4NPTX 3/8

$

$

Not available

21

Generac 046526

WASHER LOCK M10

$

$

Not available

22

Generac 0F5454

PLATE MAG PICK-UP ADAPTOR

$73.99

$

Usually ships in 2-12 days

0

23

Generac 071623

SCREW SHC M10-1.5X55G12.9

$

$

Not available

24

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

Note: PART OF ENGINE MAKE P/N 0J6390A.

$1.49

$

Usually ships in 2-12 days

0

25

Generac 0D2608

SCREW HHC 5/16-18 X 1/2 SSTL

$3.49

$

Usually ships in 2-12 days

0

26

Generac 0F1820

MACHINED MANIFOLD EXHAUST 5.4L

$215.99

$

In Stock, only 1 left!

0

27

Generac 070008

WASHER FLAT M8 SS
(Superseded to G070008)

$1.49

$

Usually ships in 2-12 days

0

28

Generac 070006

WASHER LOCK M8 SSTL
(Superseded to G070006)

$1.99

$

Usually ships in 2-12 days

0

29

Generac 0C7649

CLAMP HOSE .38- 87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$3.49

$

In Stock, only 2 left!

0

30

Generac 0F2929

ENGINE ADAPTER 5.4L/6.8L

$596.99

$

Usually ships in 2-12 days

0

31

Generac 047411

SCREW HHC M6-1.0 X 16 C8.8
(Superseded to G047411)

$1.99

$

Usually ships in 2-12 days

0

32

Generac 0F5755

GASKET, EXHAUST MANIFOLD

$30.99

$

Usually ships in 2-12 days

0

33

Generac 048031P

CLAMP HOSE BAND .88"

$2.49

$

Usually ships in 2-12 days

0

34

Generac 0G0321

HOSE COOL 5/8"ID 250+WP (2" LG)

$27.99

$

Usually ships in 2-12 days

0

35

Generac 0G1462

HOSE BARB REDUCER 5/8"-3/8"ID

$3.99

$

Usually ships in 2-12 days

0

36

Generac 048031J

CLAMP HOSE BAND .63

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

37

Generac 047290

HOSE 3/8 ID SINGLE BRAID (15" LG)
(Superseded to G047290)

$10.99

$

Usually ships in 2-12 days

0

38

Generac 055934M

CLAMPSTL/VNL .7 5X .3 4 3Z

$3.99

$

Usually ships in 2-12 days

0

39

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0
