HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) CHANGE SHAFT Parts Diagram

Lawn Tractor, Made in Japan

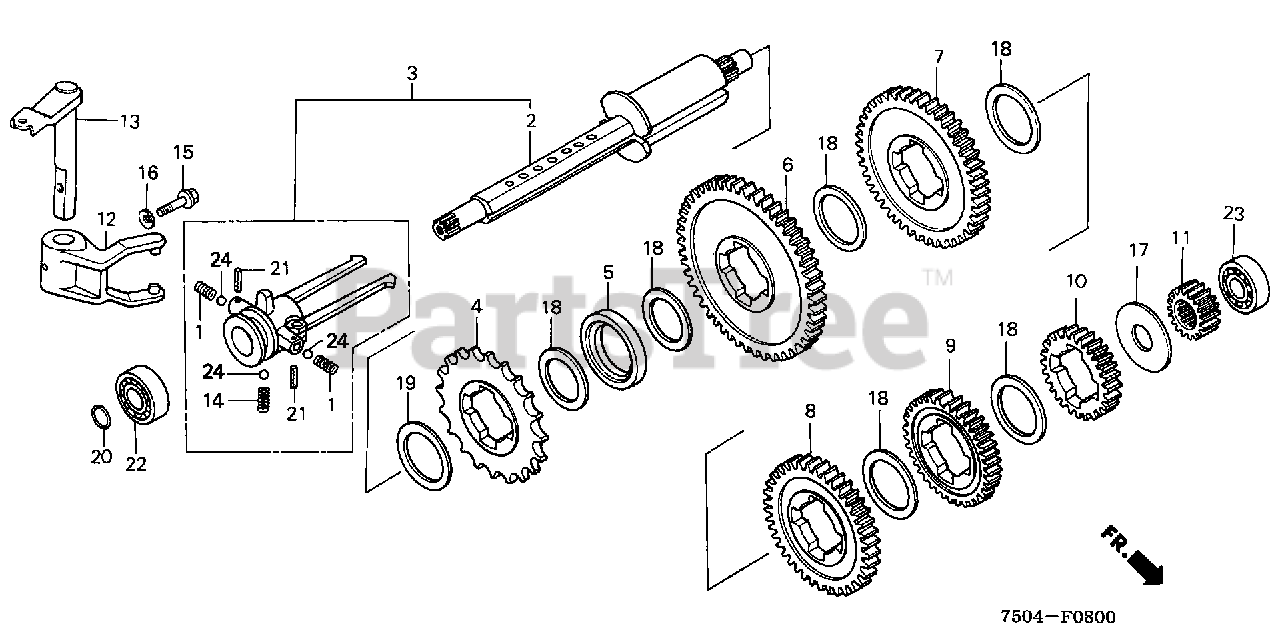

CHANGE SHAFT Parts Diagram

  • Title

1

Honda 21218-750-000

SPRING, CHANGE KEY

$4.99

$

Usually ships in 3-6 days

0

2

Honda 23213-750-000

SHAFT, CHANGE

$

$

Currently unavailable

3

Honda 23215-750-000

HOLDER ASSY., KEY (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 23461-750-000

SPROCKET, REVERSE

$82.99

$

Usually ships in 3-6 days

0

5

Honda 23501-750-000

POSITIONER, NEUTRAL

$20.99

$

Usually ships in 3-6 days

0

6

Honda 23511-750-000

GEAR, CHANGE LOW (56T)

$

$

Not available

7

Honda 23521-750-000

GEAR, CHANGE SECOND (53T)

$148.99

$

Usually ships in 3-6 days

0

8

Honda 23531-750-000

GEAR, CHANGE THIRD (48T)

$138.99

$

Usually ships in 3-6 days

0

9

Honda 23541-750-000

GEAR, CHANGE FOURTH (41T)

$111.99

$

Usually ships in 3-6 days

0

10

Honda 23551-750-000

GEAR, CHANGE FIFTH (32T)

$101.99

$

Usually ships in 3-6 days

0

11

Honda 23611-750-000

GEAR, COUNTERSHAFT DRIVE (17T)

$

$

Not available

12

Honda 24110-750-000

SHIFTER

$70.99

$

Usually ships in 3-6 days

0

13

Honda 24130-750-000

SHAFT, SHIFTER

$

$

Not available

14

Honda 24271-750-000

SPRING, BALL SETTING

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90110-750-000

BOLT, KNOCK (8X23)

$

$

Currently unavailable

16

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90505-750-000

WASHER, CHANGE THRUST (20.2MM)

$

$

Not available

18

Honda 90506-750-000

WASHER, DISTANCE (2MM)

$

$

Not available

19

Honda 90507-750-000

WASHER, DISTANCE (1MM)

$6.99

$

Usually ships in 3-6 days

0

20

Honda 91322-PT0-003

O-RING (17.8X1.9) (NOK)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 94305-30142

PIN, SPRING (3X14)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$23.99

$

In Stock, only 2 left!

0

23

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
