HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) COUNTERSHAFT + DIFFERENTIAL GEAR Parts Diagram

Lawn Tractor, Made in Japan

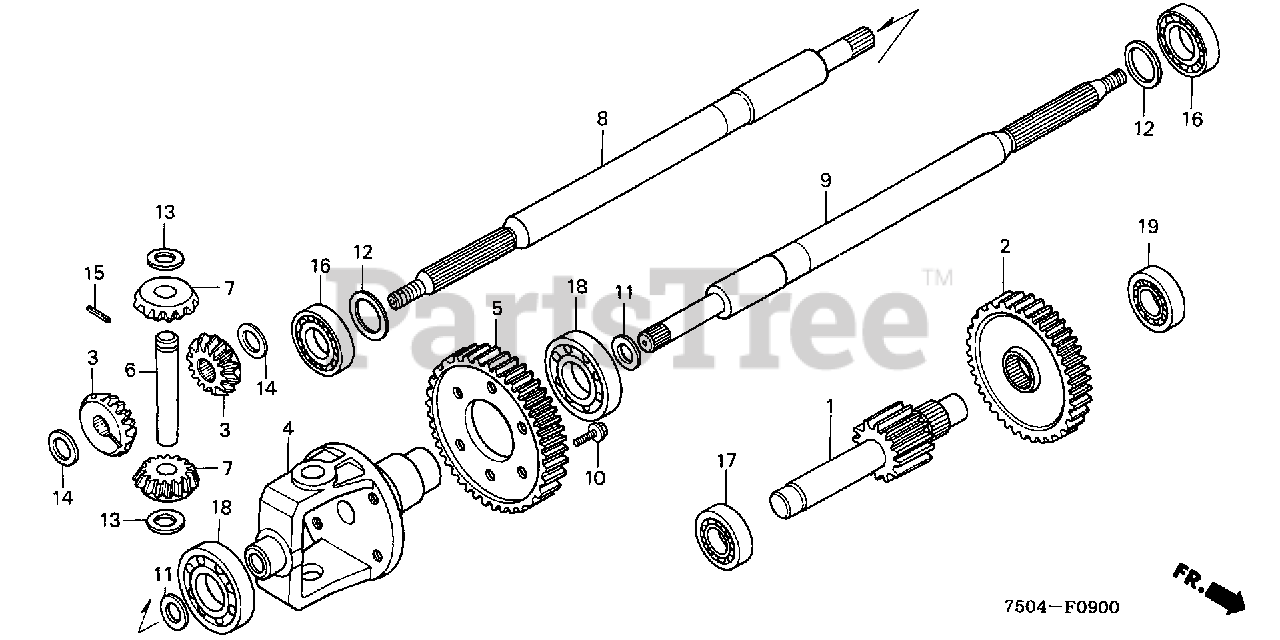

COUNTERSHAFT + DIFFERENTIAL GEAR Parts Diagram

  • Title

1

Honda 23214-750-000

COUNTERSHAFT

$

$

Not available

2

Honda 23612-750-000

GEAR, COUNTERSHAFT DRIVEN (52T)

$

$

Not available

3

Honda 41241-752-000

GEAR, DIFFERENTIAL (16T)

$

$

Not available

4

Honda 41311-750-010

CASE, DIFFERENTIAL GEAR

$

$

Not available

5

Honda 41312-750-000

GEAR, FINAL DRIVEN (49T)

$194.99

$

Usually ships in 3-6 days

0

6

Honda 41321-750-000

SHAFT, DIFFERENTIAL PINION

$

$

Not available

7

Honda 41341-750-000

PINION, DIFFERENTIAL (16T)

$

$

Not available

8

Honda 41410-750-040

SHAFT, R. AXLE

$243.99

$

Usually ships in 3-6 days

0

9

Honda 41420-750-040

SHAFT, L. AXLE

$

$

Currently unavailable

10

Honda 90113-750-000

BOLT, SPECIAL (10X20)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90501-750-010

WASHER, RR. AXLE

$

$

Currently unavailable

12

Honda 90508-750-A00

WASHER, SPECIAL

$

$

Currently unavailable

13

Honda 90521-750-000

WASHER A, DIFFERENTIAL PINION

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90522-750-000

WASHER B, DIFFERENTIAL PINION

$

$

Not available

13

Honda 90523-750-000

WASHER C, DIFFERENTIAL PINION

$

$

Not available

13

Honda 90524-750-000

WASHER D, DIFFERENTIAL PINION

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90525-752-000

WASHER, DIFFERENTIAL GEAR

$8.99

$

Usually ships in 3-6 days

0

15

Honda 94305-40322

PIN, SPRING (4X32)

$3.49

$

In Stock, only 1 left!

0

16

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$27.99

$

In Stock, only 4 left!

0

17

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 91008-752-003

BEARING, RADIAL BALL (62/32)

$57.99

$

Usually ships in 3-6 days

0

19

Honda 96100-63040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6304)

$21.99

$

Usually ships in 3-6 days

0
