HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) CUTTER DECK LINK Parts Diagram

Lawn Tractor, Made in Japan

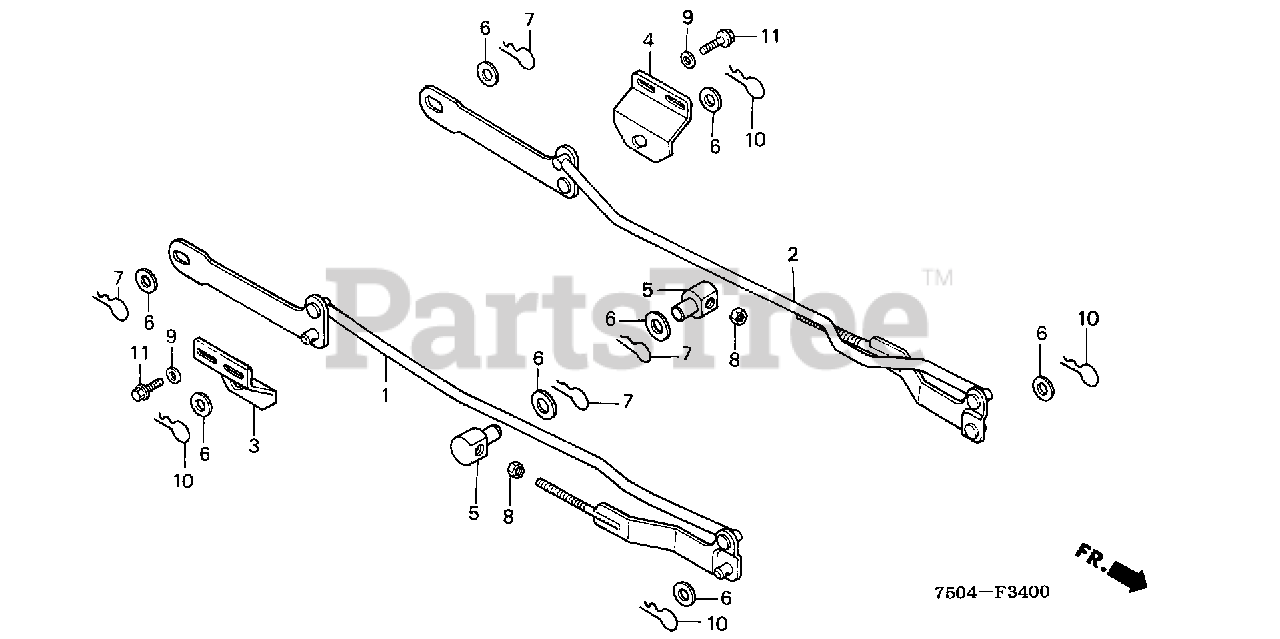

CUTTER DECK LINK Parts Diagram

  • Title

1

Honda 76171-750-020

LINK, R. CUTTER DECK

$

$

Not available

2

Honda 76172-750-020

LINK, L. CUTTER DECK

Note: Use up to Frame SN 5204148.

$

$

Not available

2

Honda 76172-750-700

LINK, L. CUTTER DECK

Note: Use from Frame SN 5204149.

$

$

Currently unavailable

3

Honda 76183-750-010

BRACKET, R. RR. LINK

$

$

Not available

4

Honda 76184-750-010

BRACKET, L. RR. LINK

$23.99

$

Usually ships in 3-6 days

0

5

Honda 76185-750-000

PIN, FR. LINK ADJUSTING

Note: Use up to Frame SN 5204148.

$

$

Not available

5

Honda 76185-750-700

PIN, FR. LINK ADJUSTING (NOT AVAILABLE)

Note: Use from Frame SN 5204149.

$

$

Not available

6

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.99

$

In Stock, only 2 left!

0

7

Honda 90701-750-000

PIN, LOCK (2.3MM)

Note: Use up to Frame SN 5204148.

$4.49

$

In Stock, only 3 left!

0

7

Honda 90703-750-700

PIN, LOCK (14MM)

Note: Use from Frame SN 5204149.

$

$

Not available

8

Honda 94001-12000-0S

NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

9

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 16

0

10

Honda 94252-14000

PIN, LOCK (14MM)

Note: Use up to Frame SN 5204148.

$2.99

$

In Stock, only 2 left!

0

10

Honda 90702-752-831

PIN, LOCK (14MM)

Note: Use from Frame SN 5204149.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 95700-08018-08

BOLT, FLANGE (8X18)
(Superseded to 95701-08018-08)

$2.49

$

In Stock, only 2 left!

0

11

Honda 95701-08018-08

BOLT, FLANGE (8X18)

$2.49

$

In Stock, only 2 left!

0
