HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) CUTTER HOUSING + BELT COVER (HT3810K2/3813K1) Parts Diagram

Lawn Tractor, Made in Japan

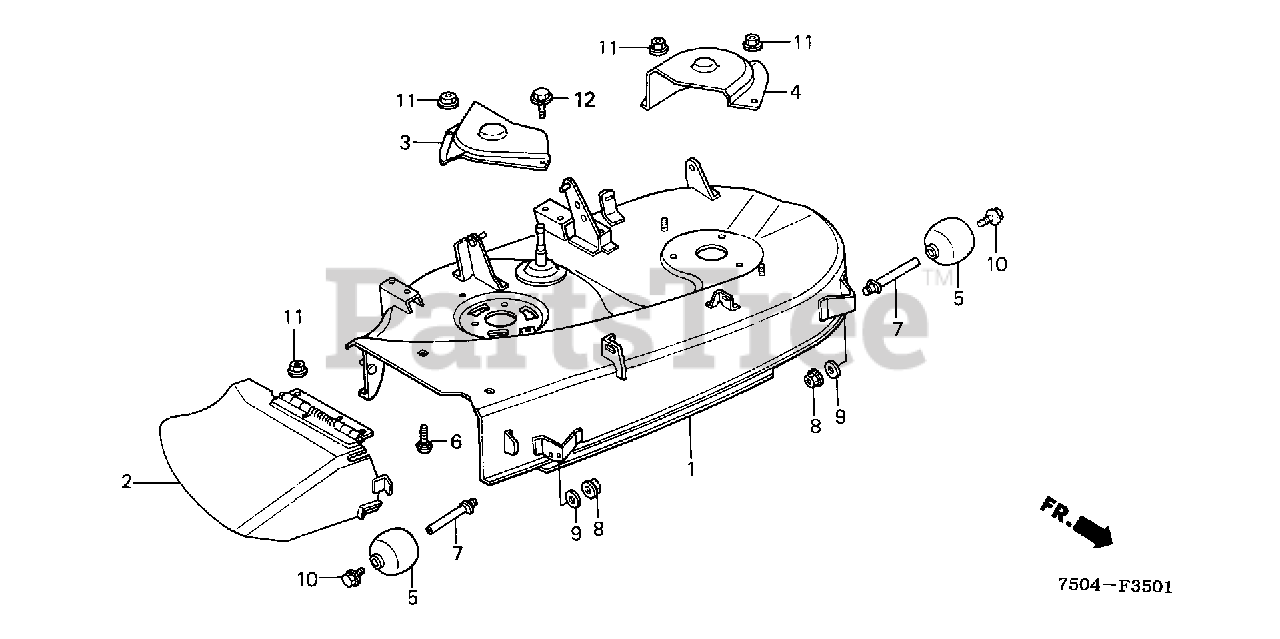

CUTTER HOUSING + BELT COVER (HT3810K2/3813K1) Parts Diagram

  • Title

1

Honda 76110-750-A00

HOUSING, CUTTER

Note: Use up to Frame SN 5204148.

$

$

Currently unavailable

1

Honda 76110-750-A01

HOUSING, CUTTER (NOT AVAILABLE)

Note: Use from Frame SN 5204149.

$

$

Currently unavailable

2

Honda 76150-750-A00ZA

ADAPTER, DISCHARGE *NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76155-750-A00ZA

COVER, R. BELT *NH190M* (VINTAGE GRAY METALLIC)

$

$

Not available

4

Honda 76156-751-700ZA

COVER, L. BELT *NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 76231-751-701

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$24.99

$

Usually ships in 3-6 days

0

6

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90108-751-701

SHAFT, ANTI-SCALP ROLLER

$22.99

$

Usually ships in 3-6 days

0

8

Honda 90306-750-A00

NUT, SELF-LOCK (12MM)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 90403-750-A00

WASHER, THRUST (12MM)

$5.99

$

Usually ships in 3-6 days

0

10

Honda 93406-08012-08

BOLT-WASHER (8X12)

Note: Use up to Frame SN 5201547.

$2.49

$

In Stock, only 2 left!

0

10

Honda 93406-08016-08

BOLT-WASHER (8X16)

Note: Use from Frame SN 5201548.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
