HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) WIRE HARNESS + STARTER CABLE (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

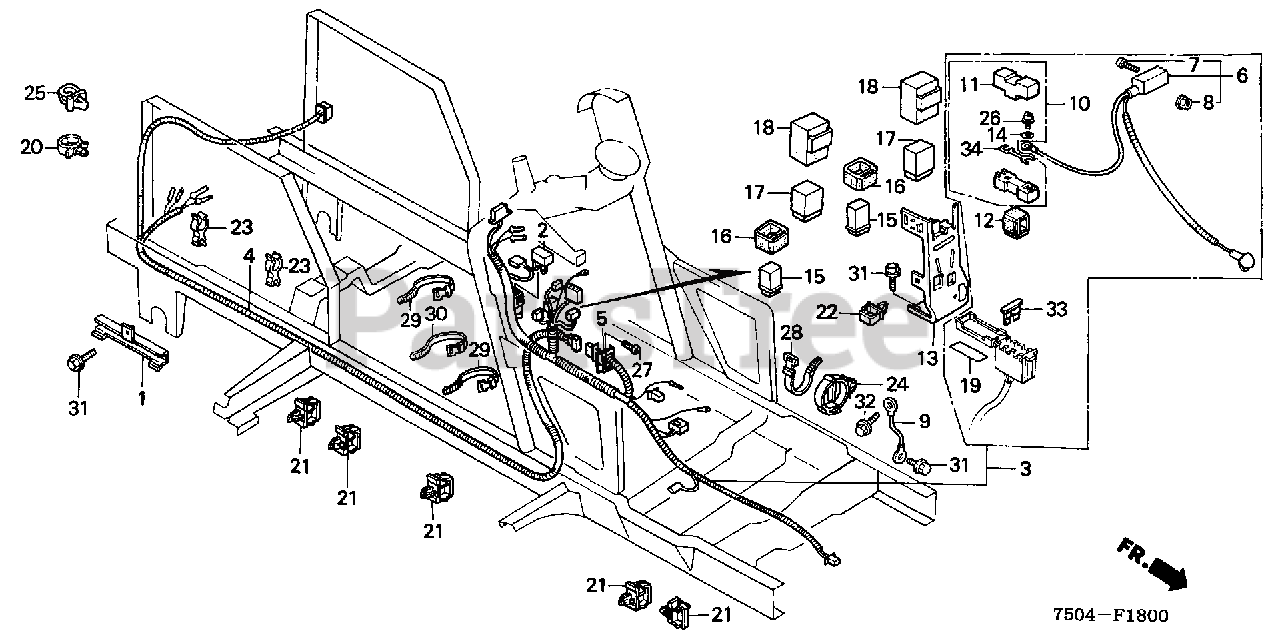

WIRE HARNESS + STARTER CABLE (HT3810/K1/K2) Parts Diagram

  • Title

1

Honda 31483-750-A00

PROTECTOR, WIRE

$

$

Not available

2

Honda 31700-124-003

SEE PART DETAILS - SUP; RECTIFIER ASSY., SILICON (STANLEY)
(Superseded to 31700-124-008)

$36.99

$

In Stock, only 1 left!

0

3

Honda 32100-750-000

WIRE HARNESS ASSY., MAIN

$328.99

$

Usually ships in 3-6 days

0

4

Honda 32120-750-000

SUB-WIRE HARNESS ASSY., RR.

$

$

Not available

5

Honda 32302-750-000

HOLDER, CONNECTOR

$

$

Not available

6

Honda 32410-750-000

CABLE ASSY., STARTER

$

$

Not available

7

Honda 32601-SA5-003

SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 32601-SK7-900

SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL

$11.99

$

Usually ships in 3-6 days

0

8

Honda 32602-SA5-003

NUT, BATTERY TERMINAL (SUMITOMO)

$7.49

$

Usually ships in 3-6 days

0

9

Honda 32610-750-000

CABLE ASSY., BONDING

$9.49

$

Usually ships in 3-6 days

0

10

Honda 38250-KJ9-015

BOX, MAIN FUSE (NOT AVAILABLE)

$

$

Not available

11

Honda 38251-KJ9-000

COVER (NOT AVAILABLE)

$

$

Not available

12

Honda 38251-750-000

SUSPENSION, MAIN FUSE

$

$

Not available

13

Honda 38252-750-A00

BRACKET, ELECTRIC PARTS

$72.99

$

Usually ships in 3-6 days

0

14

Honda 38253-422-005

WASHER, PLAIN (3X10)

$

$

Not available

15

Honda 38351-750-003

SEE PART DETAILS - SUP; RELAY, CONTROL
(Superseded to 38350-762-003)

$48.99

$

Usually ships in 3-6 days

0

16

Honda 38356-750-003

SUSPENSION, CONTROL RELAY

$

$

Currently unavailable

17

Honda 38501-GF4-701

RELAY, STARTER

$

$

Not available

18

Honda 38506-GF4-701

SUSPENSION, STARTER RELAY (OMRON)

$

$

Not available

18

Honda 38506-GJ2-004

SUSPENSION, STARTER RELAY (MITSUBA)

$

$

Not available

19

Honda 87117-750-010

LABEL, FUSE

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90617-750-003

CLIP, WIRE HARNESS

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

Note: Use up to Frame SN 5202435.

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

Note: Use from Frame SN 5202436.

$5.49

$

Usually ships in 3-6 days

0

22

Honda 90651-SB2-003

CLIP, WIRE HARNESS (13MM) (GRAY)

$8.49

$

Usually ships in 3-6 days

0

23

Honda 90683-750-003

CLAMP, PIPE (5-13)

$

$

Not available

24

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$9.49

$

Usually ships in 3-6 days

0

25

Honda 91504-750-003

CLIP, WIRE HARNESS

Note: Use up to Frame SN 5202435.

$3.99

$

Usually ships in 3-6 days

0

25

Honda 91504-750-003

CLIP, WIRE HARNESS

Note: Use from Frame SN 5202436.

$3.99

$

Usually ships in 3-6 days

0

26

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

27

Honda 93500-06008-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X8)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 95014-62100

BAND B1, CABLE

$1.99

$

In Stock, only 1 left!

0

29

Honda 95014-62200

BAND B2, CABLE HARNESS

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95014-62300

BAND B3, CABLE HARNESS

$2.99

$

Usually ships in 3-6 days

0

31

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

31

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

32

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0

34

Honda 98200-52000

FUSE F (20A)

$1.49

$

In Stock, only 3 left!

0
