HT3810 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5000034 - HT3810-5099999) GRASS CATCHER KIT (HOPPER) (HT3810) Parts Diagram

Lawn Tractor, Made in Japan

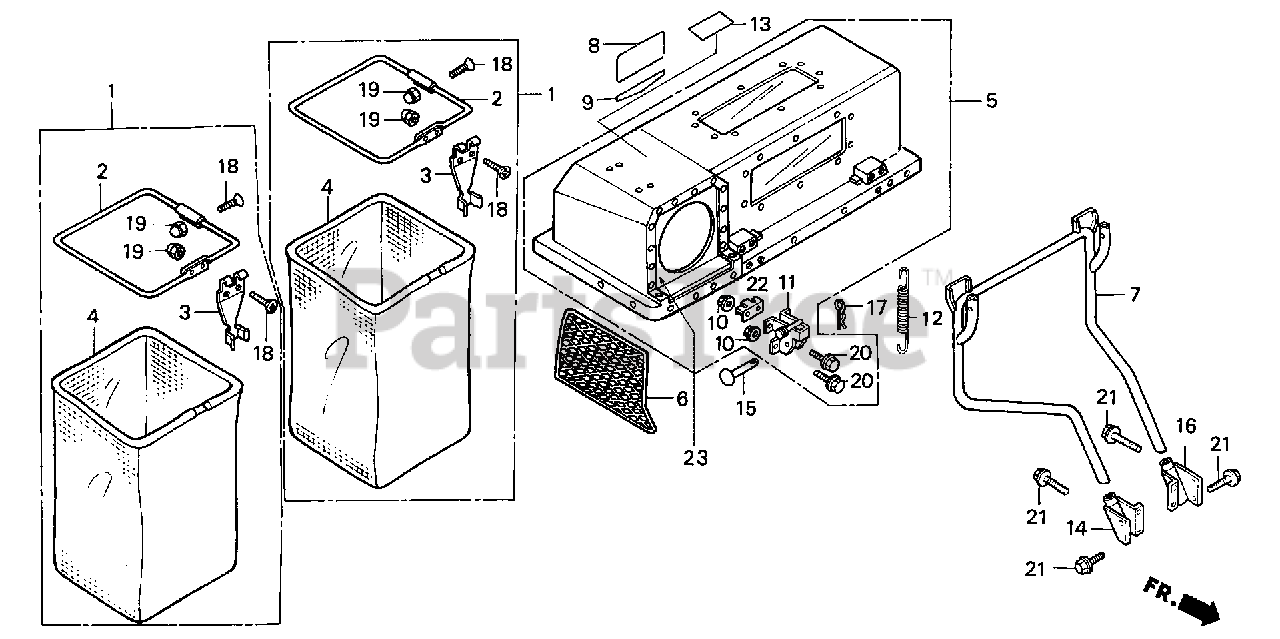

GRASS CATCHER KIT (HOPPER) (HT3810) Parts Diagram

  • Title

1

Honda 81100-750-010

BAG ASSY., GRASS

$

$

Not available

2

Honda 81150-750-000

RIM, GRASS BAG

$170.99

$

Usually ships in 3-6 days

0

3

Honda 81154-750-000

JOINT, GRASS BAG

$103.99

$

Usually ships in 3-6 days

0

4

Honda 81157-750-000

FABRIC, GRASS BAG

$105.99

$

Usually ships in 3-6 days

0

5

Honda 82110-750-000

HOPPER, TOP

$426.99

$

Usually ships in 3-6 days

0

6

Honda 82118-750-000

SCREEN

$124.99

$

Usually ships in 3-6 days

0

7

Honda 82119-750-000

POST, SUPPORTER

$

$

Currently unavailable

8

Honda 82126-750-000

LABEL, HOPPER TOP

$

$

Not available

9

Honda 82127-750-000

LABEL, OPEN

$

$

Not available

10

Honda 82130-750-000

NUT, FLANGE (6MM)

$

$

Currently unavailable

11

Honda 82140-750-300

HINGE

$52.99

$

Usually ships in 3-6 days

0

12

Honda 82144-750-000

SPRING, HINGE

$32.99

$

Usually ships in 3-6 days

0

13

Honda 82145-750-000

LABEL B, HOPPER TOP

$

$

Currently unavailable

14

Honda 82221-750-000

BRACKET, R. MOUNTING

$62.99

$

Usually ships in 3-6 days

0

15

Honda 82224-750-000

PIN, HINGE

$8.99

$

Usually ships in 3-6 days

0

16

Honda 82226-750-000

BRACKET, L. MOUNTING

$44.99

$

Usually ships in 3-6 days

0

17

Honda 82227-750-000

PIN, LOCK (10MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 93600-06016-0A

SCREW, FLAT (6X16) (YAMADA)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06018-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95900-06018-07

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)

$

$

Currently unavailable

21

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.99

$

In Stock, Qty 20+

0

22

Honda 82116-750-300

PATCH, HINGE

$

$

Currently unavailable

23

Honda 82114-750-300

SEAL, HOPPER

$16.99

$

Usually ships in 3-6 days

0
