HT3810 ST - Honda 42" Snow Thrower Attachment SNOW THROWER BODY (HT3810ST) Parts Diagram

42" Snow Thrower Attachment

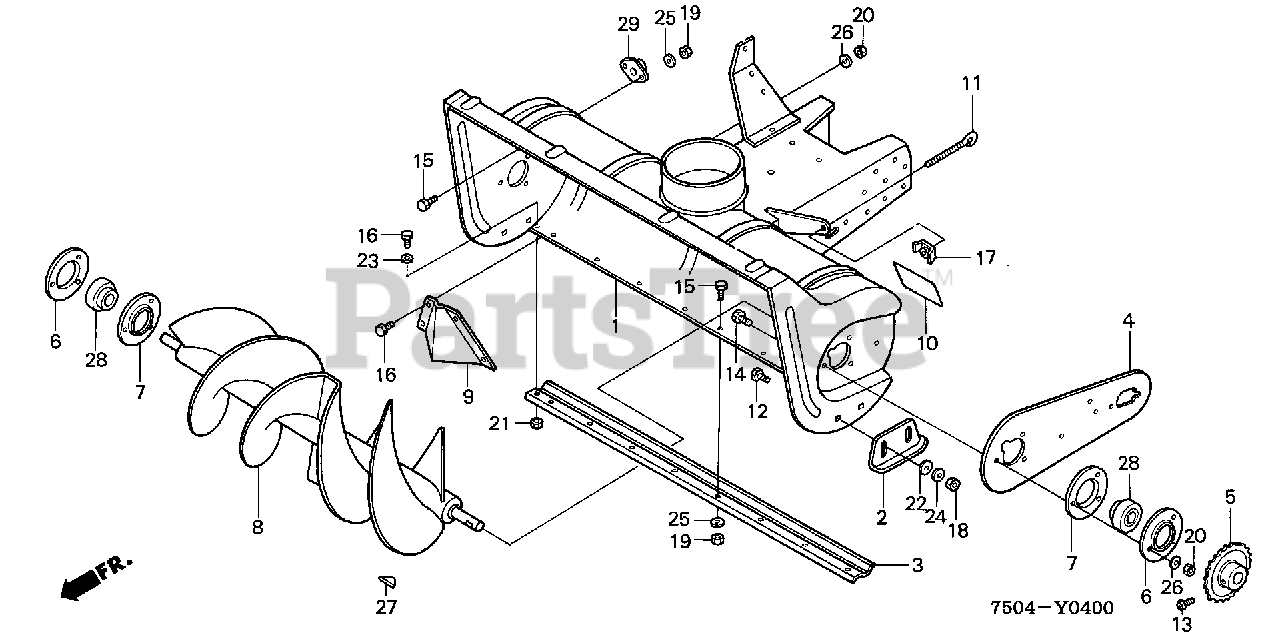

SNOW THROWER BODY (HT3810ST) Parts Diagram

  • Title

1

Honda 80410-750-880

BODY, SNOW THROWER

$

$

Currently unavailable

2

Honda 80421-750-881

SKID

$

$

Not available

3

Honda 80422-750-881

SCRAPER, BODY

$

$

Not available

4

Honda 80423-750-881

PLATE, SIDE

$57.99

$

Usually ships in 3-6 days

0

5

Honda 80425-750-881

SPROCKET, ROTOR

$172.99

$

Usually ships in 3-6 days

0

6

Honda 80426-750-881

FLANGE, BEARING

$12.99

$

Usually ships in 3-6 days

0

7

Honda 80427-750-881

FLANGE, BEARING

$

$

Currently unavailable

8

Honda 80430-750-881

ROTOR ASSY.

$1040.99

$

Usually ships in 3-6 days

0

9

Honda 80441-750-881

DEFLECTOR

$62.99

$

Usually ships in 3-6 days

0

10

Honda 87103-750-880

LABEL, SNOW THROWER BODY

$

$

Not available

11

Honda 90105-750-880

BOLT, TENSIONER

$

$

Not available

12

Honda 90131-750-881

BOLT, CARRIAGE (3/8-16X3/4)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90141-750-881

SCREW, SETTING (5/16-18X5/16)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90151-750-881

BOLT, HEX. (5/16-18X3/4)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90152-750-881

BOLT, HEX. (1/4-20X5/8)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90153-750-881

BOLT, HEX. (5/16-18X5/8)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90305-750-880

NUT, ADJUSTING

$

$

Not available

18

Honda 90321-750-881

NUT, HEX. (3/8-16)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90322-750-881

NUT, HEX. (1/4-20)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 90323-750-881

NUT, HEX. (5/16-18)

$

$

Currently unavailable

21

Honda 90351-750-881

NUT, HEX. LOCK (5/16-18)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 72998-5003

WASHER (3/8")

$0.99

$

Usually ships in 3-6 days

0

23

Honda 90502-758-U00

WASHER, PLAIN (0.25 INCH)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90541-750-881

WASHER, LOCK (0.375)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 90542-750-881

WASHER, LOCK (1/4)

$

$

Currently unavailable

26

Honda 90543-750-881

WASHER, LOCK (5/16)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 90781-750-881

KEY

$14.99

$

Usually ships in 3-6 days

0

28

Honda 91051-750-881

BEARING, CARTRIDGE

$91.99

$

Usually ships in 3-6 days

0

29

Honda 91052-750-881

BEARING

$15.99

$

Usually ships in 3-6 days

0
