HT3813 K1 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5100001 - HT3813-5199999) CYLINDER HEAD + CAMSHAFT (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

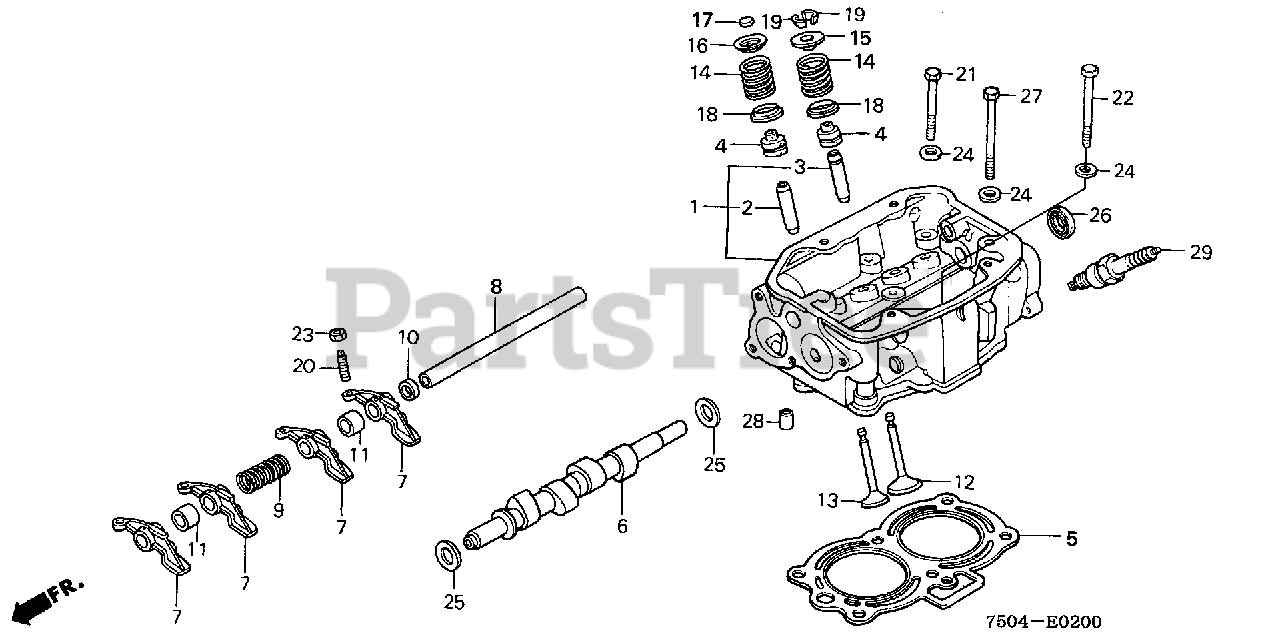

CYLINDER HEAD + CAMSHAFT (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 122A0-ZA0-702

CYLINDER HEAD

$

$

Not available

2

Honda 12204-ZA0-305

SEE PART DETAILS - SUP; GUIDE, EX. VALVE Use up to Engine SN 1107750.
(Superseded to 12204-ZA0-315)

$17.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZA0-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE

$17.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZA0-305

SEE PART DETAILS - SUP; GUIDE, VALVE
(Superseded to 12205-ZA0-306)

$19.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZA0-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$19.99

$

Usually ships in 3-6 days

0

4

Honda 12209-422-005

SEAL, VALVE STEM

Note: Use up to Engine SN 1107750.

$22.99

$

In Stock, only 4 left!

0

4

Honda 12209-422-005

SEAL, VALVE STEM

Note: Use from Engine SN 1107751.

$22.99

$

In Stock, only 4 left!

0

5

Honda 12251-ZA0-800

GASKET, CYLINDER HEAD

$84.99

$

In Stock, only 2 left!

0

6

Honda 04106-ZA0-700

SEE PART DETAILS - PRI; CAM AND PULLEY KIT

Note: Use up to Engine SN 1142975.

$

$

Not available

6

Honda 14101-ZA0-700

SEE PART DETAILS - SUP; CAMSHAFT
(Superseded to 04106-ZA0-700)

Note: Use up to Engine SN 1142975.

$

$

Not available

6

Honda 14101-ZA0-701

CAMSHAFT

Note: Use from Engine SN 1142976.

$198.99

$

Usually ships in 3-6 days

0

7

Honda 14431-ZA0-010

ARM, VALVE ROCKER

$22.99

$

Usually ships in 3-6 days

0

8

Honda 14451-881-000

SHAFT, VALVE ROCKER ARM

$25.99

$

Usually ships in 3-6 days

0

9

Honda 14481-881-000

SPRING, VALVE ROCKER ARM

$6.99

$

Usually ships in 3-6 days

0

10

Honda 14482-881-000

COLLAR A, VALVE ROCKER ARM

$4.49

$

Usually ships in 3-6 days

0

11

Honda 14483-881-000

COLLAR B, VALVE ROCKER ARM

$4.99

$

Usually ships in 3-6 days

0

12

Honda 14711-ZA0-003

SEE PART DETAILS - PRI; VALVE, IN.

$24.99

$

Usually ships in 3-6 days

0

13

Honda 14721-ZA0-003

SEE PART DETAILS - SUP; VALVE, EX.
(Superseded to 14721-ZA0-013)

Note: Use up to Engine SN 1107750.

$48.99

$

Usually ships in 3-6 days

0

13

Honda 14721-ZA0-013

SEE PART DETAILS - PRI; VALVE, EX.

$48.99

$

Usually ships in 3-6 days

0

14

Honda 14753-921-010

SPRING, VALVE

$6.99

$

Usually ships in 3-6 days

0

15

Honda 14771-881-000

RETAINER, VALVE SPRING

$5.99

$

Usually ships in 3-6 days

0

16

Honda 14771-935-810

RETAINER, VALVE SPRING

$12.99

$

Usually ships in 3-6 days

0

17

Honda 14772-881-000

ROTATOR, VALVE

$5.49

$

Usually ships in 3-6 days

0

18

Honda 14775-921-000

SEAT, VALVE SPRING

$2.99

$

Usually ships in 3-6 days

0

19

Honda 14781-235-000

COTTER, VALVE

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90012-333-000

SCREW, TAPPET ADJ.

$4.49

$

In Stock, Qty 20+

0

21

Honda 90017-935-000

BOLT, HEAD (8X70)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90019-881-000

BOLT, HEX. (8X55)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90206-001-000

NUT, TAPPET ADJ.

$2.49

$

In Stock, Qty 20+

0

24

Honda 90402-822-000

WASHER, HEAD (8MM)

$2.49

$

In Stock, only 2 left!

0

25

Honda 90453-235-000

WASHER, THRUST (16MM)

$2.99

$

In Stock, only 1 left!

0

26

Honda 91206-921-000

OIL SEAL (16X28X6)

$10.99

$

In Stock, only 1 left!

0

27

Honda 92200-08100-0H

BOLT, HEX. (8X100)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.99

$

In Stock, only 1 left!

0

29

Honda 98076-54747

SPARK PLUG (BPR4HS) (NGK)

$3.99

$

In Stock, Qty 20+

0

29

Honda 98076-55747

SPARK PLUG (BPR5HS) (NGK)

$3.99

$

In Stock, Qty 5

0
