HT3813 K1 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5100001 - HT3813-5199999) MUFFLER (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

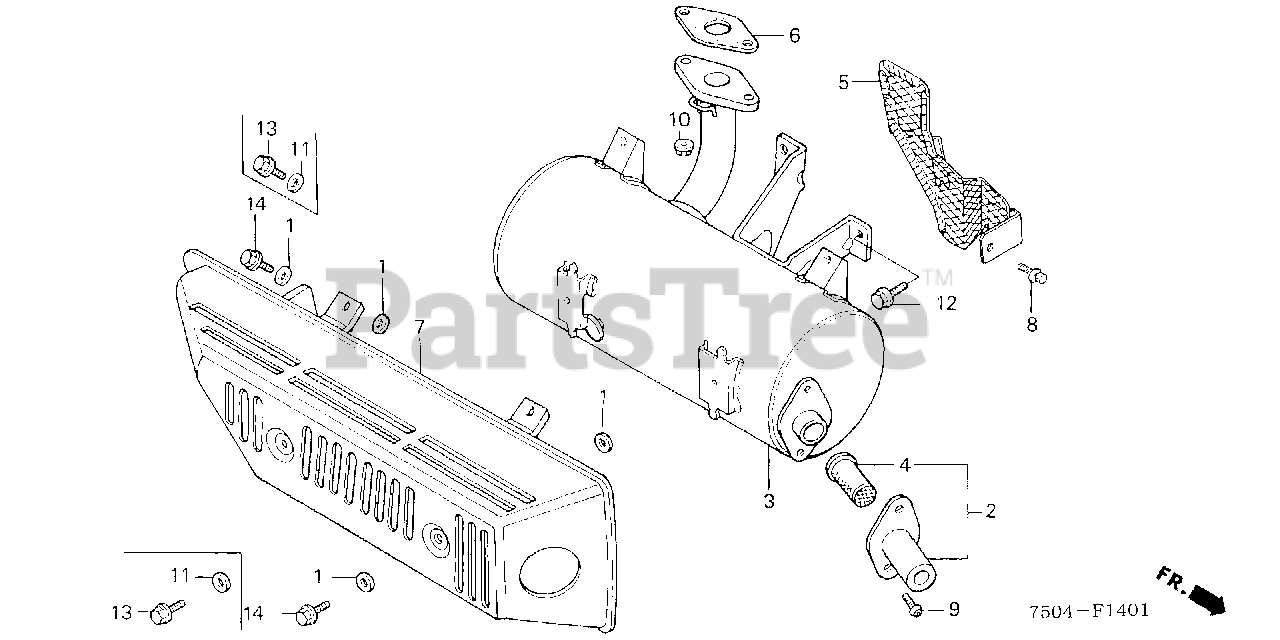

MUFFLER (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 18292-MM9-740

GASKET, PROTECTOR

$3.99

$

Usually ships in 3-6 days

0

2

Honda 183A5-ZA0-630

CAP SET, ARRESTER

$

$

Not available

3

Honda 18310-750-802

MUFFLER

$

$

Currently unavailable

4

Honda 18355-890-630

ARRESTER, SPARK

$15.99

$

Usually ships in 3-6 days

0

5

Honda 18375-750-802

SCREEN, EX. COVER

$

$

Currently unavailable

6

Honda 18381-889-306

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-889-800)

$5.99

$

Usually ships in 3-6 days

0

6

Honda 18381-889-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$5.99

$

Usually ships in 3-6 days

0

7

Honda 60115-750-801

COVER, HOOD SIDE

$

$

Currently unavailable

8

Honda 93404-06032-08

BOLT-WASHER (6X32)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

10

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$1.99

$

In Stock, Qty 6

0

14

Honda 96001-06014-07

BOLT, FLANGE (6X14)

$1.49

$

Usually ships in 3-6 days

0
