HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) COUNTERSHAFT + DIFFERENTIAL GEAR Parts Diagram

Lawn Tractor, Made in Japan

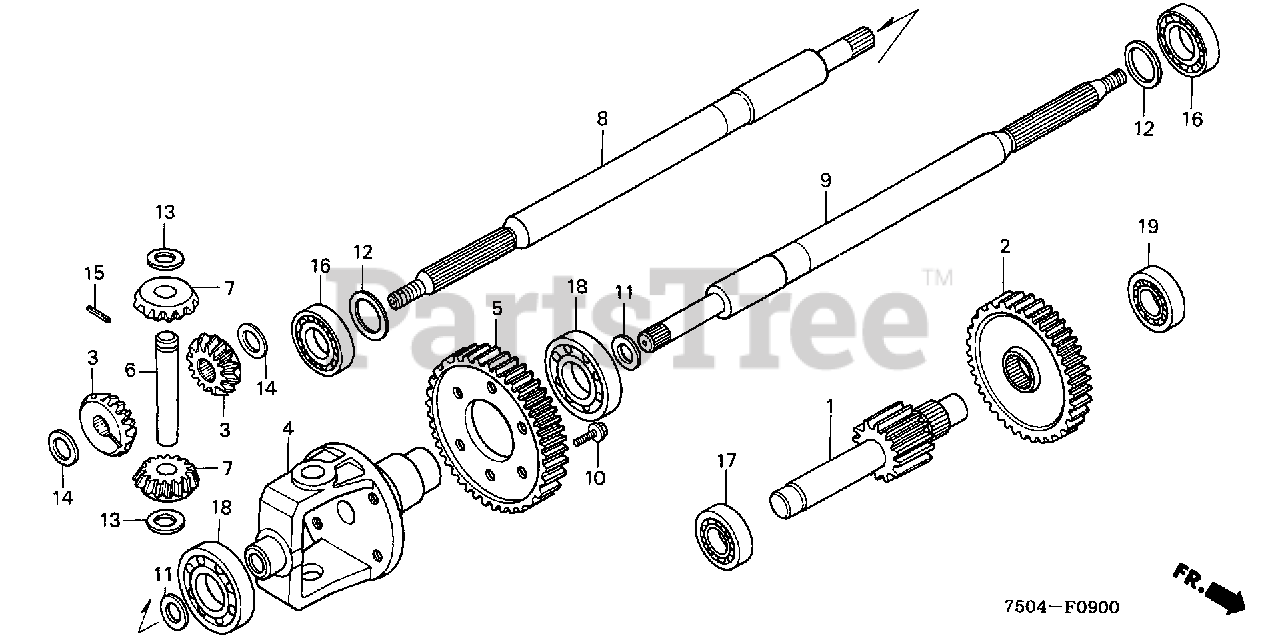

COUNTERSHAFT + DIFFERENTIAL GEAR Parts Diagram

  • Title

1

Honda 23214-750-000

COUNTERSHAFT

$

$

Not available

2

Honda 23612-750-000

GEAR, COUNTERSHAFT DRIVEN (52T)

$

$

Not available

3

Honda 41241-750-000

GEAR, DIFFERENTIAL (16T)

$

$

Currently unavailable

4

Honda 41311-750-000

CASE, DIFFERENTIAL GEAR (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 41312-750-000

GEAR, FINAL DRIVEN (49T)

$161.99

$

Usually ships in 3-6 days

0

6

Honda 41321-750-000

SHAFT, DIFFERENTIAL PINION

$21.99

$

Usually ships in 3-6 days

0

7

Honda 41341-750-000

PINION, DIFFERENTIAL (16T)

$79.99

$

Usually ships in 3-6 days

0

8

Honda 41410-750-000

SEE PART DETAILS - SUP; SHAFT, R. AXLE

Note: Use up to Frame SN 5022786.

$

$

Not available

8

Honda 41410-750-010

SEE PART DETAILS - SUP; SHAFT, R. AXLE

Note: Use up to Frame SN 5022786.

$

$

Not available

8

Honda 41410-750-020

SEE PART DETAILS - PRI; SHAFT, R. AXLE (NOT AVAILABLE)

Note: Use from Frame SN 5022787.

$

$

Currently unavailable

9

Honda 41420-750-000

SEE PART DETAILS - SUP; SHAFT, L. AXLE

Note: Use up to Frame SN 5022786.

$

$

Not available

9

Honda 41420-750-010

SEE PART DETAILS - SUP; SHAFT, R. AXLE

Note: Use up to Frame SN 5022786.

$

$

Not available

9

Honda 41420-750-020

SEE PART DETAILS - PRI; SHAFT, L. AXLE (NOT AVAILABLE)

Note: Use from Frame SN 5022787.

$

$

Currently unavailable

10

Honda 90113-750-000

BOLT, SPECIAL (10X20)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90501-750-000

WASHER, RR. AXLE (20MM)

$

$

Currently unavailable

12

Honda 90502-750-000

WASHER, RR. MIDDLE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 90521-750-000

WASHER A, DIFFERENTIAL PINION

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90522-750-000

WASHER B, DIFFERENTIAL PINION

$

$

Not available

13

Honda 90523-750-000

WASHER C, DIFFERENTIAL PINION

$

$

Not available

13

Honda 90524-750-000

WASHER D, DIFFERENTIAL PINION

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90525-750-000

WASHER, DIFFERENTIAL GEAR

$4.99

$

In Stock, only 4 left!

0

15

Honda 94305-40322

PIN, SPRING (4X32)

$2.99

$

In Stock, only 2 left!

0

16

Honda 96100-60050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6005)

$13.99

$

Usually ships in 3-6 days

0

17

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$28.99

$

Usually ships in 3-6 days

0

19

Honda 96100-63040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6304)

$17.99

$

Usually ships in 3-6 days

0
