HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) SEAT Parts Diagram

Lawn Tractor, Made in Japan

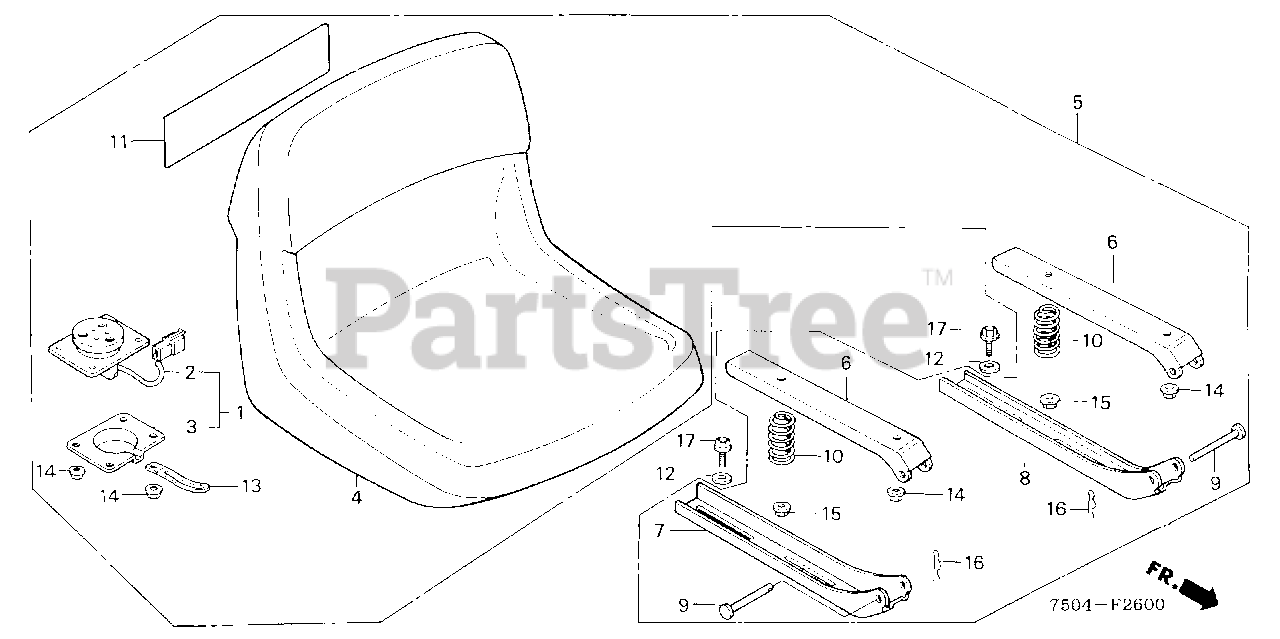

SEAT Parts Diagram

  • Title

2

Honda 35801-750-A01

SEE PART DETAILS - PRI; SWITCH, SEAT

$

$

Not available

2

Honda 35801-750-013

SEE PART DETAILS - SUP; SWITCH, SEAT
(Superseded to 35801-750-A01)

$

$

Not available

3

Honda 35802-750-000

COVER, SEAT SWITCH

$

$

Currently unavailable

5

Honda 77200-750-003

SEE PART DETAILS - SUP; SEAT ASSY.

$

$

Not available

6

Honda 77223-750-003

BASE, SEAT (UPPER)

$58.99

$

Usually ships in 3-6 days

0

7

Honda 77224-750-003

BASE, R. SEAT (LOWER)

$58.99

$

Usually ships in 3-6 days

0

8

Honda 77225-750-003

BASE, L. SEAT (LOWER)

$58.99

$

Usually ships in 3-6 days

0

9

Honda 77226-750-003

PIN, SEAT BASE (8MM)

$5.99

$

Usually ships in 3-6 days

0

10

Honda 77228-750-003

SPRING, SEAT

$13.99

$

Usually ships in 3-6 days

0

11

Honda 87113-750-010

MARK, SEAT

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90504-SA0-000

WASHER, PLAIN (10MM)

$8.99

$

Usually ships in 3-6 days

0

13

Honda 91406-657-671

CLIP, WIRE HARNESS

$13.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0

15

Honda 94071-06080

NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94251-08000

PIN, LOCK (8MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 5

0
