HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) THERMOSTAT (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

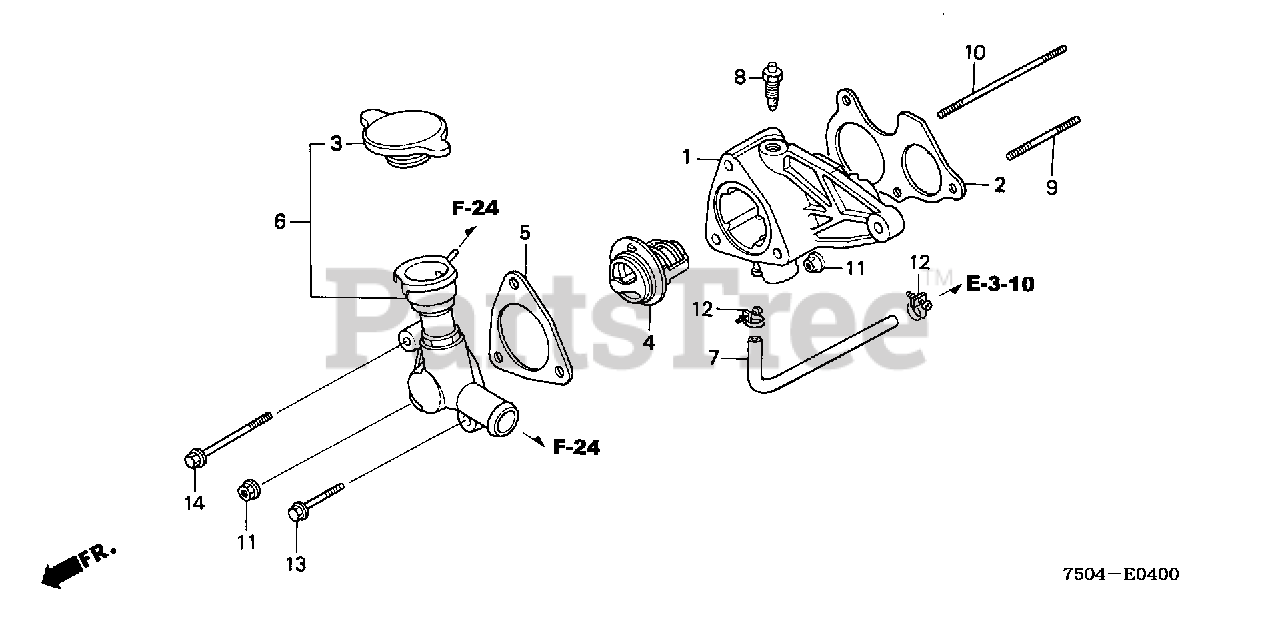

THERMOSTAT (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 04101-ZA0-930

SEE PART DETAILS - PRI; CASE, THERMOSTAT

Note: Use up to Engine SN 1101215.

$

$

Currently unavailable

1

Honda 16560-ZA0-930

SEE PART DETAILS - SUP; CASE, THERMOSTAT

Note: Use up to Engine SN 1101215.

$

$

Not available

1

Honda 16560-ZA0-931

CASE, THERMOSTAT

Note: Use from Engine SN 1101216.

$

$

Not available

2

Honda 16563-ZA0-306

SEE PART DETAILS - SUP; GASKET, GOVERNOR CASE
(Superseded to 16563-ZA0-800)

$10.99

$

In Stock, only 1 left!

0

2

Honda 16563-ZA0-800

SEE PART DETAILS - PRI; GASKET, GOVERNOR CASE

$10.99

$

In Stock, only 1 left!

0

3

Honda 19045-692-003

CAP, RADIATOR (DENSO)

$62.99

$

Usually ships in 3-6 days

0

4

Honda 19310-ZA0-701

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

$77.99

$

In Stock, only 2 left!

0

5

Honda 19318-ZA0-306

SEE PART DETAILS - SUP; GASKET, THERMOSTAT COVER
(Superseded to 19318-ZA0-800)

$5.99

$

In Stock, only 2 left!

0

5

Honda 19318-ZA0-800

SEE PART DETAILS - PRI; GASKET, THERMOSTAT COVER

$5.99

$

In Stock, only 2 left!

0

6

Honda 19320-ZA0-700

COVER, THERMOSTAT

$

$

Not available

7

Honda 19508-ZA0-000

HOSE, WATER BYPASS

$10.99

$

In Stock, only 1 left!

0

8

Honda 19516-PC1-000

SEE PART DETAILS - PRI; BOLT, BREATHING WATER

$30.99

$

Usually ships in 3-6 days

0

9

Honda 92900-06025-1B

BOLT, STUD (6X25)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 92900-06060-0B

BOLT, STUD (6X60)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 9

0

12

Honda 95002-01130

CLIP, TUBE (A13)

$7.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06065-08

BOLT, FLANGE (6X65)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 95700-06090-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X90)
(Superseded to 95701-06090-08)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 95701-06090-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X90)

$2.49

$

Usually ships in 3-6 days

0
