HT4213 SA (MAAT) - Honda Lawn Tractor, Made in Japan (SN: MAAT-5000001 - MAAT-5099999) AIR CLEANER (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

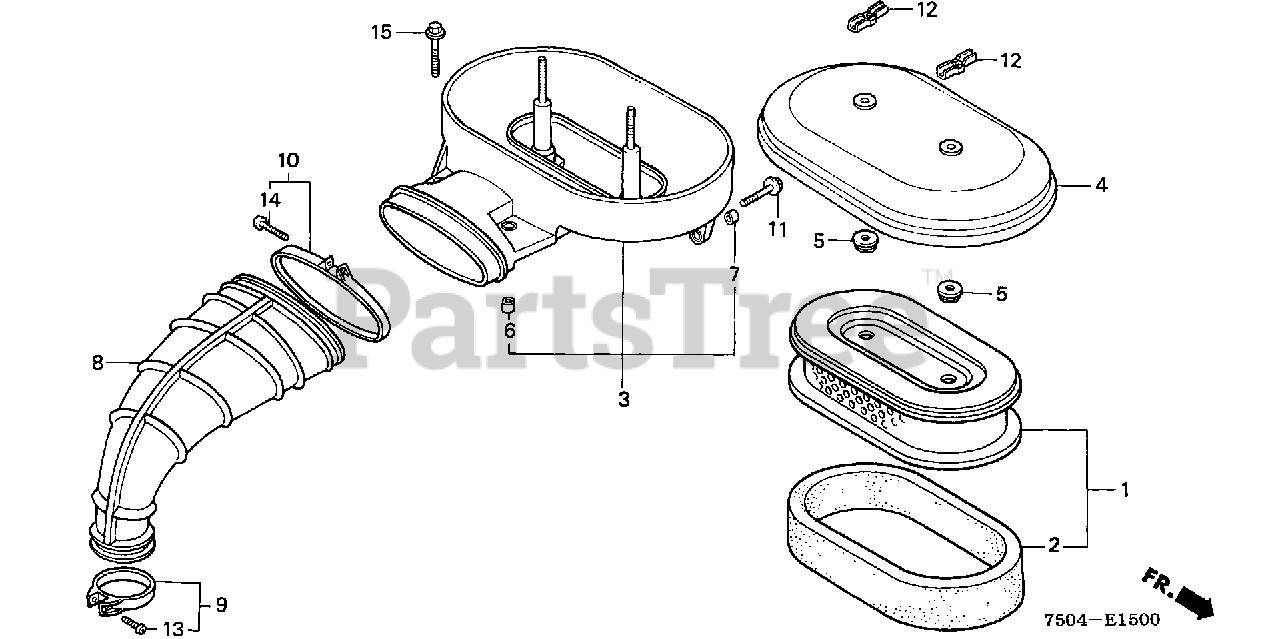

AIR CLEANER (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 17211-ZA0-702

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZA0-506)

$53.99

$

Usually ships in 3-6 days

0

2

Honda 17218-ZA0-701

SEE PART DETAILS - SUP; FILTER (OUTER)

$

$

Not available

3

Honda 17220-ZA0-700

HOUSING, AIR CLEANER

$92.99

$

Usually ships in 3-6 days

0

4

Honda 17231-ZA0-700

COVER, AIR CLEANER

$39.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.49

$

In Stock, Qty 15

0

6

Honda 17238-ZA0-700

COLLAR A, AIR CLEANER

$4.49

$

Usually ships in 3-6 days

0

7

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.49

$

In Stock, Qty 9

0

8

Honda 17251-ZA0-700

TUBE, AIR CLEANER CONNECTING

$43.99

$

Usually ships in 3-6 days

0

9

Honda 17255-ZA0-000

BAND, CONNECTING TUBE

$9.49

$

Usually ships in 3-6 days

0

10

Honda 17260-ZA0-700

BAND ASSY., CONNECTING TUBE

$13.99

$

Usually ships in 3-6 days

0

11

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

In Stock, Qty 17

0

12

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

$9.49

$

In Stock, Qty 6

0

13

Honda 93500-04016-0A

SCREW, PAN (4X26)

$0.99

$

In Stock, Qty 7

0

14

Honda 93500-04025-0A

SCREW, PAN (4X25)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95700-06035-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X35)

$

$

Currently unavailable

15

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 4 left!

0
