HT4213 SA (MAAT) - Honda Lawn Tractor, Made in Japan (SN: MAAT-5000001 - MAAT-5099999) STEERING WHEEL + STEERING SHAFT Parts Diagram

Lawn Tractor, Made in Japan

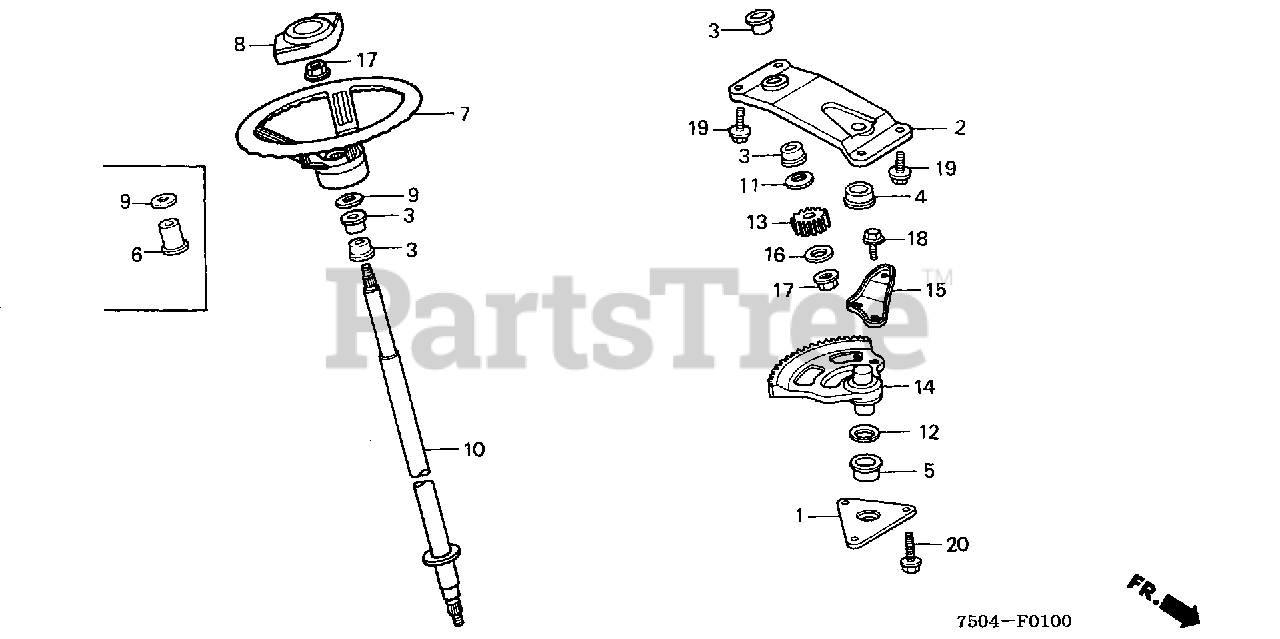

STEERING WHEEL + STEERING SHAFT Parts Diagram

  • Title

1

Honda 50341-750-000

HOLDER, STEERING GEAR

$

$

Not available

2

Honda 53040-750-000

BOX, STEERING GEAR

$80.99

$

Usually ships in 3-6 days

0

3

Honda 53055-750-000

BUSH (17X22X15)

$10.99

$

Usually ships in 3-6 days

0

4

Honda 53056-750-000

BUSH (22X27X15)

$

$

Not available

5

Honda 53057-750-000

BUSH (22X27X10) (NOT AVAILABLE)

$

$

Not available

6

Honda 53058-750-000

BUSH (17X22X26)

$

$

Currently unavailable

7

Honda 53110-750-611

WHEEL, STEERING

$

$

Not available

8

Honda 53122-750-611

PAD, CENTER

$

$

Currently unavailable

9

Honda 53222-579-000

WASHER, STEERING COLUMN

$16.99

$

Usually ships in 3-6 days

0

10

Honda 53310-750-A00

SHAFT, STEERING

$145.99

$

Usually ships in 3-6 days

0

11

Honda 53312-750-000

WASHER B, STEERING GEAR

$4.49

$

Usually ships in 3-6 days

0

12

Honda 53313-750-000

WASHER A, STEERING GEAR

$

$

Not available

13

Honda 53421-750-000

GEAR, STEERING DRIVE

$

$

Not available

14

Honda 53423-750-000

GEAR, STEERING DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 53425-750-010

SEE PART DETAILS - PRI; ARM, TIE ROD

$

$

Not available

16

Honda 90440-166-000

SEE PART DETAILS - SUP; WASHER, PLAIN (12MM)
(Superseded to 90440-GT4-970)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90380-SB2-003

NUT, SELF-LOCK

$1.99

$

In Stock, only 3 left!

0

18

Honda 90117-HA7-670

BOLT, FLANGE (8X18)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$1.99

$

In Stock, Qty 6

0

20

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, only 2 left!

0
