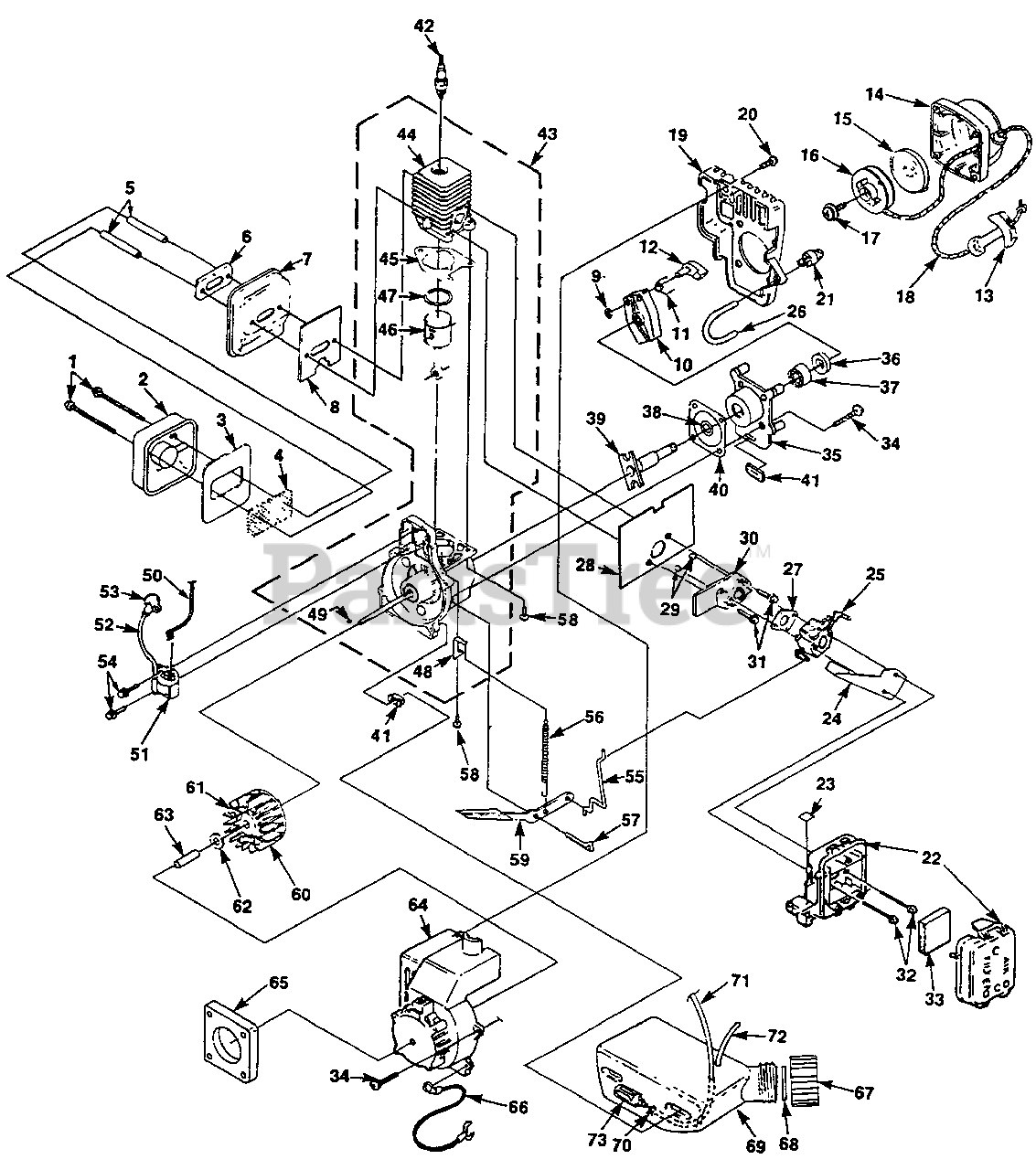

HTC 12 (UT-22089-B) - Homelite Tiller Engine Parts Diagram

Tiller

Engine Parts Diagram

  • Title

1

Homelite 88060

SCREW- Sems hex hd. (10-24 x 2 1/2")
(Superseded to 660673001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite A04312

COVER- Muffler

$

$

Not available

3

Homelite 98782

BAFFLE- Muffler
(Superseded to UP05878)

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 98784A

SCREEN- Spark

$

$

Currently unavailable

5

Homelite 98860A

SPACER- Muffler
(Superseded to 04785)

$

$

Not available

6

Homelite 98783

PLATE- Reinforcing

$

$

Not available

7

Homelite A01323

BODY- Muffler
(Superseded to A04837)

$

$

Not available

8

Homelite 98786B

GASKET- Muffler

$

$

Currently unavailable

9

Homelite 0401808

RING- Retaining
(Superseded to UP04879)

$

$

Not available

10

Homelite 0401801

CUP- Starter
(Superseded to UP04879)

$

$

Not available

11

Homelite 0401803

SPRING
(Superseded to UP04879)

$

$

Not available

12

Homelite 0401802

PAWL- Starter
(Superseded to UP04879)

$

$

Not available

13

Homelite 0406902

GRIP- Starter

$

$

Not available

14

Homelite 0406901

HOUSING- Starter

$

$

Not available

15

Homelite 0406906

SPRING- Recoil
(Superseded to UP04871)

$

$

Not available

16

Homelite 0406905

PULLEY
(Superseded to UP04880)

$113.99

$

Usually ships in 3-7 days

0

17

Homelite 0406904

SCREW- Set

$

$

Not available

18

Homelite 0406903

ROPE- Starter

$

$

Not available

19

Homelite 04023

COWLING- Engine
(Superseded to UP05884)

$

$

Not available

20

Homelite 82541

SCREW- Truss hd. (#10 x 1/2")

$2.49

$

In Stock, only 3 left!

0

21

Homelite 01183

BULB- Primer
(Superseded to 300780002)

$

$

Not available

22

Homelite A01440A

AIR FILTER BOX ASSEMBLY
(Superseded to A04707A)

Note: Includes Item #23.

$

$

Not available

23

Homelite 00772

DECAL- Choke

$

$

Not available

24

Homelite 03808

BRACKET- Cable mounting

$

$

Not available

25

Homelite A03739

CARBURETOR
(Superseded to UP00078)

$

$

Not available

26

Homelite 0143916

RUBBER TUBING (4")

$5.99

$

In Stock, Qty 6

0

27

Homelite 98766A

GASKET- Carburetor
(Superseded to 900994004)

$

$

Not available

28

Homelite 01104

GASKET- Heat Dam

$

$

Not available

29

Homelite 81208

NUT- Hex lock (10-24)

$

$

Not available

30

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

31

Homelite 825491

SCREW- Thd. Forming (10-24 x 1")
(Superseded to UP05542)

$

$

Not available

32

Homelite 82542

SCREW- Truss hd.(10-24 x 2 1/4")

$5.99

$

Usually ships in 3-7 days

0

33

Homelite D98760A

AIR FILTER

$

$

Currently unavailable

34

Homelite 82538

SCREW- Truss hd. (10-24 x 3/4")

$2.49

$

Usually ships in 3-7 days

0

35

Homelite A04017

COVER- Crankcase

Note: Includes Item Nos. 36-39.

$

$

Currently unavailable

36

Homelite 98800

SEAL-Shaft

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 00270A

BEARING- Ball
(Superseded to UP07197)

$

$

Not available

38

Homelite 03632

SPACER
(Superseded to UP08579)

$9.49

$

Usually ships in 3-7 days

0

39

Homelite 04016

SHAFT- Starter
(Superseded to 04016B)

$

$

Not available

40

Homelite 98767A

GASKET- Crank Cover

$

$

Not available

41

Homelite 98792

BUMPER- Rubber

$

$

Not available

42

Homelite 96169S

SPARK PLUG
(Superseded to UP03883)

$5.49

$

In Stock, only 4 left!

0

43

Homelite A03710

SHORT BLOCK

Note: Includes Item Nos. 44-49.

$

$

Currently unavailable

44

Homelite A03785A

CYLINDER & GASKET
(Superseded to UP07146A)

$

$

Not available

45

Homelite 03703A

GASKET- Cylinder
(Superseded to UP03857)

$

$

Not available

46

Homelite A03705

PISTON & ROD

$

$

Currently unavailable

47

Homelite 03179

RING- Piston
(Superseded to 690161005)

$

$

Not available

48

Homelite 00470

BRACKET- Governor Spring

$

$

Not available

49

Homelite 69250

KEY- Woodruff

$

$

Not available

50

Homelite A03649

LEAD- Electrical
(Superseded to UP07776)

$

$

Not available

51

Homelite 94711CS

MODULE- Ignition

Note: Includes Item #52.

$

$

Not available

52

Homelite 69326

LEAD

$

$

Not available

53

Homelite A33055

TERMINAL

$

$

Not available

54

Homelite 82540

SCREW- Taptite (8-32 x 1")

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 03628

ROD- Governor

$

$

Not available

56

Homelite 02242

SPRING- Extension

$

$

Not available

57

Homelite JA460014

PIN- Cotter

$

$

Not available

58

Homelite 82569

SCREW- Thd. forming (10-24 x 3/4")
(Superseded to 825691)

$

$

Not available

59

Homelite 03627

VANE- Governor

$

$

Not available

60

Homelite A04158

ROTOR & STARTER PAWL KIT
(Superseded to UP03856)

Note: Includes Item #61.

$

$

Not available

61

Homelite A70285E

STARTER PAWL KIT

$118.99

$

Usually ships in 3-7 days

0

62

Homelite 95479A

WASHER- Flat

$

$

Not available

63

Homelite 035662

SPACER
(Superseded to UP04118)

$

$

Not available

64

Homelite A012379

HOUSING
(Superseded to UP05887)

$

$

Not available

65

Homelite 03626

SPACER- Engine

$

$

Not available

66

Homelite A03547

WIRE- Ground

$

$

Not available

67

Homelite A00982A

FUEL CAP

Note: Includes Item #68.

$

$

Currently unavailable

68

Homelite 98805A

GASKET- Fuel cap

$

$

Not available

69

Homelite A04036

TANK- Fuel

Note: Includes Item Nos. 69-73.

$

$

Not available

70

Homelite 98268

CLAMP- Wire
(Superseded to 690765001)

$2.49

$

In Stock, Qty 5

0

71

Homelite 9477245

TUBING- Rubber

$

$

Not available

72

Homelite 0143924

TUBING- Rubber (6")

$

$

Not available

73

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

Homelite 04193

REPAIR KIT

$

$

Not available

Homelite 04194

GASKET/DIAPHRAGM KIT

$

$

Not available
