HTC 12 (UT-22089-C) - Homelite Tiller Tiller Parts Diagram

Tiller

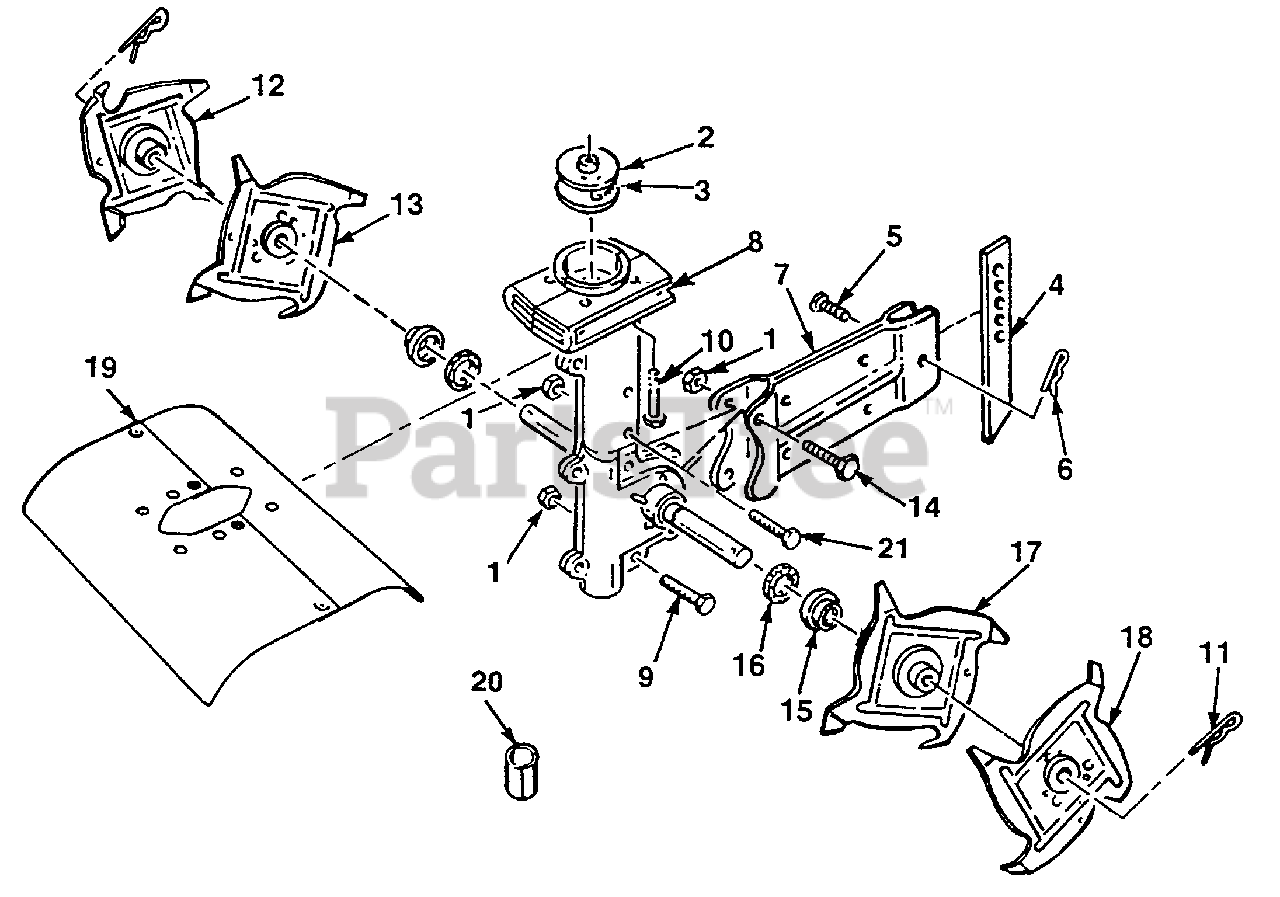

Tiller Parts Diagram

  • Title

1

Homelite 81204

NUT- (1/4-20)

$6.49

$

Usually ships in 3-7 days

0

2

Homelite 0107539

CLUTCH

$

$

Not available

3

Homelite 0107553

SPRING- Clutch
(Superseded to UP05896)

$26.99

$

Usually ships in 3-7 days

0

4

Homelite 0107520

DRAG STAKE
(Superseded to UP05897)

$

$

Not available

5

Homelite JA461451

PIN- Clevis (5/16 x 7/8")

$

$

Currently unavailable

6

Homelite 0107566

HAIRPIN

$

$

Not available

7

Homelite 0107570

DRAG STAKE BRACKET ASSEMBLY
(Superseded to UP05915)

$55.99

$

Usually ships in 3-7 days

0

8

Homelite 0103102

TRANSMISSION ASSEMBLY

$

$

Currently unavailable

9

Homelite 80052

SCREW- Hex hd. (1/4-20 x 3/4")

$

$

Not available

10

Homelite 88058

SCREW- Hex washer (10-24 x 2 1/2")

$

$

Not available

11

Homelite 0107590

HAIRPIN- Cotter (3/4")

$

$

Not available

12

Homelite 0107505

TINE AND HUB (R.H.) Outboard (D)

$

$

Not available

13

Homelite 0107509

TINE AND HUB (R.H.) Inboard (C)

$

$

Not available

14

Homelite 82496

SCREW- (1/4-20 x 1")

$

$

Not available

15

Homelite 0107551

DIRT CAP- Black Plastic
(Superseded to UP05909)

$

$

Not available

16

Homelite 0107583

WASHER- Felt (1/8 x 3/4 x 1 1/2")
(Superseded to UP05908)

$6.99

$

Usually ships in 3-7 days

0

17

Homelite 0107513

TINE AND HUB (L.H.) Inboard (B)

$

$

Not available

18

Homelite 0107512

TINE AND HUB (L.H.) Outboard (A)

$

$

Not available

19

Homelite 0103101

SHIELD ASSEMBLY

$

$

Not available

20

Homelite 0107548

TINE SPACERS

$

$

Not available

21

Homelite 80388

SCREW- Hex hd. (1/4-20 x 1 1/4")

$

$

Not available
