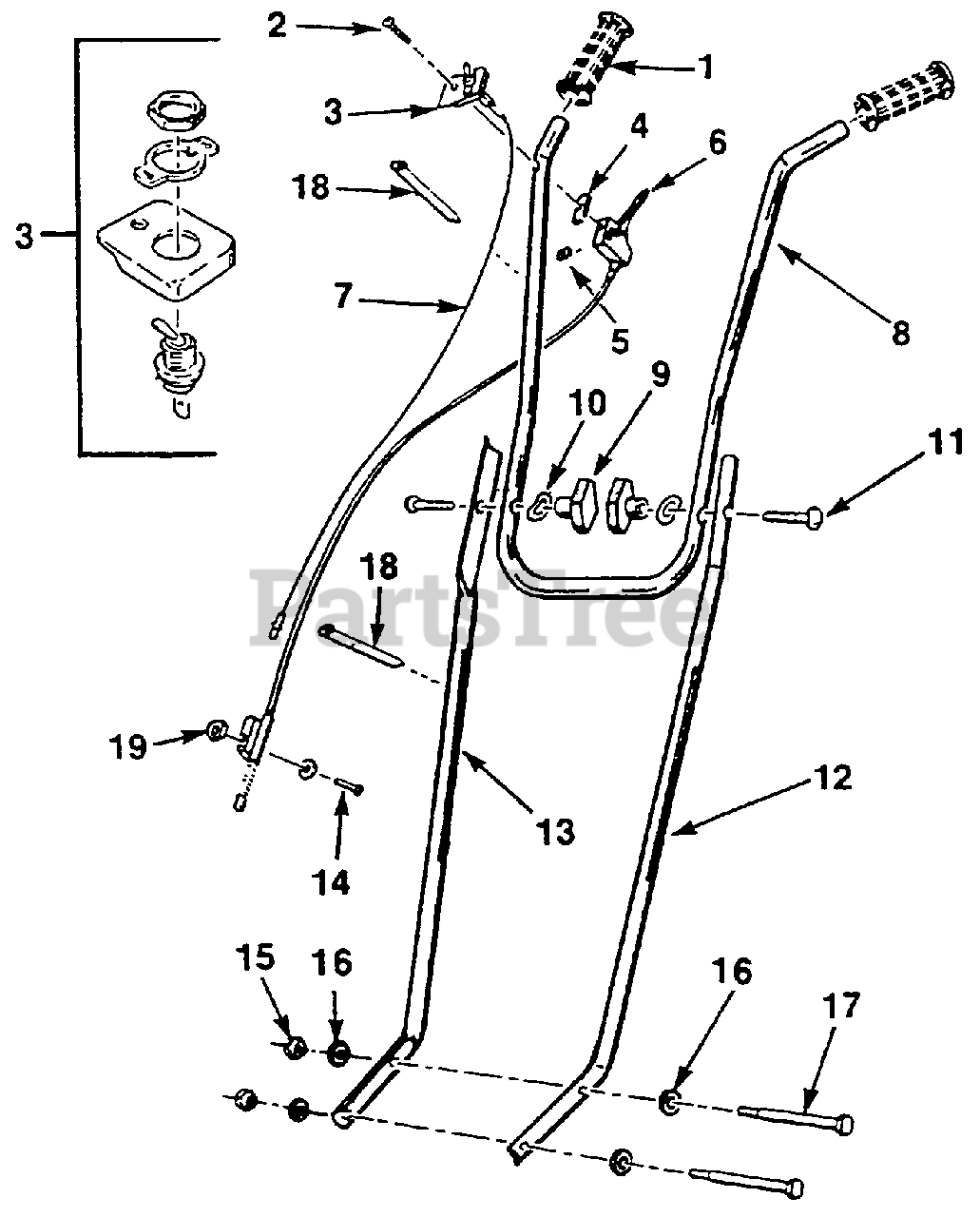

HTC 12 (UT-22089) - Homelite Tiller Handles and Controls Parts Diagram

Tiller

Handles and Controls Parts Diagram

  • Title

1

Homelite 0107568

GRIP- Handlebar

$

$

Not available

2

Homelite 0107559

SCREW- Set (#10-24 x 1 3/8")

$

$

Not available

3

Homelite 0107515

SWITCH ASSEMBLY-w/Mounting Plate

$

$

Not available

4

Homelite 0107560

ISOLATOR- Trigger

$

$

Not available

5

Homelite 0107561

NUT- Throttle/Switch Assy.

$

$

Not available

6

Homelite 0107540

THROTTLE CABLE ASSEMBLY w/Throttle Trigger

$

$

Not available

7

Homelite A03649

GROUND WIRE ASSEMBLY
(Superseded to UP07776)

$

$

Not available

8

Homelite 0107519

HANDLEBAR- Upper

$

$

Not available

9

Homelite 0107564

KNOB- Plastic Handlebar (5/16")

$

$

Not available

10

Homelite 0107562

WASHER- Curved Knob (5/16")

$

$

Not available

11

Homelite 0107556

SCREW- Curved Head (5/16-18 x 1 1/2")

$

$

Not available

12

Homelite 0107546

HANDLEBAR- Lower (L.H.)
(Superseded to UP05916)

$

$

Not available

13

Homelite 0107544

HANDLEBAR- Lower (R.H.)

$

$

Not available

14

Homelite 88044

SCREW- Hex hd. (#8-32 x 1")

$

$

Not available

15

Homelite 81204

NUT- Flex-lock (1/4-20)

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 0107562

WASHER- Curved (5/16")

$

$

Not available

17

Homelite JA400134

SCREW (1/4-20 x 4 1/2")

$

$

Currently unavailable

18

Homelite 0107558

TIE STRAP
(Superseded to UP05918)

$

$

Not available

19

Homelite 81009

NUT- Hex (8-32)

$

$

Not available
