HTP 2 (UT-01601) - Homelite Pump Pump And Skids Parts Diagram

Pump

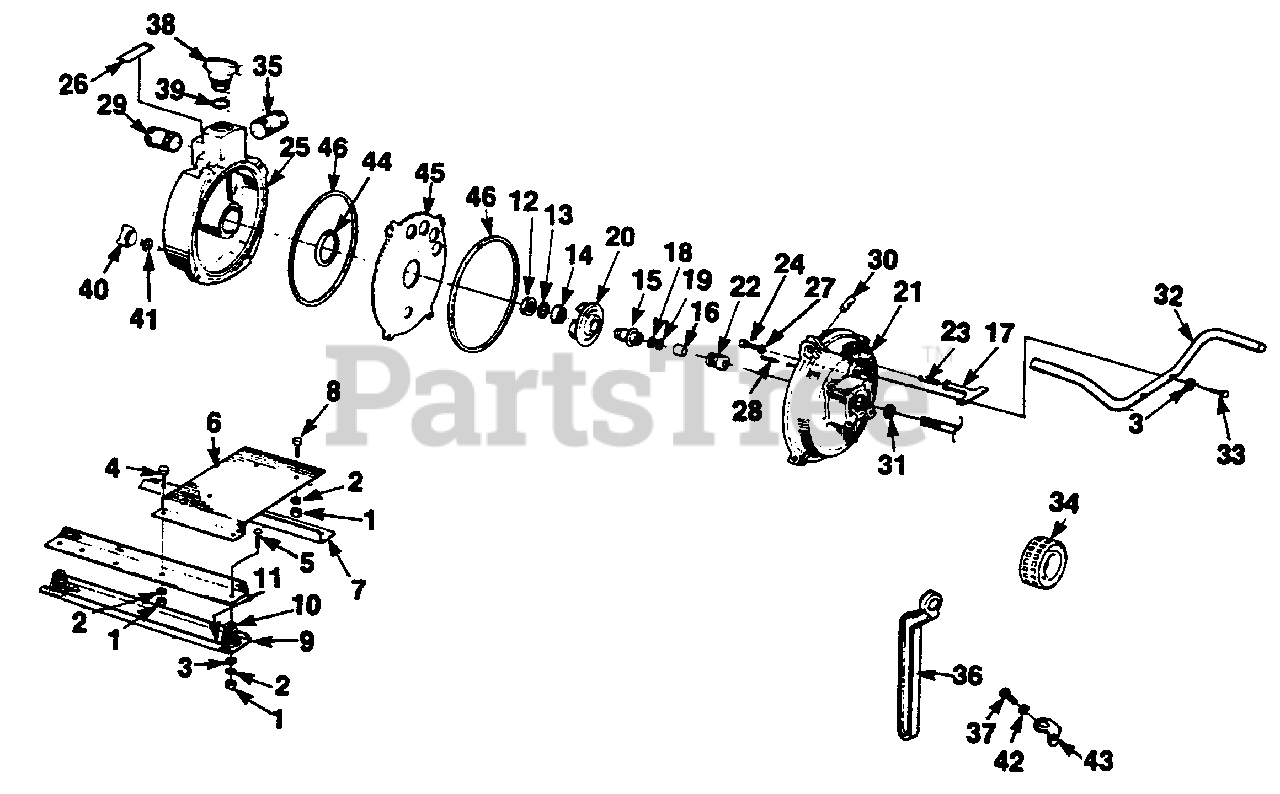

Pump And Skids Parts Diagram

  • Title

1

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

2

Homelite 83002

WASHER-Lock (5/16)
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

3

Homelite 84032

WASHER-Flat (5/16

$

$

Not available

4

Homelite 80695

SCREW-Hex hd. (5/16-18 x 3/4")
(Superseded to UP03381)

$

$

Not available

5

Homelite 80085

SCREW-Hex hd. (5/16-18 x 1")

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 546583

ENGINE-Support

$

$

Not available

7

Homelite 740322

ANGLE-Base

$

$

Currently unavailable

8

Homelite 80087

SCREW-Cap hex hd. (5/16-18 x 1 1/2")

$

$

Not available

9

Homelite A-76838

SKID ASSEMBLY

Note: Includes Items 10 & 11.

$

$

Currently unavailable

10

Homelite 50389

SPRING
(Superseded to UP03795)

$

$

Not available

11

Homelite 85025

RIVET

$

$

Not available

12

Homelite 54741

NUT-Impeller
(Superseded to UP06424)

$

$

Not available

13

Homelite 54740

WASHER

$

$

Not available

14

Homelite 54739A

BUSHING-Impeller
(Superseded to UP06423)

$6.99

$

Usually ships in 3-7 days

0

15

Homelite 547381

HUB-Impeller
(Superseded to UP06422)

$

$

Not available

16

Homelite 50516

SPACER-Crankshaft
(Superseded to UP03777)

$

$

Not available

17

Homelite 545502

HANDLE-Disconnect
(Superseded to 545502A)

$

$

Not available

18

Homelite 62882A

SHIM (.010")
(Superseded to UP07026)

$17.99

$

Usually ships in 3-7 days

0

19

Homelite 62883A

SHIM (.015")
(Superseded to UP06439)

$

$

Not available

20

Homelite 541322

IMPELLER-Pump
(Superseded to UP07788)

$

$

Not available

21

Homelite 62874

WASHER-Sealing
(Superseded to UP06437)

$5.99

$

Usually ships in 3-7 days

0

22

Homelite 627131A

SEAL-Shaft

$

$

Not available

23

Homelite 54398

STUD-Handle
(Superseded to UP07774)

$

$

Not available

24

Homelite 80927

SCREW-Mach. hex hd. (5/16-24 x 2 1/4")

$

$

Not available

25

Homelite A-47472

HOUSING-End

Note: Includes Item 26.

$

$

Currently unavailable

26

Homelite 62315

DECAL-Fill pump

$

$

Not available

Homelite 50912

SLEEVE-End housing

Note: (Not Shown)

$

$

Not available

27

Homelite 62874

WASHER-Sealing
(Superseded to UP06437)

$5.99

$

Usually ships in 3-7 days

0

28

Homelite 54660

PIN-Coiled spring

$

$

Not available

29

Homelite 756631

NIPPLE-(2" x 2")
(Superseded to UP03807)

$

$

Not available

30

Homelite 54397

PIVOT-Handle

$

$

Not available

31

Homelite 76885A

SLINGER
(Superseded to UP06453)

$

$

Not available

32

Homelite 00999

HANDLE-Carry (2")

$

$

Not available

33

Homelite 80088

SCREW-Cap hex hd.

$

$

Not available

34

Homelite 54702A

STRAINER-Suction hose
(Superseded to UP08146)

$101.99

$

Usually ships in 3-7 days

0

35

Homelite 541511

NIPPLE-(2" x 3 1/2)

$

$

Not available

36

Homelite 48825

WRENCH
(Superseded to UP03586)

$

$

Not available

37

Homelite 80044

SCREW-Cap hex hd.

$

$

Not available

38

Homelite A-43971

PLUG-Wing

Note: Includes Item 39.

$

$

Not available

39

Homelite 18108

GASKET

$

$

Not available

40

Homelite A-43896

PLUG-Drain

Note: Includes Item 41.

$

$

Currently unavailable

41

Homelite 59910

GASKET

$

$

Not available

42

Homelite 84020

WASHER-Flat (1/4")

$

$

Not available

43

Homelite 624501

HOLDER-Spanner wrench

$

$

Not available

44

Homelite 54069

GASKET-Small
(Superseded to UP06417)

$15.99

$

Usually ships in 3-7 days

0

45

Homelite 541361

PLATE-Wear

$

$

Currently unavailable

46

Homelite 54070A

GASKET-Large
(Superseded to UP06418)

$

$

Not available
