HTP 3 (UT-01602) - Homelite Pump Pump And Skids Parts Diagram

Pump

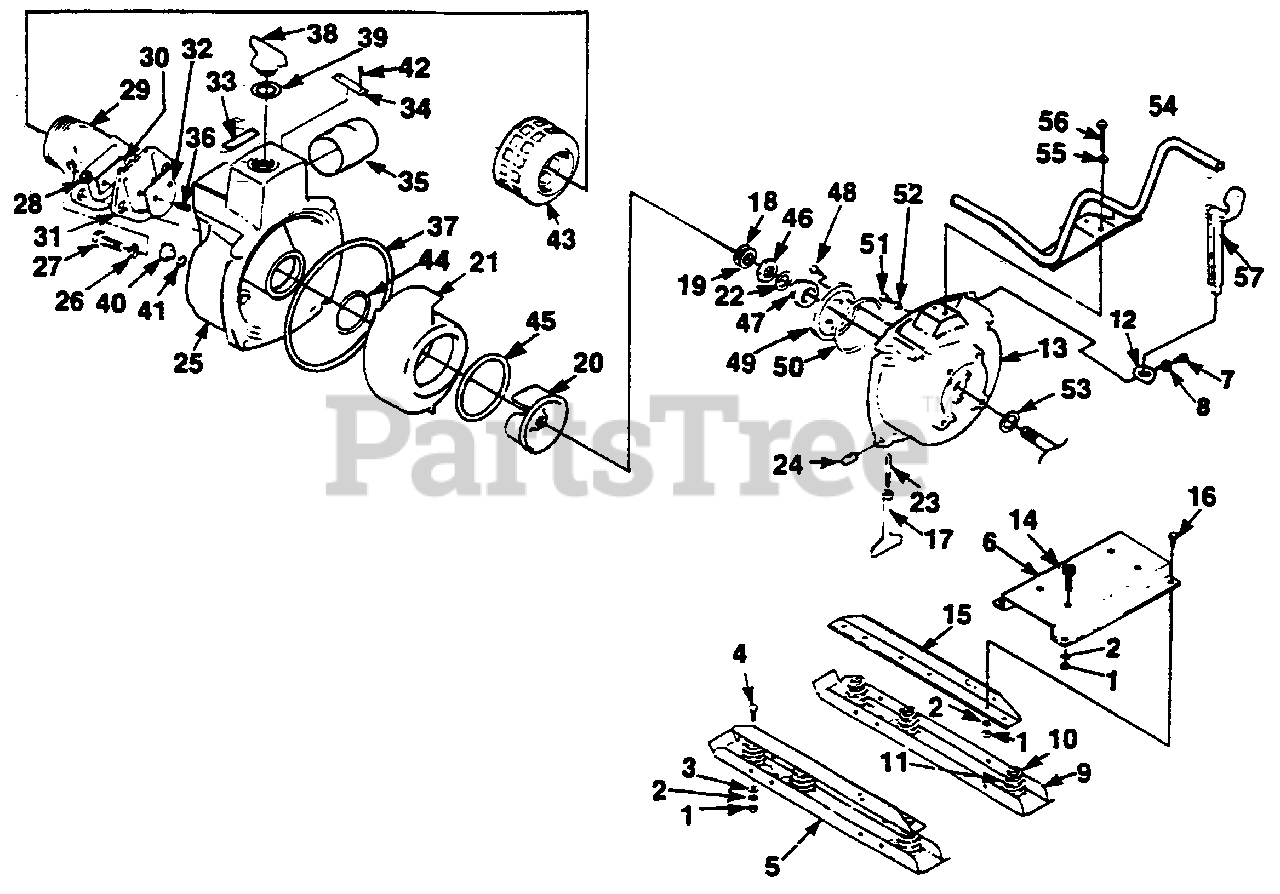

Pump And Skids Parts Diagram

  • Title

1

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

2

Homelite 83002

WASHER-Lock (5/16)
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 84046

WASHER-Flat (5/16)

$

$

Not available

4

Homelite 80085

SCREW-Hex hd. (5/16-18 x 1")

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 626611A

ANGLE-Base (Left)
(Superseded to UP06886)

$

$

Not available

6

Homelite 421211A

BRACKET-Pump engine
(Superseded to UP08577)

$

$

Not available

7

Homelite 80044

SCREW-Hex hd. (1/4-20 x 3/8")

$

$

Not available

8

Homelite 84020

WASHER-Flat (1/4)

$

$

Not available

9

Homelite A62917

SKID-Pump

Note: Includes Items 10 & 11.

$

$

Not available

10

Homelite 85025

RIVET

$

$

Not available

11

Homelite 25407

FOOT-Spring

$

$

Not available

12

Homelite 624501

BRACKET-Spanner Wrench

$

$

Not available

13

Homelite A47651

BODY-Pump
(Superseded to UP07082)

Note: Includes Item 14.

$

$

Not available

14

Homelite 80288

SCREW-Hex hd. (5/16-18 x 1 3/4")
(Superseded to UP03388)

$

$

Not available

15

Homelite 626621A

ANGLE-Base (Right)
(Superseded to UP06430)

$74.99

$

Usually ships in 3-7 days

0

16

Homelite 80695

SCREW-Hex hd. (5/16-18 x 3/4")
(Superseded to UP03381)

$

$

Not available

17

Homelite 548662

HANDLE-Disconnect

$

$

Currently unavailable

18

Homelite 62677

SHIM-Impeller (.032")

$

$

Not available

19

Homelite 62676

SHIM (.015")

$

$

Not available

20

Homelite 626551

IMPELLER
(Superseded to UP06429)

$

$

Not available

21

Homelite 514582

HOUSING-Impeller
(Superseded to UP06411)

$

$

Not available

22

Homelite 62675

SHIM-Impeller (.010")

$

$

Not available

23

Homelite 54398

STUD-Handle
(Superseded to UP07774)

$

$

Not available

24

Homelite 54397

PIVOT-Handle

$

$

Not available

25

Homelite A43404A

HOUSING-End
(Superseded to UP07091)

Note: Includes Items 26 - 36.

$

$

Not available

26

Homelite 83020

WASHER-Lock (1/2")

$

$

Not available

27

Homelite 80272

SCREW-Cap hex hd. (1/2-13 x 1 1/4")

$

$

Not available

28

Homelite 81111

NUT-Hex (10-32)

$

$

Not available

29

Homelite 626576

FITTING-Pump suction

$

$

Not available

30

Homelite 62669

VALVE-Plate

$

$

Not available

31

Homelite 62667

VALVE-Flapper

$

$

Not available

32

Homelite 62668

VALVE-Plate

$

$

Not available

33

Homelite 62315

DECAL

$

$

Not available

34

Homelite 54661

PLATE-Warning

$

$

Not available

35

Homelite 542891

NIPPLE

$

$

Not available

36

Homelite 80032

SCREW (10-32 x 1/2")

$

$

Not available

37

Homelite 62367

GASKET-Pump body
(Superseded to UP06428)

$29.99

$

Usually ships in 3-7 days

0

38

Homelite A43971

PLUG-Filler

Note: Includes Item 39.

$

$

Not available

39

Homelite 18108

GASKET-Wing nut

$

$

Not available

40

Homelite A43896

CAP-Drain & Filler
(Superseded to UP07092)

Note: Includes Item 41.

$

$

Currently unavailable

41

Homelite 59910

GASKET-Drain & Filler Cap

$

$

Not available

42

Homelite 49266

TACK-Metal

$4.99

$

Usually ships in 3-7 days

0

43

Homelite 74454A

STRAINER-Suction
(Superseded to UP07029)

$

$

Not available

44

Homelite 62363A

GASKET-End plate
(Superseded to UP06427)

$6.99

$

Usually ships in 3-7 days

0

45

Homelite 62665A

GASKET-Impeller housing
(Superseded to UP06431)

$

$

Not available

46

Homelite 62716

NUT-Impeller
(Superseded to UP07209)

$

$

Not available

47

Homelite 627131

SEAL-Shaft
(Superseded to 627131A)

$

$

Not available

48

Homelite 80402A

SCREW-Hex cap (1/4-20 x 5/8")
(Superseded to UP07182)

$

$

Not available

49

Homelite 514562

PLATE- Wear
(Superseded to UP07771)

$

$

Not available

50

Homelite 62772

"O" RING
(Superseded to UP06435)

$

$

Not available

51

Homelite 80771B

SCREW-Cap hex hd. (3/8-16 x 1 1/4")

$

$

Not available

52

Homelite 62666

WASHER-Slinger

$

$

Not available

53

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available

54

Homelite A01207

HANDLE-Carry (3")

$

$

Currently unavailable

55

Homelite 83018

WASHER-Lock (3/8")

$

$

Not available

56

Homelite 80187

SCREW-Cap hex hd. (3/8-16 x 7/8")
(Superseded to PS80187)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 200248

WRENCH-Spanner

$

$

Currently unavailable
