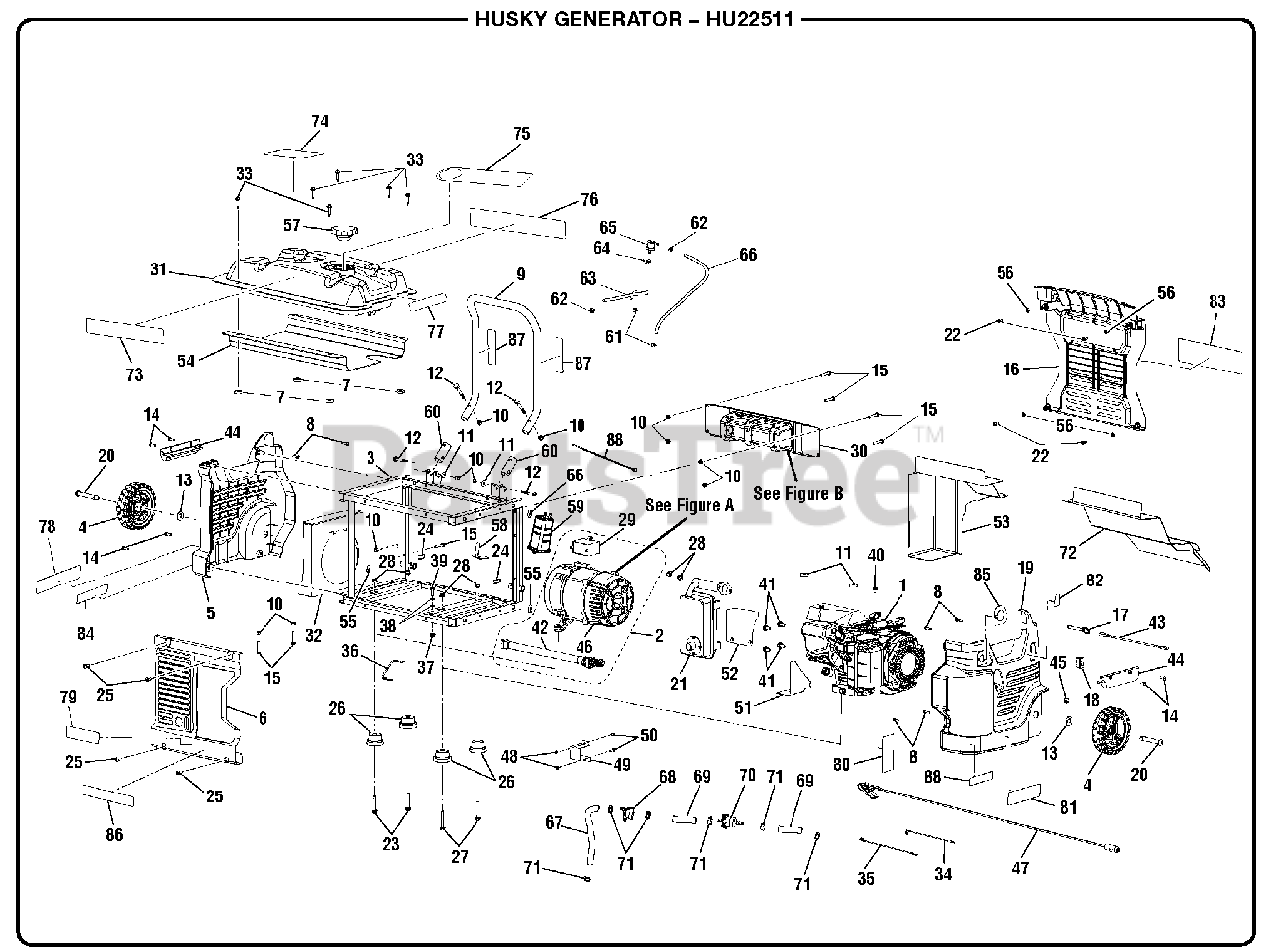

HU 22511 - Husky Portable Generator General Assembly Parts Diagram

Portable Generator

General Assembly Parts Diagram

  • Title

1

Engine (Subaru SP170)

Note: Techtronic Industries North America, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 310227023

Generator Head w/Capacitor

$

$

Not available

3

Homelite 308581018

Frame Assembly

$

$

Not available

4

Homelite 310223003

Wheel

$

$

Not available

5

Homelite 519848001

Panel Cover

$

$

Not available

6

Homelite 638238002

Service Panel

$

$

Not available

7

Homelite 518724002

Nylon Washer (D20 x D8 x 4.5t)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 661537001

Screw (#9-18 x 20 mm)

$

$

Not available

9

Homelite 310224021

Handle Assembly

$

$

Not available

10

Homelite 678016006

Lock Nut (1/4-20 in.)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

12

Homelite 678406008

Bolt (1/4-20 x 2 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660956001

Screw (12-14 x 15 mm)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 661556001

Screw (1/4-20 x 1-3/4 in., T30 Torx Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 519849001

Control Panel Cover

$

$

Not available

17

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

18

Homelite 760504004

Switch

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 519863001

Outer Panel

$

$

Not available

20

Homelite 620599010

Wheel Axle

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 309322012

Muffler Assembly

$45.99

$

Usually ships in 3-7 days

0

22

Homelite 660479001

Screw (#9-18 x 15 mm)

$

$

Not available

23

Homelite 661505004

Bolt (M8 x 45 mm, Flange Hd.)

$1.49

$

In Stock, only 1 left!

0

24

Homelite 678815004

Axle Clip

$

$

Not available

25

Homelite 660901008

Screw (1/4-20 x 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 570355002

Rubber Foot

$

$

Not available

27

Homelite 661505003

Bolt (M8 x 50 mm)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 678189001

Lock Nut (M8)

$

$

Not available

29

Homelite 820270002

Capacitor

$27.99

$

Usually ships in 3-7 days

0

30

Homelite 290403013

Control Panel Assembly

$

$

Not available

31

Homelite 310711056

Fuel Tank Assembly [(Metal) Inc. Key No. 57]

$

$

Not available

32

Homelite 638497018

Intake Heat Shield

$

$

Not available

33

Homelite 660479002

Screw (#10-16 x 1 in.)

$

$

Not available

34

Homelite 290414003

White Assembly Wire (18 Ga)

$

$

Not available

35

Homelite 290513001

Brown Wire Assemly (18 Ga)

$

$

Not available

36

Homelite 290404001

Ground Assembly Wire

$

$

Not available

37

Homelite 678145002

Flange Nut (15/16-18)

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 638704001

Washer (5/16 in., Star)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 660972011

Bolt (M6 x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 290431002

Pigtail (Male Connector w/ Wire)

$

$

Not available

43

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

44

Homelite 570371005

Handle Grip

$

$

Not available

45

Homelite 518437003

Recoil Rope Guide

$

$

Not available

46

Homelite 310227017

Generator Head Assembly
(Superseded to 310227023)

$

$

Not available

47

Homelite 290425001

Battery Cable Assembly

$

$

Not available

48

Homelite 678390001

Hex Nut (M5)

$

$

Not available

49

Homelite 638589001

Capacitor Holder

$

$

Not available

50

Homelite 660976002

Bolt (M5 x 16 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 638497016

Heat Shield (Engine Air Inlet)

$

$

Not available

52

Homelite 638497015

Heat Shield (Separator)

$

$

Not available

53

Homelite 638497014

Heat Shield (Surround Muffler)

$

$

Not available

54

Homelite 638497013

Heat Shield (Under Fuel Tank)

$

$

Not available

55

Homelite 638623001

Washer

$

$

Not available

56

Homelite 678434001

Washer

$

$

Not available

57

Homelite 310720014

Fuel Tank Cap

$11.99

$

Usually ships in 3-7 days

0

58

Homelite 638708003

Canister Bracket

$

$

Not available

59

Homelite 310723002

Canister

$

$

Not available

60

Homelite 638702003

Bracket

$

$

Currently unavailable

61

Homelite 678408005

Fuel Line Clamp (3/8 in.)

$

$

Not available

62

Homelite 678409002

Fuel Line Clamp (5/16 in.)

$1.49

$

In Stock, Qty 5

0

63

Homelite 570358010

Fuel Line Hose (4 mm, 305 mm)

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 638711001

Bushing

$

$

Not available

65

Homelite 638710001

Fuel Check Valve

$27.99

$

Usually ships in 3-7 days

0

66

Homelite 570358009

Fuel Line Hose (5 mm, 432 mm)

$2.99

$

Usually ships in 3-7 days

0

67

Homelite 570358026

Fuel Hose (150 mm)

$

$

Not available

68

Homelite 308459002

Fuel Shut-off Valve

$19.99

$

Usually ships in 3-7 days

0

69

Homelite 570358025

Fuel Hose (100 mm)

$3.49

$

Usually ships in 3-7 days

0

70

Homelite 308733001

Fuel Line Filter
(Superseded to 308733008)

$8.49

$

In Stock, Qty 8

0

71

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$1.99

$

In Stock, only 4 left!

0

72

Homelite 638497017

Heat Shield

$

$

Not available

73

Homelite 940707032

Do Not Stand Label

$

$

Currently unavailable

74

Homelite 940842001

CPSC Label

$

$

Currently unavailable

75

Homelite 960735002

Engine Warning Hangtag

$

$

Not available

76

Homelite 940707029

Danger Label

$

$

Currently unavailable

77

Homelite 940974004

Fire Danger Label

$1.99

$

Usually ships in 3-7 days

0

78

Homelite 940513013

Ground Warning Label

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 940680036

Hot Surface Label

$

$

Not available

80

Homelite 940734063

Starting Instructions Label

$

$

Not available

81

Homelite 940678119

Data Plate

$

$

Not available

82

Homelite 940474001

Engine Switch Label

$

$

Not available

83

Homelite 940705076

Logo Label

$

$

Currently unavailable

84

Homelite 940654088

Combustion Label

$1.49

$

In Stock, only 3 left!

0

85

Homelite 941494004

Fuel Valve Label

$

$

Not available

86

Homelite 940708012

Engine Lubricant Label

$

$

Currently unavailable

87

Homelite 940498001

Hot Handle Warning Label

$

$

Not available

88

Homelite 900333012

Cable Tie (18.6 in.)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940654075

Cord Warning Label (DC)

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 987000612

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable
