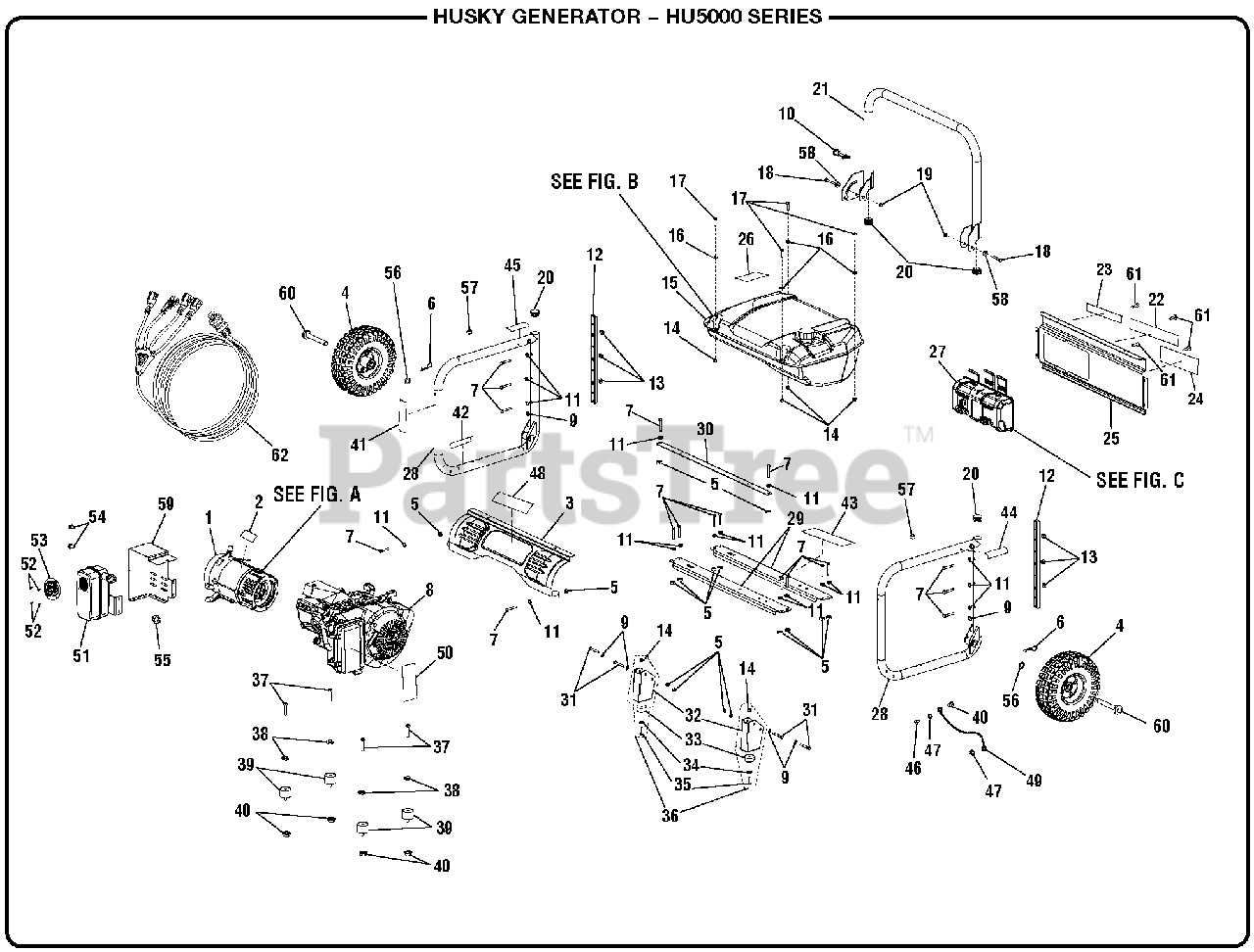

HU 5000 P - Husky 5,000 Watt Portable Generator General Assembly Parts Diagram

5,000 Watt Portable Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310227016

Generator Head w/AVR

$533.99

$

In Stock, only 1 left!

0

2

Homelite 940678102

Data Label

Note: (HU5000S)

$

$

Currently unavailable

Homelite 940678128

Data Label

Note: (HU5000P)

$

$

Currently unavailable

3

Homelite 308444002

Back Panel Assembly

$

$

Not available

4

Homelite 308451010

Wheels

$

$

Not available

5

Homelite 678074002

Lock Nut (1/4-20)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678238001

Hitch Pin

$1.49

$

In Stock, only 3 left!

0

7

Homelite 661400003

Bolt (1/4-20 x 42.5 mm, Torx)

$1.49

$

Usually ships in 3-7 days

0

8

Engine (EX30 Subaru)

$

$

Not available

9

Homelite 638387005

Washer (1/4)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 308449003

Handle Release Pin Assembly

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 678823001

Lock Washer (M6)

$

$

Not available

12

Homelite 519812004

Frame Slide Rails

$

$

Not available

13

Homelite 678016007

Hex Nut (1/4-20)

$

$

Not available

14

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

15

Homelite 310711049

Fuel Tank Assembly

$

$

Not available

16

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

17

Homelite 661503005

Bolt (1/4-20 x 1 in., Hex Hd.)

$1.49

$

In Stock, only 2 left!

0

18

Homelite 660591013

Bolt (5/16 x 18, Hex Hd.)

$

$

Currently unavailable

19

Homelite 678259003

Lock Nut (5/16 x 18)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 519712001

Tube Cap

$

$

Not available

21

Homelite 310224015

Handle Assembly

$

$

Not available

22

Homelite 940707023

Danger Label

$

$

Not available

23

Homelite 940513013

Ground Warning Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940705071

Logo Label

$

$

Not available

25

Homelite 638700015

Front Panel

$

$

Not available

26

Homelite 940515020

CPSC Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 290403012

Control Box (Front and Rear Assembly)

$

$

Not available

28

Homelite 308581012

Frame Tube Assembly

$

$

Not available

29

Homelite 638493007

Frame Cross Brace

$

$

Not available

30

Homelite 638236010

Back Frame Bracket

$

$

Not available

31

Homelite 661501008

Bolt (1/4-20 x 2 in., T30 Torx Hd.)
(Superseded to 661555002)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 638706006

Foot

$10.99

$

Usually ships in 3-7 days

0

33

Homelite 570554001

Wear Pad

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 638128004

Washer (1/4)

$1.49

$

In Stock, Qty 5

0

35

Homelite 661503001

Bolt (1/4-20 x 1 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 310739004

Foot Assembly

$

$

Not available

37

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$1.49

$

In Stock, only 3 left!

0

38

Homelite 638678002

Lock Washer (5/16)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 570356001

Isolator (Generator)

$

$

Not available

40

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 940680020

Hot Surface Label

$

$

Not available

42

Homelite 940654103

Combustion Label
(Superseded to 940947003)

$

$

Not available

43

Homelite 940708006

Engine Lubricant Label

$

$

Not available

44

Homelite 940974004

Fire Danger Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940514007

Pin Release Label

$

$

Not available

46

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 638704001

Star Washer (5/16 in.)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 940705073

Back Panel Logo Label

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 290404001

Ground Wire Assembly

$

$

Not available

50

Homelite 940617032

Starting Instruction Label

$

$

Not available

51

Homelite 309322010

Muffler

$

$

Not available

52

Homelite 661306001

Spark Arrestor Screw

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 638147003

Spark Arrestor

$

$

Not available

54

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 638499003

Muffler Gasket

$

$

Currently unavailable

56

Homelite 638581001

Washer (5/8 x 1 x 5/8 in.)

$1.49

$

In Stock, only 3 left!

0

57

Homelite 570371003

Rubber Handle Bumper

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 638128002

Washer (5/16)

$

$

Not available

59

Homelite 638539002

Back Muffler Cover

$

$

Not available

60

Homelite 620599011

Axle

$

$

Not available

61

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

62

Homelite 290426001

Extension Cord

Note: (HU5000S)

$97.99

$

Usually ships in 3-7 days

0

Homelite 987000723

Operator's Manual

$

$

Not available
