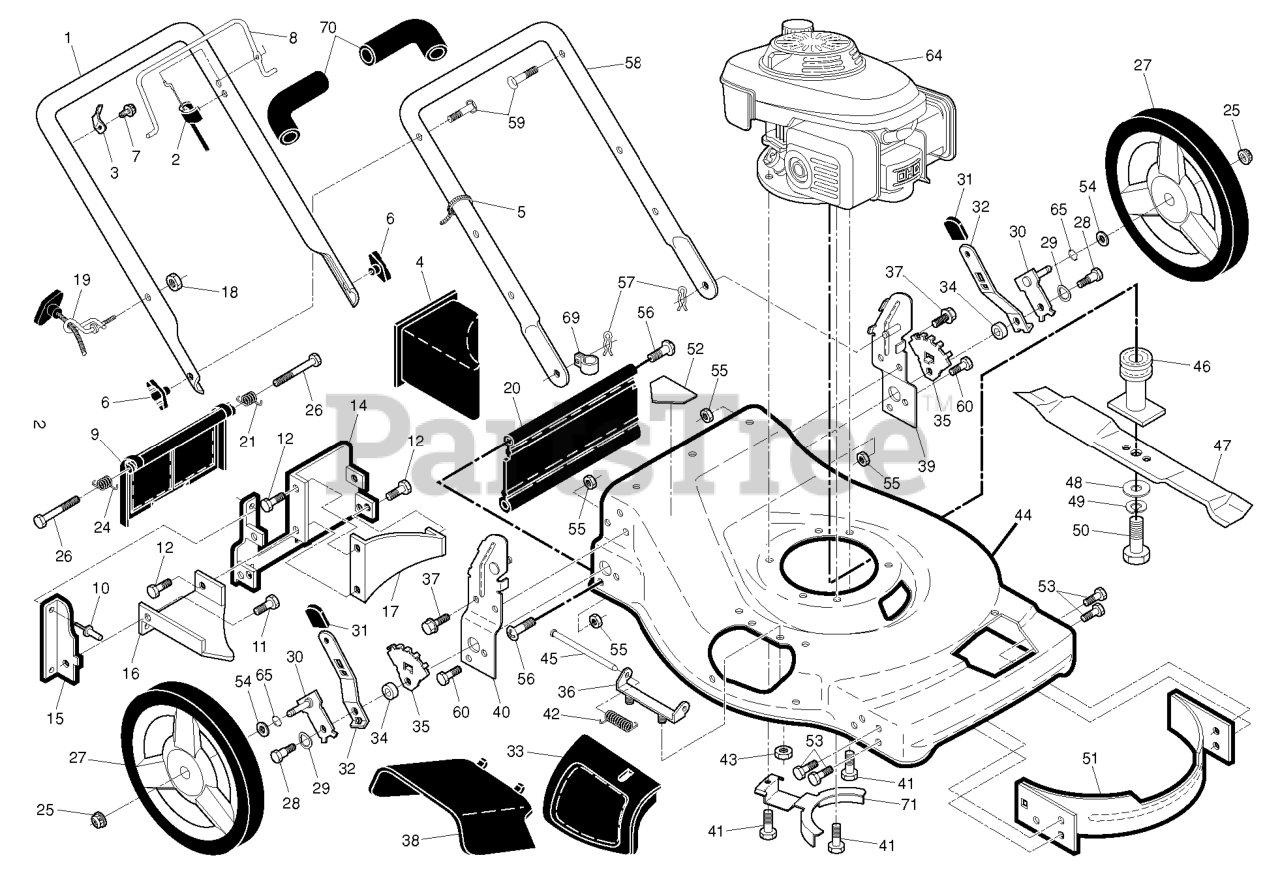

HU 700 F (961450006-00) - Husqvarna Walk-Behind Mower (2011-11) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532409889

SELECTOR SPRING
(Superseded to 532401626)

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532419251

BRACKET.ASM.HDL.LT.EZEM.22.ORG

Note: LH

$24.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 532445961

HOUSING.22.TOR.FWD.ORANGE.E/FR

$267.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532419248

BRACKET.ASM.HDL.RT.EZEM.22.ORG

Note: RH

$24.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532408492

REAR DOOR ASSY
(Superseded to 532401813)

$15.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532406713

BLADE.22.MULCH.STANDARD

$14.99

$

In Stock, Qty 20+

0

12

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 532447582

BAIL.MZR.EZ2.22 PLUS.ORANGE

$17.99

$

In Stock, only 3 left!

0

38

Husqvarna 532439430

DEFLECTOR.CLIPPING.22.FGD
(Superseded to 532403819)

$

$

Not available

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$25.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 532427658

HANDLE.ASM.GRY.W/GRIP

$60.99

$

In Stock, only 1 left!

0

6

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532166649

PLUG.MULCH.22RD

$

$

Not available

37

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

17

Husqvarna 532148941

REAR BAFFLE
(Superseded to 532140661)

$

$

Not available

71

Husqvarna 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532411334

SIDE BAFFLE
(Superseded to 532410545)

$7.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532413160

SKIRT.REAR.22RD/SD.FO/VE

$12.99

$

In Stock, Qty 8

0

29

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532197029

DOOR.MULCH.22.REAR.FWGD.GREY

$13.99

$

In Stock, only 2 left!

0

35

Husqvarna 532410626

WHEEL ADJ BRACKET
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 874760612

BOLT

$4.99

$

In Stock, Qty 17

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 532197076

PLATE.BACK
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532177133

DISCHARGE BAFFLE
(Superseded to 532176655)

$

$

Not available

30

Husqvarna 532406582

ARM.ASM.AXLE.5/9.POS.BZP

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532439719

HANDLE.LOWER.21.NB.GREY

$

$

Not available

21

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 1 left!

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532174719

BOLT SHOULDER 3/8 -16X1

$7.49

$

In Stock, only 4 left!

0

7

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

56

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 532170031

FRONT BAFFLE KIT

$

$

Not available

46

Husqvarna 532421248

RP ADAPTER.BLADE.25MM.21F
(Superseded to 532443950)

$54.99

$

In Stock, only 1 left!

0

70

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

26

Husqvarna 532184193

BOLT

$

$

Not available

53

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

64

000000000

Note: HONDA GCV160-LAOS3A FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

2

Husqvarna 532415350

CABLE.ASM.ZONE.CONTROL

$17.99

$

In Stock, Qty 20+

0

69

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0
