HU 700 L (961430069-01) - Husqvarna Walk-Behind Mower (2011-04) FRAME ENGINE Parts Diagram

Walk-Behind Mower

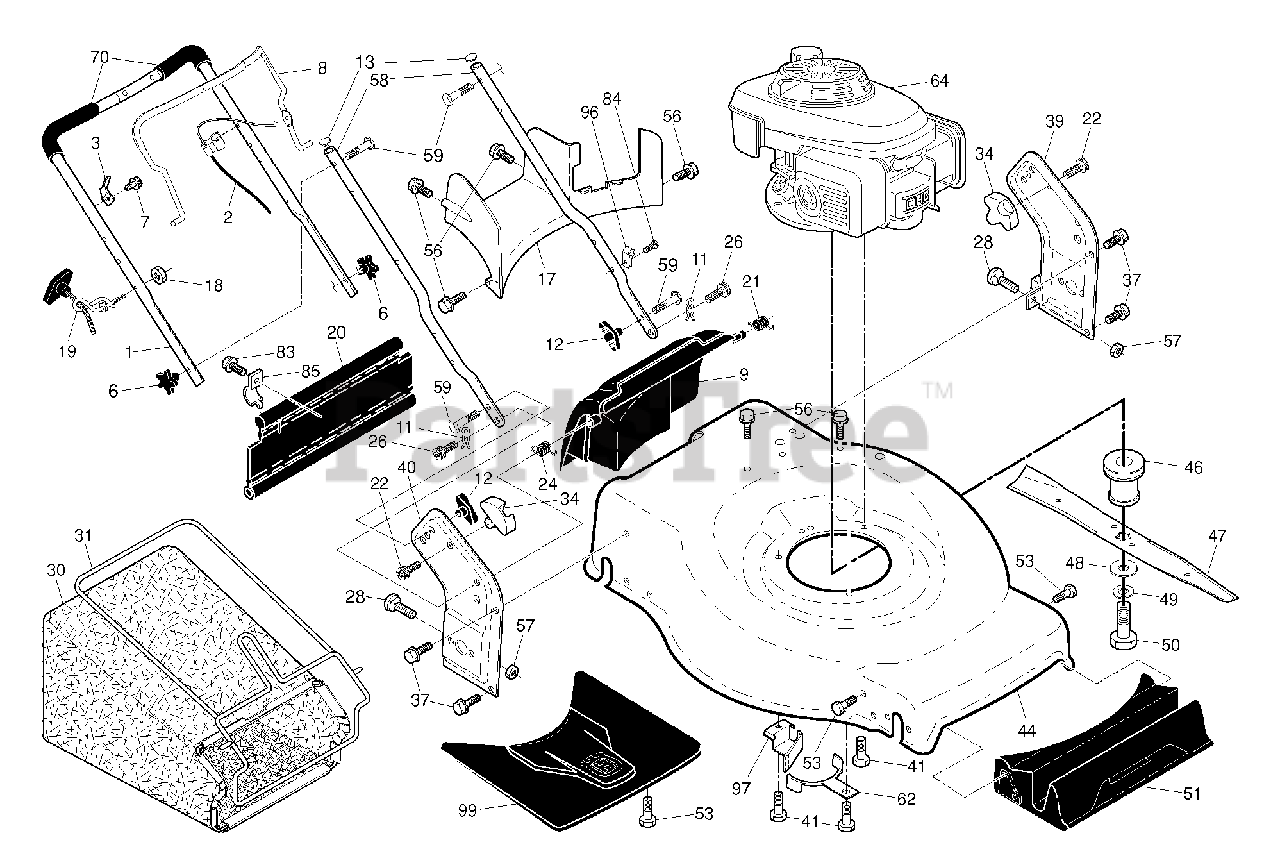

FRAME ENGINE Parts Diagram

  • Title

1

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: . 70

$

$

Not available

2

Husqvarna 532440386

CABLE.MZR.RGD.22.B&S/HON.ERGO

$22.99

$

In Stock, only 2 left!

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 4 left!

0

8

Husqvarna 532426812

BAIL.CONTROL.MZR.BS.ORANGE

$

$

Not available

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$56.99

$

In Stock, Qty 20+

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$3.49

$

In Stock, Qty 13

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$

$

Not available

17

Husqvarna 532431238

RP.BAFFLE.REAR.22+.RGD.PL
(Superseded to 581782101)

$37.99

$

In Stock, only 2 left!

0

18

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.49

$

In Stock, only 2 left!

0

20

Husqvarna 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$5.99

$

In Stock, Qty 20+

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$5.99

$

In Stock, Qty 9

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.99

$

In Stock, Qty 20+

0

28

Husqvarna 872250505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 532438584

GBAG.A3610247T.SILV.HUSWT.BLUE
(Superseded to 580947307)

$74.99

$

In Stock, Qty 7

0

31

Husqvarna 532419951

RB FRAME.GBAG.22PLUS
(Superseded to 585054702)

$34.99

$

In Stock, Qty 10

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$5.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

39

Husqvarna 532440525

BRACKET.ASM.HANDLE.LT
(Superseded to 581353702)

Note: LH

$

$

Not available

40

Husqvarna 532440526

RP.BRACKET.ASM.HANDLE.RT.22+.
(Superseded to 581353602)

Note: RH

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 2 left!

0

44

Husqvarna 532438484

HOUSING.22+.RWD.WO/PORT.ORANGE

$

$

Not available

46

Husqvarna 532421782

ADPTER.BLAD.25M.VS.22PLU.STAR
(Superseded to 581473301)

$17.99

$

In Stock, Qty 13

0

47

Husqvarna 532437601

BLADE.22+FUSION.PREM/PREC

$22.99

$

In Stock, Qty 5

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532437131

BAFFLE.FRONT.22PLUS.PLASTIC RP

$

$

Not available

53

Husqvarna 532437345

SCREW.HI-LO.5/16 X.75

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$5.99

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

62

Husqvarna 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

64

000000000

Note: HONDA GCV160-LAS3A FOR SERVICE PARTS 1-800-426-7701

$

$

Not available

70

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, only 4 left!

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$2.49

$

In Stock, only 2 left!

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$4.99

$

In Stock, Qty 5

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, only 4 left!

0

97

Husqvarna 532434893

BRACKE.BELT.GUIDE.22+
(Superseded to 580606902)

$

$

Not available

99

Husqvarna 532437389

COVER.ASM.FRONT.SHROUD.HUSQ.

$

$

Not available

-

Husqvarna 532441577

KIT.REAR.DELECTOR.22+

Note: AVAILABLE ACCESSORY NOT SHOWN

$26.99

$

Usually ships in 3-10 days

0
