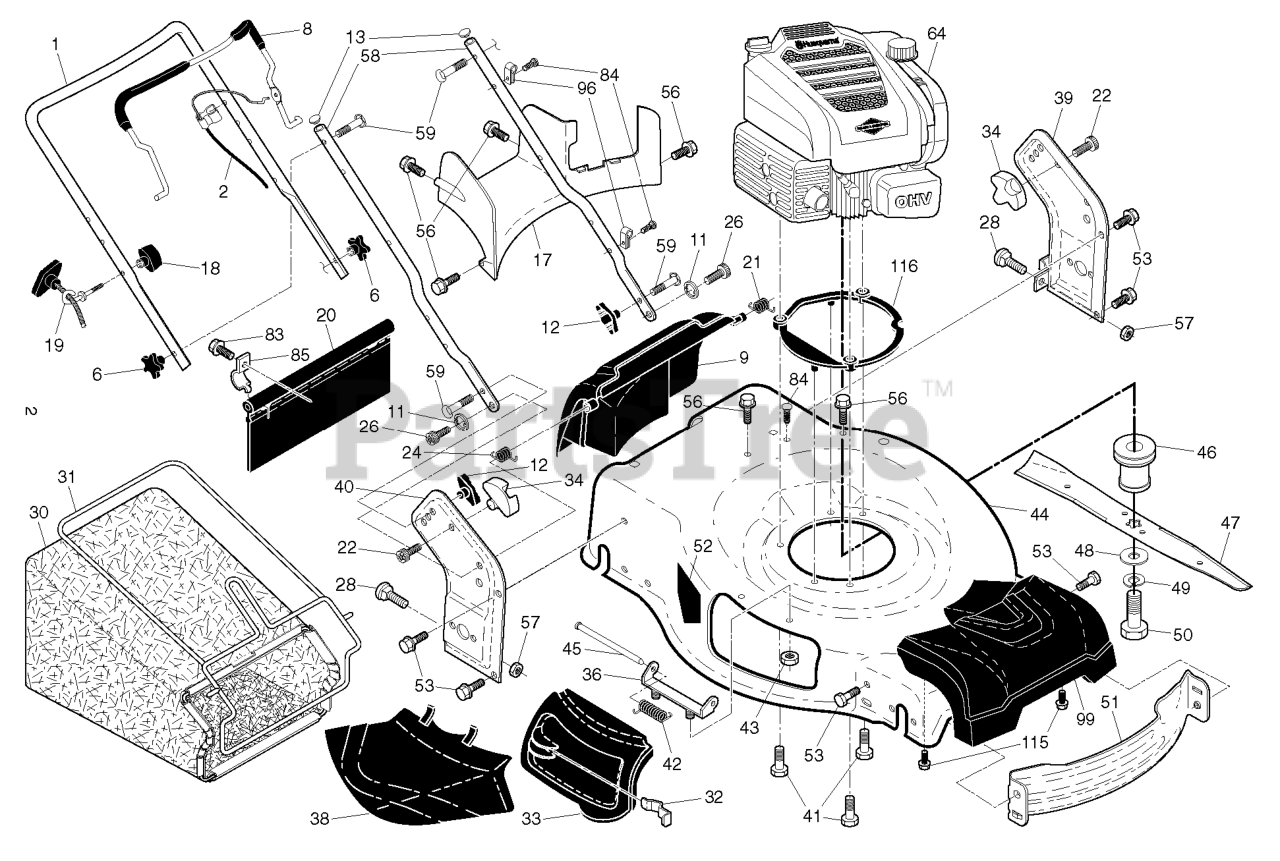

HU 725 AWD H (961430127-00) - Husqvarna Walk-Behind Mower (2017-02) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

46

Husqvarna 581650901

ADAPTER.BLADE.25M.B&S.AWD

$20.99

$

In Stock, Qty 9

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532444537

SKIRT.REAR.22+RGD.HIGH WHEEL

$13.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 580943408

GBAG.B561029EM.GRY/SILV
(Superseded to 580943401)

$56.99

$

In Stock, Qty 17

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$37.99

$

In Stock, only 2 left!

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, only 1 left!

0

50

Husqvarna 532179617

BOLT.BLADE

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$5.99

$

In Stock, Qty 5

0

57

Husqvarna 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 579482801

E-RING.12MM.SHAFT

$

$

Not available

41

Husqvarna 532850999

SCREW

$5.99

$

In Stock, only 2 left!

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 10

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$6.99

$

In Stock, Qty 20+

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: RH

$

$

Not available

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

Husqvarna 532423849

BAG OF HARDWARE.22+

Note: NOT SHOWN

$

$

Not available

47

Husqvarna 587199601

BLADE REAPER, 22 IN RUST
(Superseded to 587199603)

$20.99

$

In Stock, Qty 20+

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$

$

Not available

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$4.99

$

In Stock, Qty 5

0

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 20+

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, only 4 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532193000

SPRING.TORSION

$7.99

$

In Stock, Qty 20+

0

115

Husqvarna 581330001

SCREW.SHOULDER.5/16X1.375

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 587689302

BAIL.OM.ERGO.BENT.MZR.ORAN.668
(Superseded to 587689301)

$51.99

$

Usually ships in 3-10 days

0

64

000000000

Note: B&S 104M02-0002-F1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$2.49

$

In Stock, only 2 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

58

Husqvarna 585908203

HANDLE.LOWER.22+.BT.GRAY
(Superseded to 593270403)

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532424983

CABLE.MZR.ZONE.CONTROL

$20.99

$

In Stock, Qty 5

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$5.99

$

In Stock, Qty 9

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$56.99

$

In Stock, Qty 20+

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

In Stock, Qty 20+

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$5.99

$

In Stock, Qty 20+

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 585854806

HANDLE.UP.3POS.BS.AW2.GREY

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.49

$

In Stock, only 2 left!

0

45

Husqvarna 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 14

0

43

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR
(Superseded to 596041001)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: LH

$28.99

$

In Stock, only 4 left!

0

116

Husqvarna 581745601

SPACER.AWD.B&S

$

$

Not available

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

44

Husqvarna 581708354

KIT.HSG.22+AWD.MC.WO.668.TRI
(Superseded to 581708362)

$

$

Not available

99

Husqvarna 585668701

COVER.ASSEMBLY.FRONT.22+AWD

$37.99

$

Usually ships in 3-10 days

0
