HU 725 E (961430098-00) - Husqvarna Walk-Behind Mower (2013-02) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

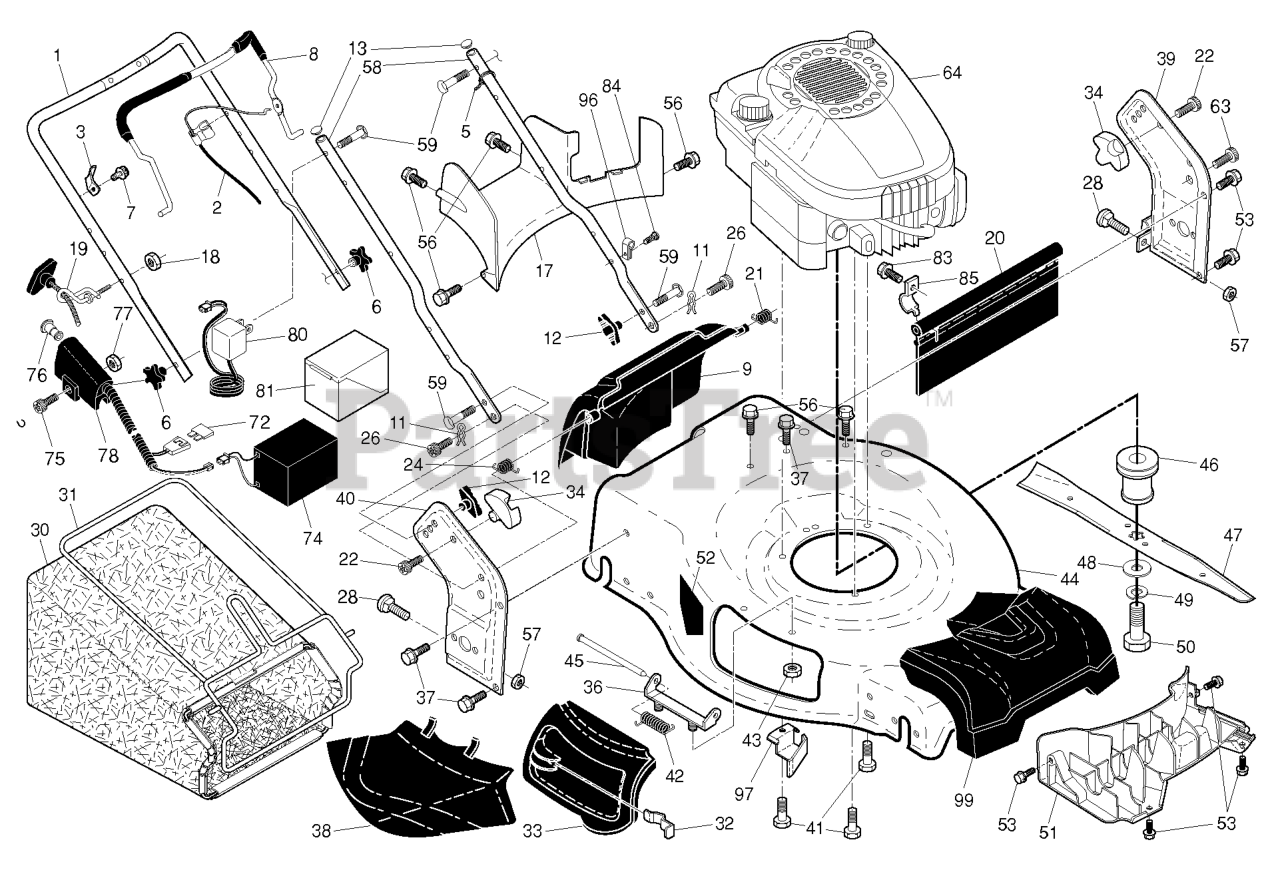

FRAME & ENGINE Parts Diagram

  • Title

78

Husqvarna 580915503

HARNESS.ASM.22+RGD.PB.
(Superseded to 579848002)

$62.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532446695

NUT.M6-1 NYLOC
(Superseded to 597434101)

$2.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$7.49

$

In Stock, Qty 20+

0

64

000000000

Note: BRIGGS & STRATTON 128MO5-0004-F1

$

$

Not available

80

Husqvarna 532428626

RP CHARGER.12V.0.1A
(Superseded to 587007101)

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 3 left!

0

2

Husqvarna 532427497

CABLE.MZR.50.SNAP-IN

$14.99

$

In Stock, Qty 20+

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

42

Husqvarna 532193000

SPRING.TORSION

$8.49

$

In Stock, Qty 13

0

39

Husqvarna 581353702

BRACKET.ASM.HNDL.LT.22+.GREY

Note: LH

$

$

Not available

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$5.99

$

In Stock, Qty 20+

0

40

Husqvarna 581353602

BRACKET.ASM.HNDL.RT.22+.GREY

Note: RH

$

$

Not available

57

Husqvarna 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

31

Husqvarna 532419951

RB FRAME.GBAG.22PLUS
(Superseded to 585054702)

$45.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

$9.99

$

In Stock, Qty 20+

0

44

Husqvarna 532446261

HOUSING.22+.RWD.HUSQ.ORANGE

$

$

Not available

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$9.99

$

In Stock, Qty 9

0

99

Husqvarna 532437389

COVER.ASM.FRONT.SHROUD.HUSQ.

$

$

Not available

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$59.99

$

In Stock, Qty 20+

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$

$

Not available

76

Husqvarna 580915202

BUTTON.KEY.CYLINDER.BLACK

$29.99

$

In Stock, only 3 left!

0

47

Husqvarna 580244001

BLADE.22+4N1.2PIN.5STAR.(P07)
(Superseded to 580244002)

$26.99

$

In Stock, Qty 20+

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 17

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$14.99

$

In Stock, Qty 20+

0

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$5.99

$

In Stock, Qty 18

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$4.99

$

In Stock, Qty 18

0

37

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 16

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

$

$

Not available

72

Husqvarna 532425937

FUSE, 40A

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$2.49

$

In Stock, only 2 left!

0

45

Husqvarna 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 5

0

30

Husqvarna 580943404

GBAG.B5610247T.SIL.HUSQ.BLUE
(Superseded to 580943401)

$56.99

$

In Stock, Qty 20+

0

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

$59.99

$

In Stock, only 2 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

51

Husqvarna 581238901

BAFFLE.FRONT.22+PLASTIC.(2 2)

$

$

Not available

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

46

Husqvarna 581851501

ADAPTER.BLADE.25MM.3MPH

$21.99

$

In Stock, Qty 20+

0

97

Husqvarna 581115302

BRACKET.BELT.GUIDE.22+.BZP

$

$

Not available

28

Husqvarna 872250505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 17

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$

$

Not available

7

Husqvarna 532178848

SCREW

$3.99

$

In Stock, Qty 14

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$3.99

$

In Stock, only 3 left!

0

53

Husqvarna 532437345

SCREW.HI-LO.5/16 X.75

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 532446694

BOLT.M6-1X40.T30

$7.99

$

In Stock, only 4 left!

0

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$5.99

$

In Stock, Qty 20+

0

81

Husqvarna 532446472

BOX.BATTERY.22+RGD.GREY
(Superseded to 585152402)

$

$

Not available

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$

$

Not available

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$37.99

$

In Stock, Qty 9

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$

$

Not available

74

Husqvarna 532431584

BATTERY.12V.22+RWGD
(Superseded to 584353901)

$

$

Not available
