HU 80522 - Husky Pressure Washer Pressure Washer Parts Diagram

Pressure Washer

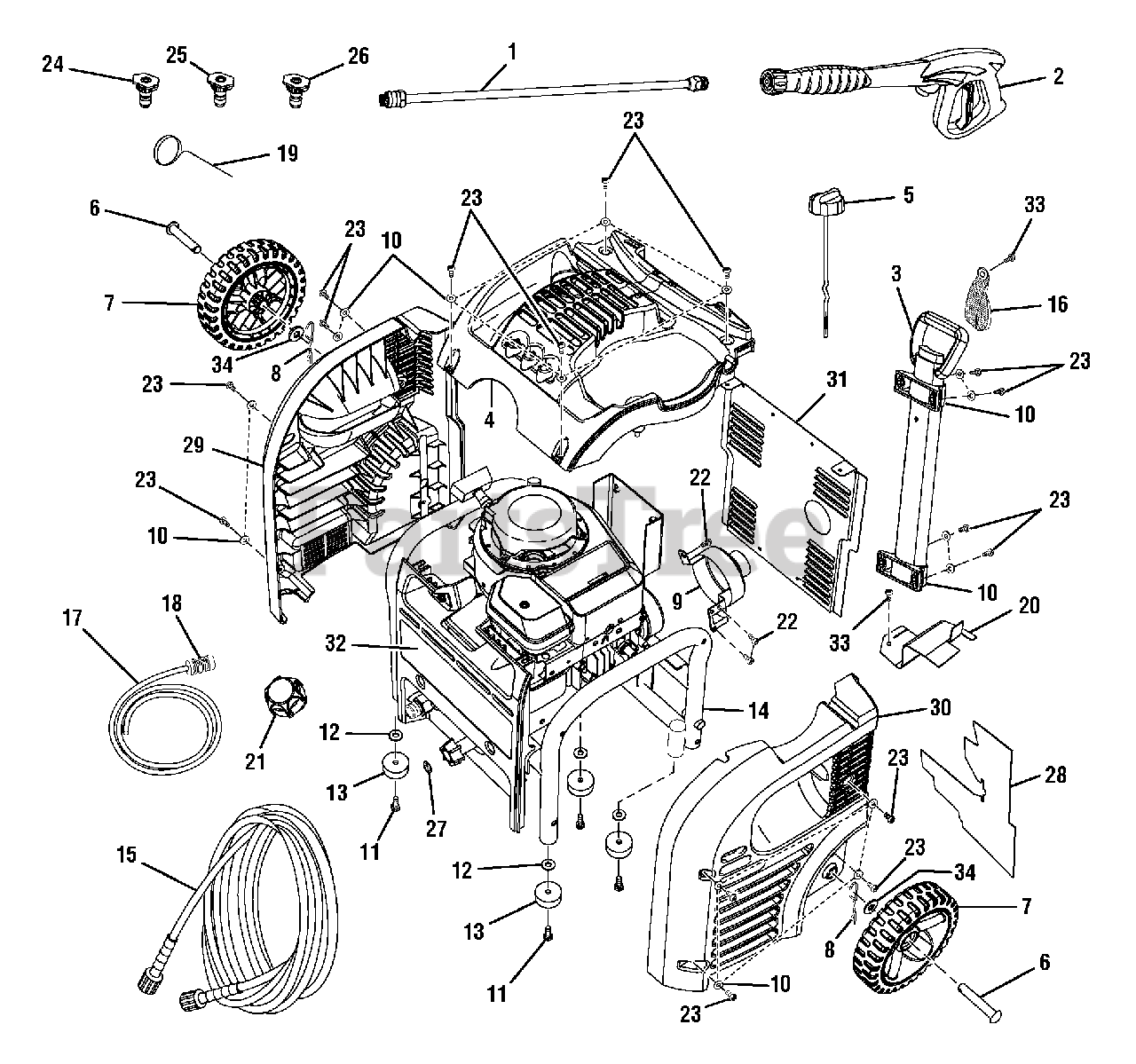

Pressure Washer Parts Diagram

  • Title

1

Homelite 308494001

Spray Wand Extension
(Superseded to 308494004)

$

$

Not available

2

Homelite 308413001

Spray Wand

$

$

Not available

3

Homelite 308587001

Handle Assembly

$40.99

$

Usually ships in 3-7 days

0

4

Homelite 518375001

Panel, Top
(Superseded to 308660001)

$

$

Not available

5

Homelite 308658001

Oil cap / Dipstick

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 620490001

Axle

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 308603001

Wheels

$

$

Not available

8

Homelite 678238001

Hitch Pin

$1.49

$

In Stock, only 3 left!

0

9

Homelite 308633001

Muffler Cover

$

$

Not available

10

Homelite 638330001

Lock Washer (1/4 in)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 660738001

Bolt (1/4-20 x 3/4 in Hex Hd)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638128003

Washer, 1/4 in

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 561454001

Rubber Foot

$1.49

$

In Stock, Qty 6

0

14

Homelite 308412003

Frame Assembly

$

$

Not available

15

Homelite 308414001

High Pressure Hose
(Superseded to 308835006)

$33.99

$

Usually ships in 3-7 days

0

16

Homelite 308652002

Hook and Loop Strap
(Superseded to 308652001)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 561399001

Injection Hose

$

$

Not available

18

Homelite 518391001

Injection Hose Filter

$1.49

$

In Stock, only 3 left!

0

19

Homelite 678148002

Nozzle Cleaning Tool

$

$

Not available

20

Homelite 308600001

Heat Isolator, upper

$

$

Not available

21

Homelite 308657001

Fuel Cap

$

$

Not available

22

Homelite 660991001

Screw (M5 x 8 mm)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 660946001

Screw (1/4-20 x 18 mm)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 678303001

Nozzle, 0° (Red)

$5.99

$

Usually ships in 3-7 days

0

25

Homelite 678304001

Nozzle, 25° (Green)

$4.99

$

Usually ships in 3-7 days

0

26

Homelite 678152001

Nozzle, Detergent (Black)
(Superseded to 308706006)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 308662001

Filter Screen

$

$

Not available

28

Homelite 901422001

Heat Isolator, lower

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 518373001

Panel, left side

$26.99

$

Usually ships in 3-7 days

0

30

Homelite 518374001

Panel, right side

$30.99

$

Usually ships in 3-7 days

0

31

Homelite 638327001

Panel, back

$

$

Not available

32

Homelite 518372001

Panel, front

$

$

Currently unavailable

33

Homelite 660733003

Screw (12-14)

$

$

Not available

34

Homelite 561494001

Rubber Washer

$

$

Not available

35

Homelite 660969001

Bolt (M8 x 50 mm Hex Hd)

Note: PURCHASE LOCALLY

$

$

Not available

36

Homelite 678189001

Nut (M8)

Note: PURCHASE LOCALLY

$

$

Not available

Homelite 308663001

O-Ring Kit

Note: (not shown)

$

$

Not available

Homelite 983000869

Operator's Manual

$

$

Not available
