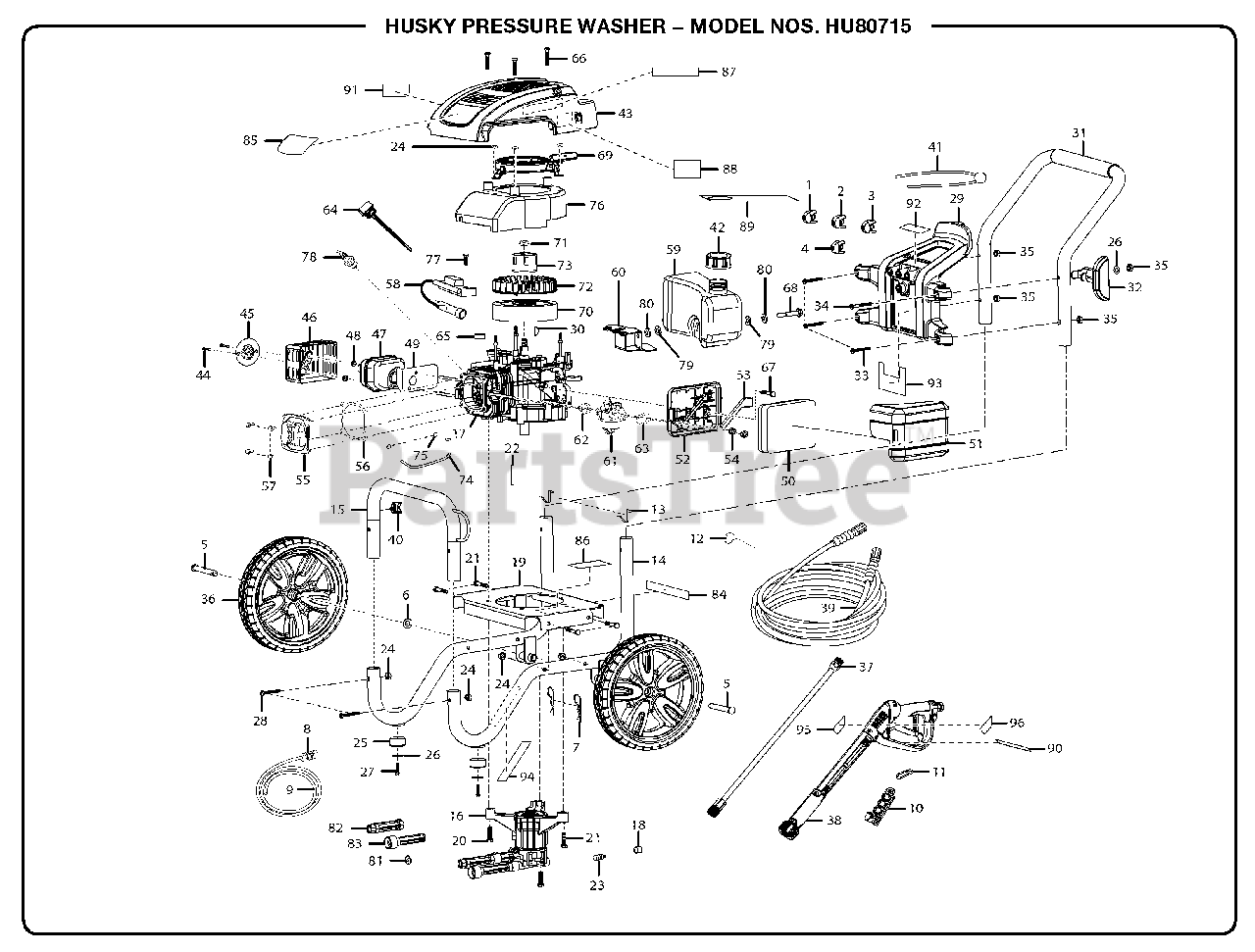

HU 80715 - Husky Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 308697005

0° Nozzle

$21.99

$

Usually ships in 3-7 days

0

2

Homelite 308698005

15° Nozzle
(Superseded to 120516002)

$

$

Not available

3

Homelite 308699005

25° Nozzle

$

$

Not available

4

Homelite 308706003

Detergent Nozzle

$

$

Not available

5

Homelite 620599001

Axle
(Superseded to 620599007)

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 638275002

Washer (1/2 in.)

Note: Purchase locally

$2.49

$

In Stock, Qty 5

0

7

Homelite 678238001

Hitch Pin

$2.49

$

In Stock, Qty 10

0

8

Homelite 518391001

Filter

$2.49

$

In Stock, only 1 left!

0

9

Homelite 561399003

Injection Hose

$3.49

$

In Stock, Qty 7

0

10

Homelite 570727001

Storage Holder

Note: (4 Nozzle)

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 638637001

Spring Clip

$

$

Not available

12

Homelite 678148002

Nozzle Cleaning Tool

$

$

Not available

13

Homelite 308421001

Lock Button w/Spring Clip
(Superseded to 308421004)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 308471006

Main Frame Assembly

Note: (Inc. Key Nos. 13 and 25-27)

$

$

Not available

15

Homelite 308659002

Front Frame

$

$

Not available

16

Homelite 308653003

Pump
(Superseded to 308653052)

Note: (Inc. Key Nos. 81-83)

$485.99

$

Usually ships in 3-7 days

0

17

Homelite 309591004

Engine (173cc)

$

$

Not available

18

Homelite 518470001

TRV Spout

$

$

Not available

19

Homelite 638662001

Engine Plate

$

$

Not available

20

Homelite 661505001

Bolt (M8 x 66 mm)

Note: Purchase locally

$

$

Not available

21

Homelite 661505003

Bolt (M8 x 50 mm)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 678041002

Output Shaft Key
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 678169002

Thermal Release Valve
(Superseded to 678169004)

$16.99

$

Usually ships in 3-7 days

0

24

Homelite 678774001

Lock Nut (M8)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 570554001

Wear Pad

$

$

Not available

26

Homelite 638128004

Washer (1/4 in.)

$2.49

$

In Stock, Qty 5

0

27

Homelite 661503001

Bolt (1/4-20 x 1 in., Hex Hd.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 661505004

Bolt (M8 x 45 mm)

Note: Purchase locally

$2.49

$

In Stock, Qty 5

0

29

Homelite 518790001

Hose and Nozzle Holder

$

$

Not available

30

Homelite 678709001

Flywheel Key

Note: (Woodruff Key)

$

$

Not available

31

Homelite 308638002

Handle Assembly

$

$

Not available

32

Homelite 518791001

Wand Holder

$

$

Not available

33

Homelite 661501001

Screw (1/4-20 x 1.85 in., Torx)

Note: Purchase locally

$

$

Not available

34

Homelite 661501002

Screw (1/4-20 x 2.27 in., Torx)
(Superseded to 660592006)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

Note: Purchase locally

$

$

Not available

36

Homelite 308451004

Wheel (12 in. x 2 in.)

$

$

Not available

37

Homelite 308494003

Spray Wand
(Superseded to 308494004)

$

$

Not available

38

Homelite 120950012

Trigger Handle Assembly
(Superseded to 308760028)

$

$

Not available

39

Homelite 308835001

High Pressure Hose
(Superseded to 308835066)

$

$

Not available

40

Homelite 518650001

Injection Hose Holder

$

$

Not available

41

Homelite 310664001

Bungee Cord and Bead Assembly

$4.49

$

In Stock, only 2 left!

0

42

Homelite 310685001

Fuel Cap

$

$

Not available

43

Homelite 310689001

Shroud Assembly w/Switch

$

$

Not available

44

Homelite 310688001

Screw (M6 x 12 mm)
(Superseded to 661518001)

$

$

Not available

45

Homelite 310687001

Spark Screen

$

$

Not available

46

Homelite 678627001

Muffler Cover

$

$

Not available

47

Homelite 309321001

Muffler

$202.99

$

Usually ships in 3-7 days

0

48

Homelite 678700001

Hex Nut (M6)

Note: Purchase locally

$

$

Not available

49

Homelite 638485001

Heat Shield

$

$

Not available

50

Homelite 310683001

Air Filter

$

$

Not available

51

Homelite 310684001

Air Filter Cover

$

$

Not available

52

Homelite 678701001

Air Filter Bracket

$

$

Not available

53

Homelite 518870001

Air Filter Cleaner Breather Cover

$

$

Not available

54

Homelite 678702001

Hex Nut (M6)

Note: Purchase locally

$

$

Not available

55

Homelite 678703001

Valve Cover

$

$

Not available

56

Homelite 638486001

Valve Cover Gasket

$10.99

$

Usually ships in 3-7 days

0

57

Homelite 661518001

Bolt (M6 x 12 mm)

Note: Purchase locally

$

$

Not available

58

Homelite 309263001

Ignition Module

$114.99

$

Usually ships in 3-7 days

0

59

Homelite 310588001

Fuel Tank Assembly

Note: (Inc. Key 42)

$

$

Not available

60

Homelite 678704001

Fuel Tank Bracket

$

$

Not available

61

Homelite 309367001

Carburetor

$

$

Not available

62

Homelite 901684001

Carburetor Gasket

$

$

Not available

63

Homelite 638487001

Air Cleaner Gasket

$

$

Not available

64

Homelite 310589001

Oil Dipstick

$

$

Not available

65

Homelite 678705001

Spacer Block

$

$

Not available

66

Homelite 660481002

Screw (M6 x 20 mm)

Note: Purchase locally

$

$

Not available

67

Homelite 661519001

Screw (M6 x 12 mm)
(Superseded to 661518001)

Note: Purchase locally

$

$

Not available

68

Homelite 661520001

Bolt

Note: (Fuel Tank Bracket) Purchase locally

$

$

Not available

69

Homelite 310682001

Recoil Starter Assembly

$

$

Not available

70

Homelite 309013001

Flywheel

$125.99

$

Usually ships in 3-7 days

0

71

Homelite 678707001

Flywheel Nut

$10.99

$

Usually ships in 3-7 days

0

72

Homelite 518871001

Fan

$

$

Not available

73

Homelite 310692001

Starter Pulley

$

$

Not available

74

Homelite 703460003

Fuel Line

$232.99

$

Usually ships in 3-7 days

0

75

Homelite 678408003

Fuel Line Clip

$3.99

$

Usually ships in 3-7 days

0

76

Homelite 310691001

Inner Blower Housing Assembly

$

$

Not available

77

Homelite 660481003

Screw (M6 x 25 mm)

Note: Purchase locally

$

$

Not available

78

Homelite A100662

Spark Plug

Note: (Champion 2415)

$

$

Not available

79

Homelite 670740001

Gasket

$

$

Not available

80

Homelite 678600003

Washer

Note: Purchase locally

$

$

Not available

81

Homelite 308662001

Filter Screen

$

$

Not available

82

Homelite 308861002

Inlet Tube

$

$

Not available

83

Homelite 308862002

Outlet Tube

$

$

Not available

84

Homelite 940678022

Data Label

$

$

Not available

85

Homelite 940719005

Engine Shroud Label

$1.49

$

Usually ships in 3-7 days

0

86

Homelite 940654048

Warning Label

$

$

Not available

87

Homelite 940617017

Engine Quick Start Label

$

$

Not available

88

Homelite 940698002

Choke Label

$

$

Not available

89

Homelite 940971010

Engine Oil Fill

Note: (Hang Tag)

$

$

Not available

90

Homelite 940786001

Wand Label

Note: (Max Rating)

$

$

Not available

91

Homelite 940778002

Hot Muffler Label

$

$

Not available

92

Homelite 940378007

Nozzle Label

$

$

Not available

93

Homelite 940779006

Performance Label

$

$

Not available

94

Homelite 940617016

Pump Quick Start Label

$

$

Not available

95

Homelite 940654052

Trigger Handle Warning Label

$2.49

$

Usually ships in 3-7 days

0

96

Homelite 940726008

Trigger Handle Logo Label

$1.49

$

Usually ships in 3-7 days

0

97

Lubricant

Note: (SAE 10W30) Purchase locally Not Shown

$

$

Not available

Homelite 987000271

Operator's Manual

Note: (960718009) Not Shown

$

$

Currently unavailable

Homelite 987000272

Replacement Parts List

Note: (961032045) Not Shown

$

$

Currently unavailable
