HUCA 80215 - Husky Pressure Washer Figure C Parts Diagram

Pressure Washer

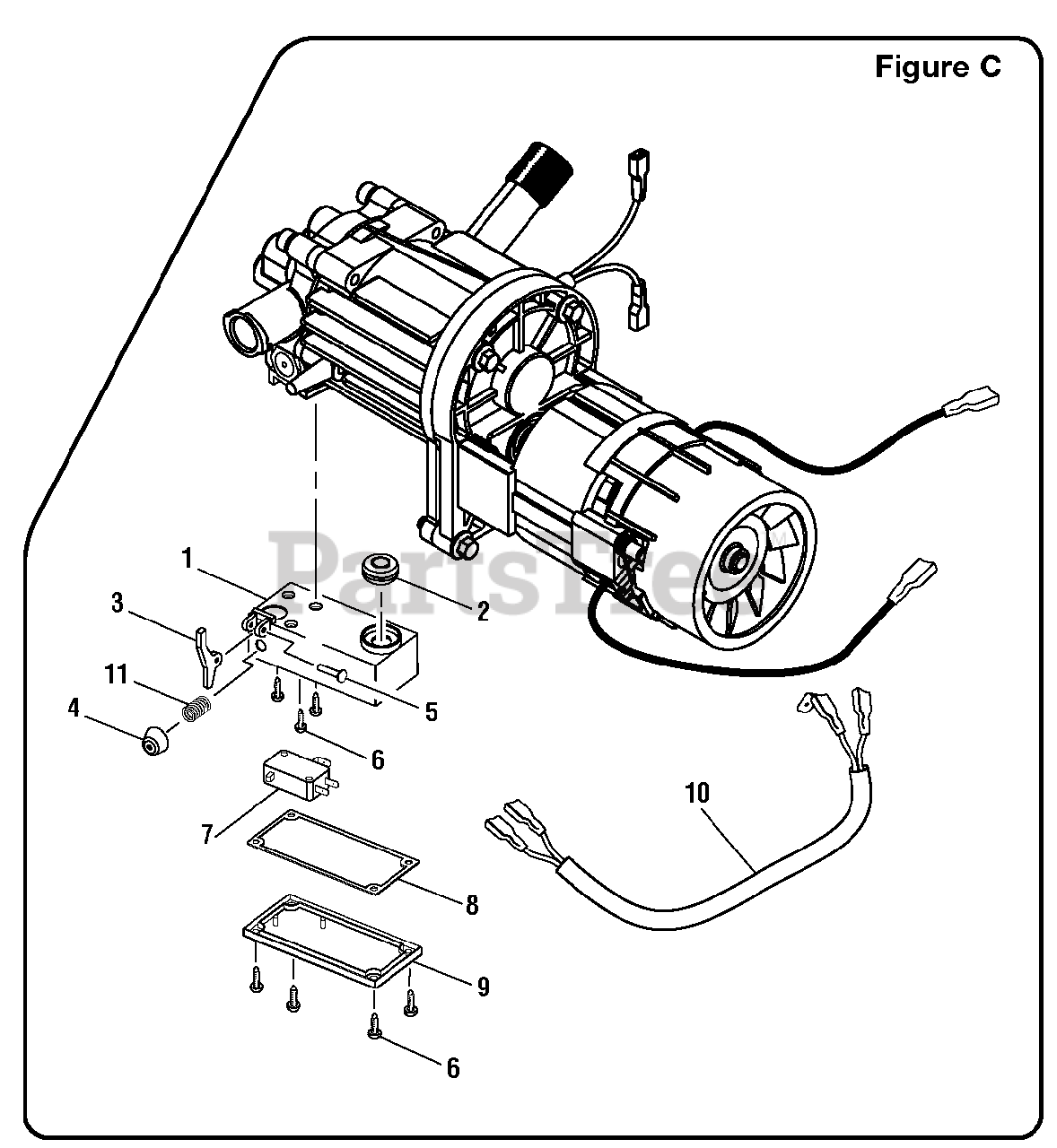

Figure C Parts Diagram

  • Title

1

Homelite 34110302G

Switch Box

$

$

Not available

2

Homelite 34220302G

Grommet

$

$

Not available

3

Homelite 33303302G

Stop Switch Lever

$

$

Not available

4

Homelite 34219302G

Switch Box Seal

$

$

Not available

5

Homelite 33204302G

Stop Switch Lever Pin

$

$

Not available

6

Homelite 32202301G

Screw (2.9 x 10 mm)

$

$

Not available

7

Homelite 36301301G

Stop Switch

$

$

Not available

8

Homelite 34221302G

Switch Box Gasket

$

$

Not available

9

Homelite 34111302G

Switch Box Cover

$

$

Not available

10

Homelite 36401302G

Stop Switch Wiring Harness Assembly

$

$

Not available

11

Homelite 33912301G

Compression Spring

$

$

Not available
