HUV 4210 E - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Electrical Components, Front Body Parts Diagram

4x2 Utility Vehicle, Electric

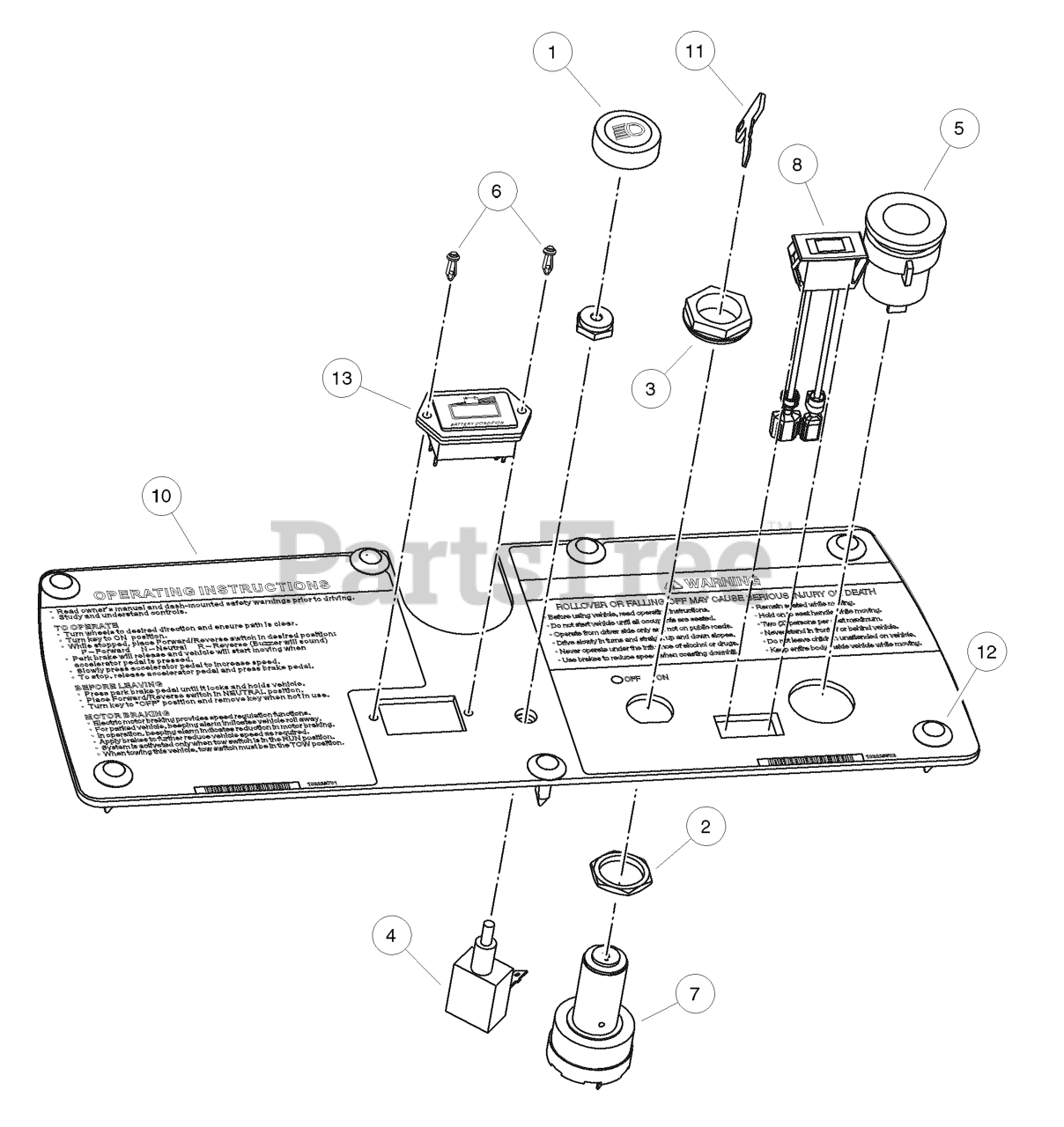

Electrical Components, Front Body Parts Diagram

  • Title

1

Husqvarna 603000191

LIGHT SWITCH KNOB

$

$

Not available

2

Husqvarna 603003672

NUT, KEYSWITCH

$

$

Not available

3

Husqvarna 603000761

NUT, KEYSWITCH

$

$

Not available

4

Husqvarna 603000762

SWITCH, LIGHT

$

$

Not available

5

Husqvarna 603000801

ACCESSORY RECEPTACLE

$

$

Not available

6

Rivet, Micro Tuflok

$

$

Not available

7

Husqvarna 603003760

KEY SWITCH ELECT PREC

$

$

Not available

8

Husqvarna 603003761

BATTERY LIGHT PREC

$

$

Not available

9

Husqvarna 603003031

PANEL, INSTRUMENT, E

$

$

Not available

10

Husqvarna 603003032

PANEL, INSTRMT, E W/12

Note: (With 12-Volt Accessory Outlet Cutout) *

$

$

Not available

11

Husqvarna 603003033

KEY SET, OEM

$

$

Not available

12

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

13

Husqvarna 603004381

INDICATOR, BATT CHRG, 48V

$

$

Not available
