HUV 4210 E - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) CONTROLLER Parts Diagram

4x2 Utility Vehicle, Electric

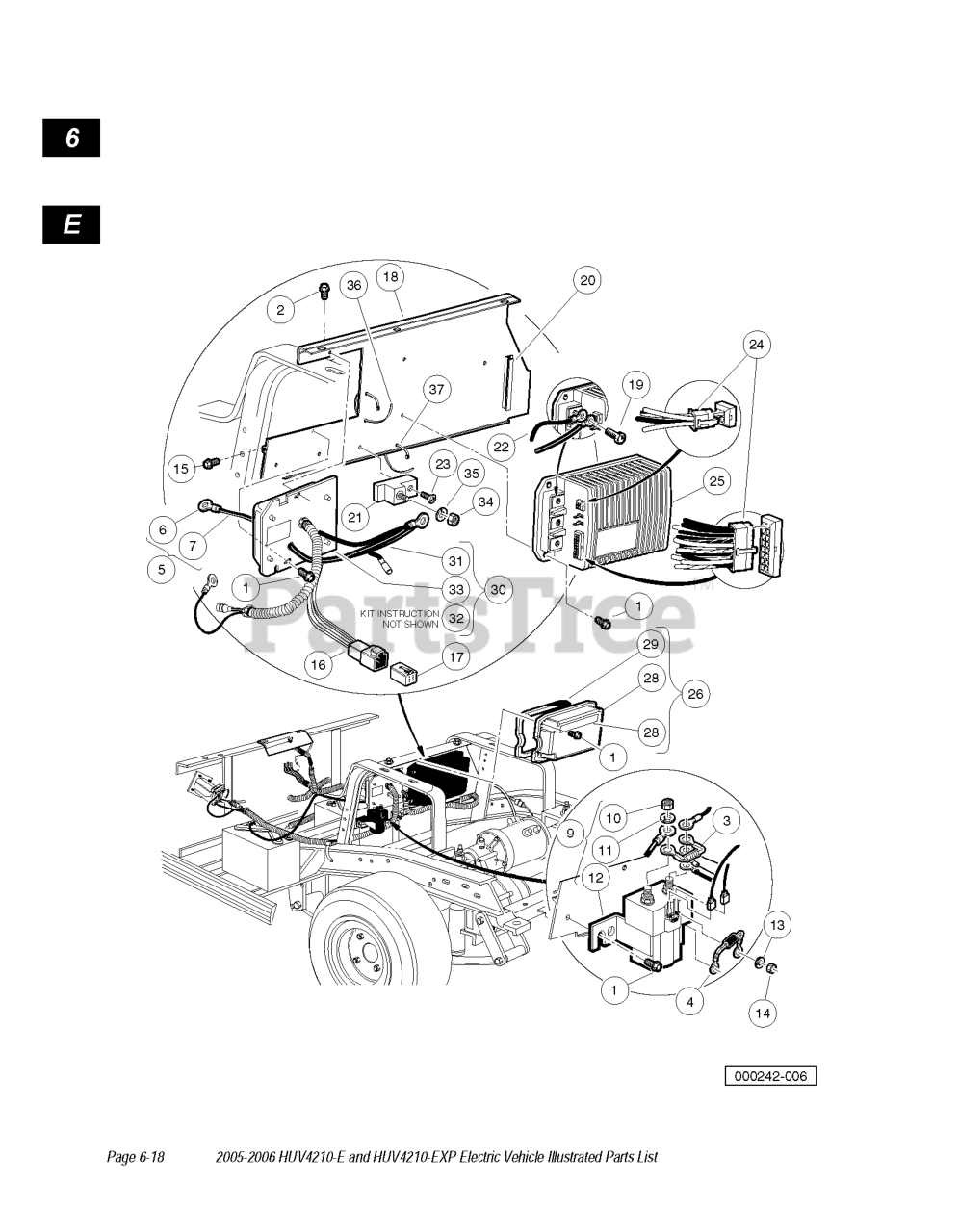

CONTROLLER Parts Diagram

  • Title

1

Husqvarna 603000134

SCREW HX TYP TT

$

$

Not available

29

Husqvarna 603004383

GASKET - CONTROLLER COVER

$

$

Not available

27

Husqvarna 531307120

DECAL, COMPONENT COVER

$

$

Not available

19

Husqvarna 603003735

BOLT IQ CONTROLLER TERMINAL

$

$

Not available

15

Husqvarna 603003221

SCREW, 5/16-18 X 1.25 THRD FRM

$

$

Not available

24

Husqvarna 603003743

KIT CONNECTOR IQ CONTROLLER

$

$

Not available

37

Husqvarna 603002963

TIE WRAP, 8" NYLON

$

$

Not available

3

Husqvarna 603003653

RESISTOR ASSEMBLY

$

$

Not available

36

Husqvarna 603000093

TIE WRAP , 11" NYLON

$

$

Not available

22

Husqvarna 603003741

WIRE ASSY #10 BLACK

$

$

Not available

23

Husqvarna 603003742

SCREW 10-24X.75 PHIL THD-F

$

$

Not available

21

Husqvarna 603003740

TERMINAL BLOCK

$

$

Not available

28

Husqvarna 603004382

COVER - CONTROLLER, DEEP

$

$

Not available

34

Husqvarna 603000066

NUT, 5/16-18 HEX

$

$

Not available

32

Husqvarna 603004385

Instr Obc Ds Pre 01-28-2007

$

$

Currently unavailable

10

Husqvarna 603000142

NUT, M8-1.25 HEX

$

$

Not available

18

Husqvarna 531307158

PLATE, COMPONENT COMMON

$

$

Not available

17

Husqvarna 603003712

KIT 6-PIN PLUG AND WEDGE LOCK

$

$

Not available

11

Husqvarna 603000184

LOCKWASH

$

$

Not available

4

Husqvarna 603000238

ASM, DIODE

$

$

Not available

9

Husqvarna 603003692

SOLENOID, 48V W/ CONTACT STUD

$

$

Not available

2

Husqvarna 603000220

SCREW

$

$

Not available

30

Husqvarna 603004386

KIT OBC

$

$

Not available

26

Husqvarna 603004406

COVER ASM - CONTROLLER

$

$

Not available

16

Husqvarna 603003711

KIT 6-PINRECEPT AND WEDGE LOCK

$

$

Not available

35

Husqvarna 603000072

LOCKWASHER, 5/16 SPLIT

$

$

Not available

8

Husqvarna 603002963

TIE WRAP, 8" NYLON

$

$

Not available

5

Husqvarna 603003665

GROUND WIRE KIT 48V

$

$

Not available

31

Husqvarna 603004384

Asm Wire #10blk Ground

$

$

Currently unavailable

25

Husqvarna 531307366

ONTROLLER, 48V IQ GOLF

$

$

Not available
