HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Battery Charger Receptacle Parts Diagram

4x2 Utility Vehicle, Electric

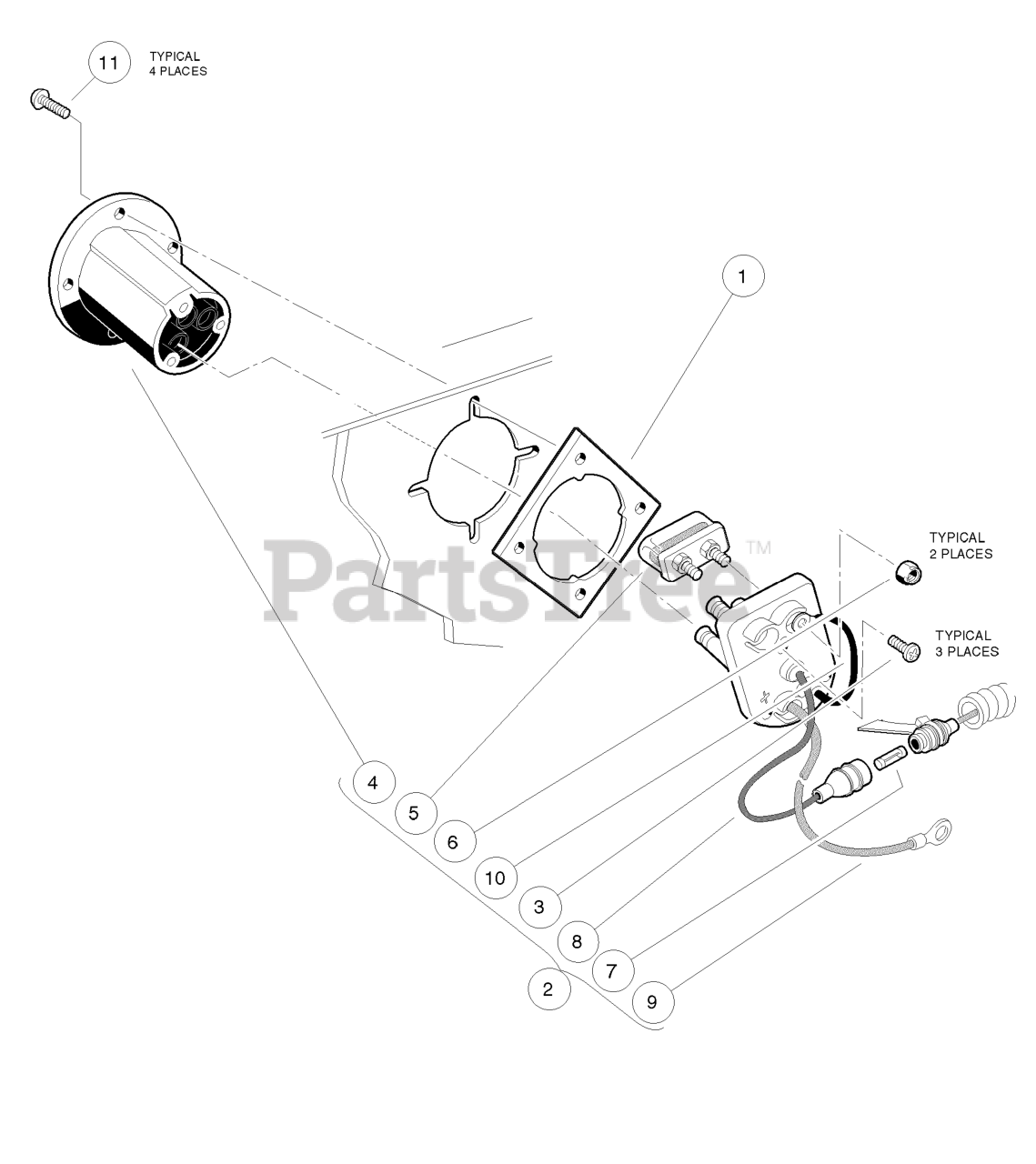

Battery Charger Receptacle Parts Diagram

  • Title

1

Husqvarna 603003660

PLATE RECEPTACLE BLACK

$

$

Not available

2

Husqvarna 603003661

FUSE & RECEPTACLE ASSEMBLY

Note: (includes items 3 through 10)

$

$

Not available

3

Husqvarna 603003655

SCREW #8X5/8 PHIL PAN HD AB

$

$

Not available

4

Husqvarna 603003658

RECEPTACLE FOR MOLDED PLUG

$

$

Not available

5

Husqvarna 603003659

FUSE ASSEMBLY

Note: (includes item 6)

$

$

Not available

6

Husqvarna 603000171

LOCKNUT

$

$

Not available

7

Husqvarna 603003675

3/8 AMP FUSE

$

$

Not available

8

Wire Assembly, Sense Lead, Gray

$

$

Not available

9

Wire Assembly, #10 Red

$

$

Not available

10

Wire Assembly, #10 Black

$

$

Not available

11

Husqvarna 603000506

SCREW, #7-19 X .625 PHL PN TAP

$

$

Not available
