HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Bed Hinge Parts Diagram

4x2 Utility Vehicle, Electric

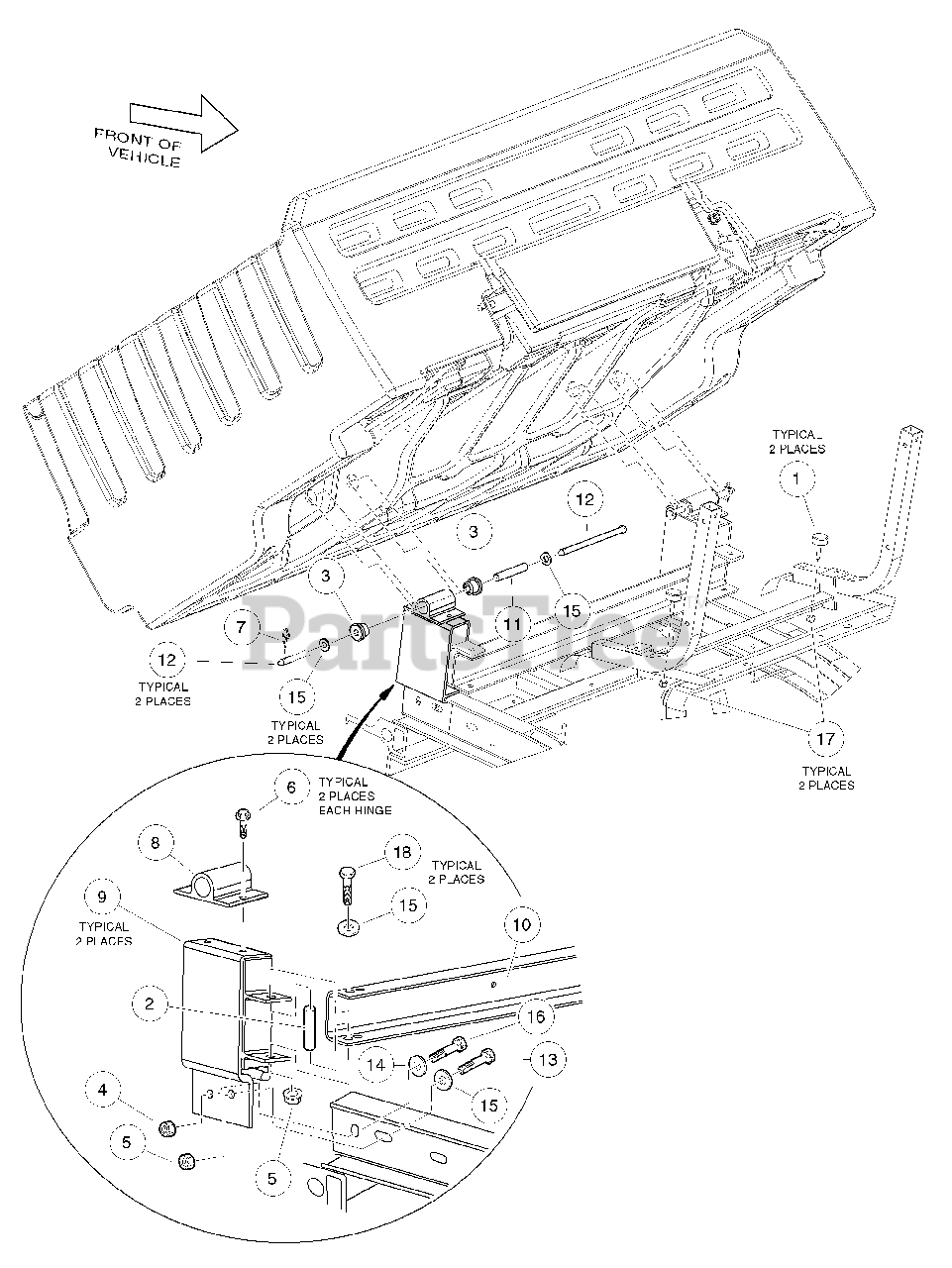

Bed Hinge Parts Diagram

  • Title

1

Husqvarna 603000113

Bumper, Rubber

$

$

Not available

2

Husqvarna 603000136

Bushing, Steel

$

$

Not available

3

Husqvarna 603000263

Bushing, Urethane

$

$

Not available

4

Husqvarna 603000521

Locknut, 1/4-20 Hex Whiz

$

$

Not available

5

Husqvarna 603000780

Locknut, 3/8-16 Flanged Dimple

$

$

Not available

6

Husqvarna 603000869

Screw, M8X1.25X30, Hex

$

$

Not available

7

Husqvarna 603003253

Rue Ring - 1/2

$

$

Not available

8

Husqvarna 603003281

Hinge, Roto Bed

$

$

Not available

9

Husqvarna 603003287

Support, Hinge

$

$

Not available

10

Husqvarna 603002321

Stiffener, Bed Support

$

$

Not available

11

Husqvarna 603003288

Bushing, Steel

$

$

Not available

12

Husqvarna 603003292

Pin, Clevis, 3/8

$

$

Not available

13

Husqvarna 603000053

Screw, 3/8-16 X 1.00 Hex-Head Cap

$

$

Not available

14

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

15

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

16

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

17

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

18

Husqvarna 603000096

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Not available
