HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Forward/Reverse Switch, Tow/Run Switch Parts Diagram

4x2 Utility Vehicle, Electric

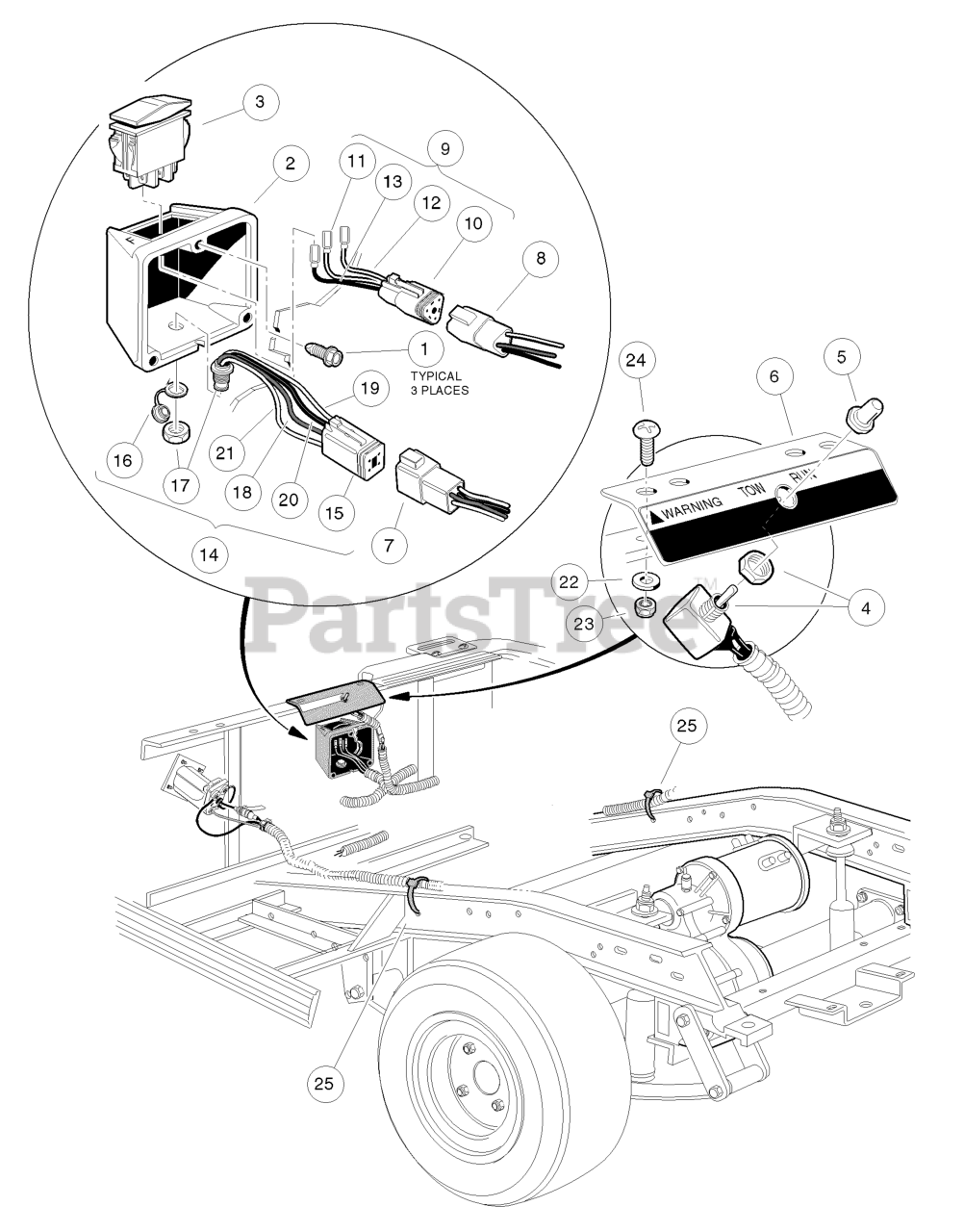

Forward/Reverse Switch, Tow/Run Switch Parts Diagram

  • Title

1

Husqvarna 603000134

SCREW HX TYP TT

$

$

Not available

2

Husqvarna 603003673

CASE, F&R SWITCH, IQ SYSTEM

$

$

Not available

3

Husqvarna 603003674

SWITCH ROCKER - SINGLE POLE

$

$

Not available

4

Husqvarna 603003690

SWITCH ASSY, TOW

$

$

Not available

5

Husqvarna 603003691

BOOT, SWITCH

$

$

Not available

6

Husqvarna 603003701

BRACKET, TOW SWITCH MOUNTING

$

$

Not available

7

Husqvarna 603003709

KIT, 4-PIN RECEPT & WEDGE LOCK

$

$

Not available

8

Husqvarna 603003716

KIT 3PIN RECEPT AND WEDGE LOCK

$

$

Not available

9

Husqvarna 603003744

WIRE ASM F&R SWITCH

Note: (includes items 10 through 13)

$

$

Not available

10

Husqvarna 603003697

KIT, 3 PIN PLUG & WEDGE LOCK

$

$

Not available

11

Wire Assembly, #18 Blue

$

$

Not available

12

Wire Assembly, #18 Orange

$

$

Not available

13

Wire Assembly, #18 Brown

$

$

Not available

14

Husqvarna 603003745

WIRE ASM IQDM PORT

Note: (includes items 15 through 21)

$

$

Not available

15

Husqvarna 603003710

KIT 4-PIN PLUG AND WEDGE LOCK

$

$

Not available

16

Husqvarna 603003733

Dust Cap

$

$

Not available

17

Connector Mount, Four-Pin

$

$

Not available

18

Wire Assembly, #18 Red/Yellow

$

$

Not available

19

Wire Assembly, #18 Black/Yellow

$

$

Not available

20

Wire Assembly, #18 Blue/Yellow

$

$

Not available

21

Wire Assembly, #18 Green/Yellow

$

$

Not available

22

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

23

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

24

Husqvarna 603000090

SCREW 1/4-20 X .75

$

$

Not available

25

Husqvarna 603002963

TIE WRAP, 8" NYLON

$

$

Not available
