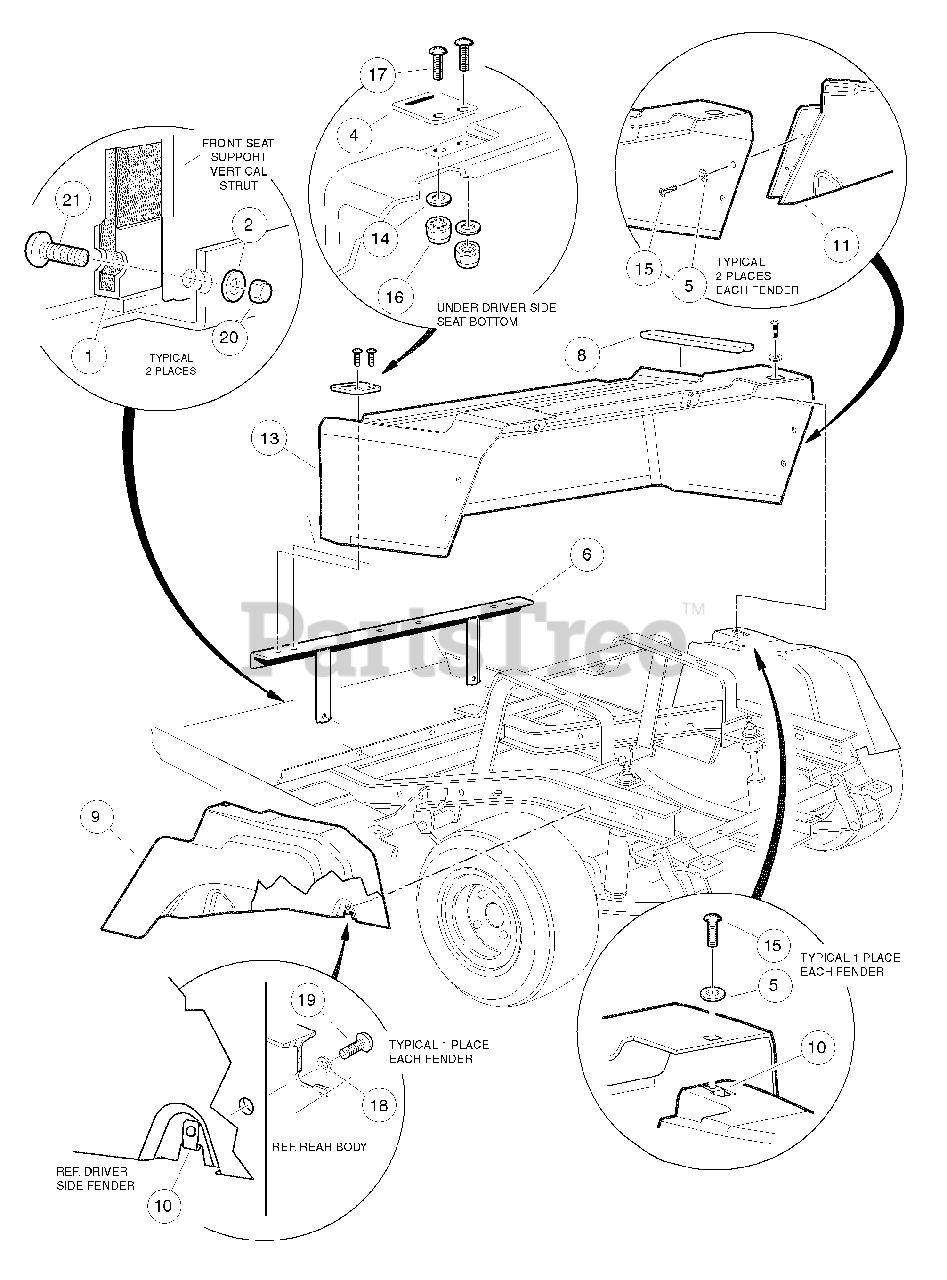

HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Rear Body and Fender Parts Diagram

4x2 Utility Vehicle, Electric

Rear Body and Fender Parts Diagram

  • Title

1

Husqvarna 603003629

Body Kick Plate

$

$

Not available

2

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

3

Body Asm, Electric, Orange

Note: (includes items 4 through 17)

$

$

Not available

4

Husqvarna 603000139

Body, Hinge Plate

$

$

Not available

5

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

6

Husqvarna 603003156

Body Support Front

$

$

Not available

7

Husqvarna 603003195

Cable Retainer

Note: Item 7 is not required for electric vehicles and is not illustrated.

$

$

Not available

8

Husqvarna 603003252

Wear Pad

$

$

Not available

9

Husqvarna 603003275

Fender, Driver Side

Note: (includes item 10)

$

$

Not available

10

Husqvarna 603003154

U-N ut, 1 /4-20 .

$

$

Not available

11

Husqvarna 603002292

Fender, Passenger Side

Note: (includes item 12)

$

$

Not available

12

Husqvarna 603003154

U-N ut, 1 /4-20

$

$

Not available

13

Husqvarna 603002949

Body, Rear, Electric, Orange

$

$

Not available

14

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

15

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

16

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

17

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available

18

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

19

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

20

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

21

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available
