HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Seat Back Parts Diagram

4x2 Utility Vehicle, Electric

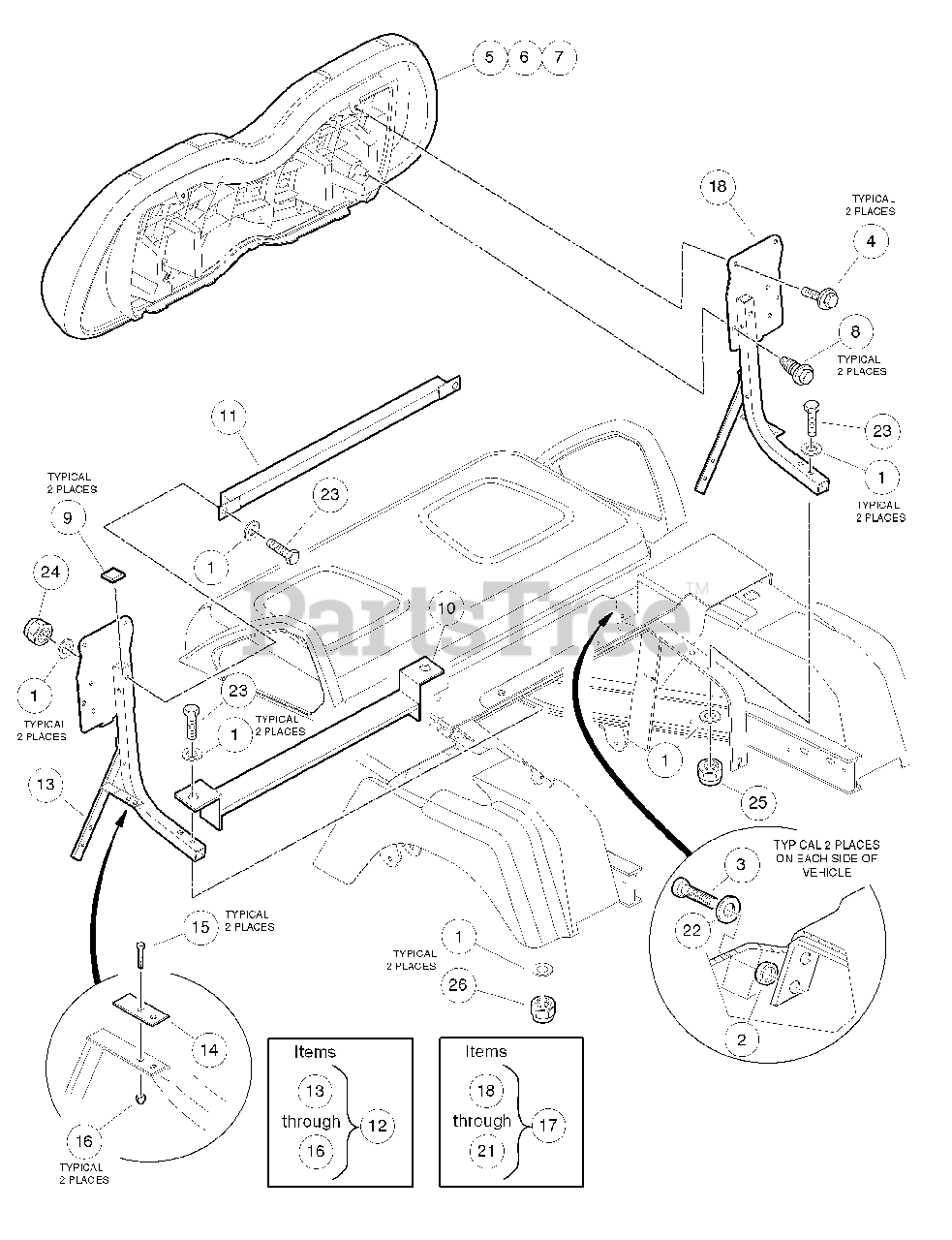

Seat Back Parts Diagram

  • Title

1

Husqvarna 603003048

Washer, 1/4 Flat

$

$

Not available

2

Husqvarna 603000434

Body Spacer

$

$

Not available

3

Husqvarna 603003221

Screw, 5/16-18 X 1.25 Thrd Frm

$

$

Not available

4

Husqvarna 603003254

Screw - M6 X 1.0 X 30 Sems

$

$

Not available

5

Husqvarna 603004373

Service Backrest Asm, Beige

$

$

Currently unavailable

6

Husqvarna 603004374

Service Backrest Asm, White

$

$

Currently unavailable

7

Husqvarna 603003266

Service Backrest Asm, Gray

$

$

Not available

8

Husqvarna 603003268

Screw, M6 Hex

$

$

Not available

9

Husqvarna 603003269

Plug, Square - 25.4 mm

$

$

Not available

10

Husqvarna 603002302

Weldment, Bed Support

$

$

Not available

11

Husqvarna 603002316

Seat Support, Cross Brace

$

$

Not available

12

Husqvarna 603002304

Seat Support W/striker, Drv

Note: (includes items 13 through 16)

$

$

Not available

13

Seat Support, Driver-Side

$

$

Not available

14

Husqvarna 603002366

Striker Plate

$

$

Not available

15

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

16

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

17

Husqvarna 603002305

Support, Seat, Right

Note: (passenger) (includes items 18 through 21)

$

$

Not available

18

Seat Support, Passenger-Side

$

$

Not available

19

Husqvarna 603002366

Striker Plate

$

$

Not available

20

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

21

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

22

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

23

Husqvarna 603000074

Screw, 1/4-20 X 2.00 Hex-Head Cap

$

$

Not available

24

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

25

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

26

Husqvarna 603002352

Screw, 5/16-18 X 1.75 Hex-Head Cap

$

$

Not available
