HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Carburetor Assembly - FE290 Parts Diagram

4x2 Utility Vehicle

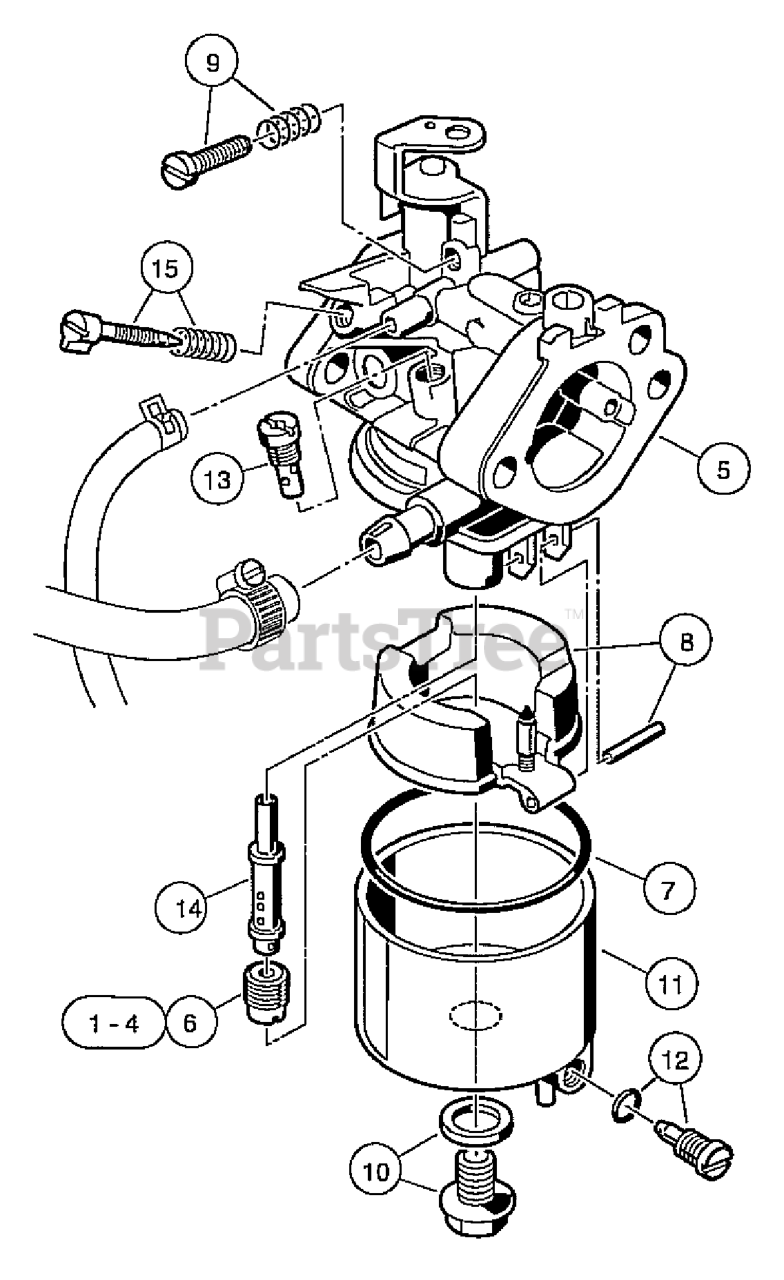

Carburetor Assembly - FE290 Parts Diagram

  • Title

1-4

Husqvarna 603002097

JET, ALTITUDE OHV
(Superseded to 603003093)

$

$

Not available

1-4

Husqvarna 603002098

JET, ALTITUDE OHV
(Superseded to 603003094)

$

$

Not available

1-4

Husqvarna 603002099

JET, ALTITUDE OHV
(Superseded to 603003095)

$

$

Not available

1-4

Husqvarna 603002100

JET, ALTITUDE OHV
(Superseded to 603003096)

$

$

Not available

5

Husqvarna 603002224

CARBURETOR ASSY, FE290D
(Superseded to 603003218)

Note: (includes Items 6 through 15)

$

$

Not available

6

Husqvarna 603000467

JET, HIGH ALTITUDE OHV

$

$

Not available

7

Husqvarna 603000297

GASKET, CARB. BOWL OHV

$

$

Not available

8

Husqvarna 603000319

FLOAT ASSEMBLY

$

$

Not available

9

Husqvarna 603000325

SCREW ASSEMBLY

$

$

Not available

10

Husqvarna 603000361

BOLT

$

$

Not available

11

Husqvarna 603000409

CHAMBER ASSEMBLY - FLOAT

Note: (Includes item 12)

$

$

Not available

12

Husqvarna 603000324

SCREW ASSEMBLY

$

$

Not available

13

Husqvarna 603002250

JET, #40 PILOT
(Superseded to 603003242)

$

$

Not available

14

Husqvarna 603002251

NOZZLE, MAIN
(Superseded to 603003243)

$

$

Not available

15

Assembly, Pilot Air Screw

$

$

Not available
