HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Carburetor Installation - FE290 Parts Diagram

4x2 Utility Vehicle

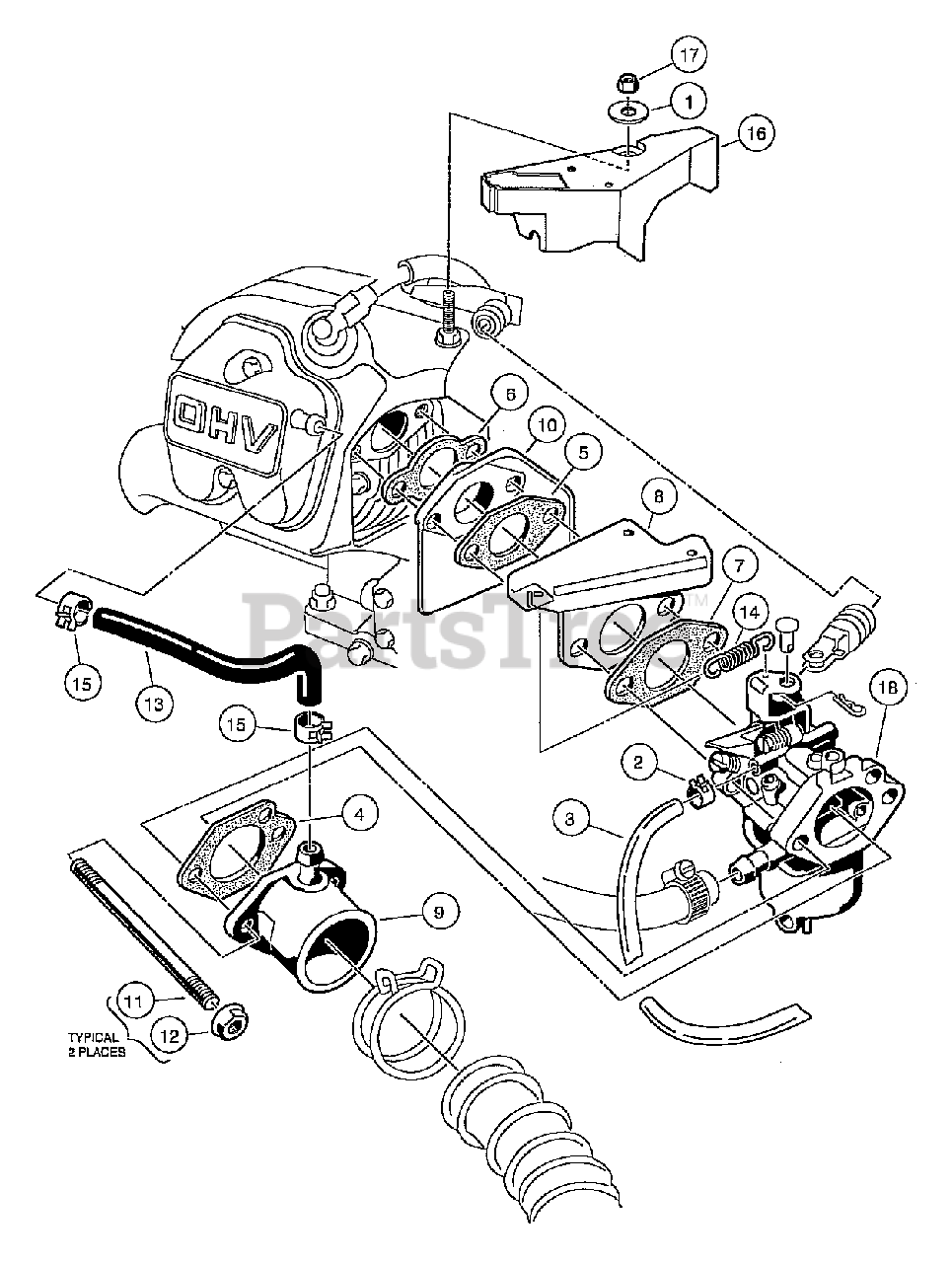

Carburetor Installation - FE290 Parts Diagram

  • Title

1

Husqvarna 603000127

Washer, 5/16 Flat

$

$

Not available

2

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

3

Husqvarna 603000240

Fuel Line

Note: (available by the foot)

$

$

Not available

4

Husqvarna 603000298

Gasket, Garb To Intake Manifold

$

$

Not available

5

Husqvarna 603002104

Gasket, Insulator
(Superseded to 603003100)

$

$

Not available

6

Husqvarna 603000299

Gasket, Engine To Insulator

$

$

Not available

7

Husqvarna 603000300

Gasket, Sprg Brkt To Garb OHV

$

$

Not available

8

Husqvarna 603000302

Bracket, Throttle Spring Return

$

$

Not available

9

Husqvarna 603000317

Pipe, Intake Manifold

$

$

Not available

10

Husqvarna 603000470

Insulator, Carburetor

$

$

Not available

11

Husqvarna 603000472

Stud, M6-1.00 Two-Ended

$

$

Not available

12

Husqvarna 603000341

Nut

$

$

Not available

13

Husqvarna 603000352

Tube, Crankcase Vent

$

$

Not available

14

Husqvarna 603000358

Spring, Throttle Return

$

$

Not available

15

Husqvarna 603000411

Clamp

$

$

Not available

16

Husqvarna 603002190

Shield, Governor
(Superseded to 603003184)

$

$

Not available

17

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

18

Husqvarna 603002224

Carburetor Assembly, FE290D
(Superseded to 603003218)

Note: (includes items 19 through 28)

$

$

Not available

19

Husqvarna 603000467

Jet, Altitude, # 82

$

$

Not available

20

Husqvarna 603000297

Gasket, Carburetor Bowl OHV

$

$

Not available

21

Husqvarna 603000319

Float Assembly

$

$

Not available

22

Husqvarna 603000325

Screw Assembly

$

$

Not available

23

Husqvarna 603000361

Bolt

$

$

Not available

24

Husqvarna 603000409

Chamber Assembly, Float

Note: (includes item 25)

$

$

Not available

25

Husqvarna 603000324

Screw Assembly

$

$

Not available

26

Husqvarna 603002250

Jet, #40 Pilot
(Superseded to 603003242)

$

$

Not available

27

Husqvarna 603002251

Nozzle, Main
(Superseded to 603003243)

$

$

Not available

28

Husqvarna N/A

Assembly, Pilot Air Screw

$

$

Not available
